Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater A/C Control Assembly C1

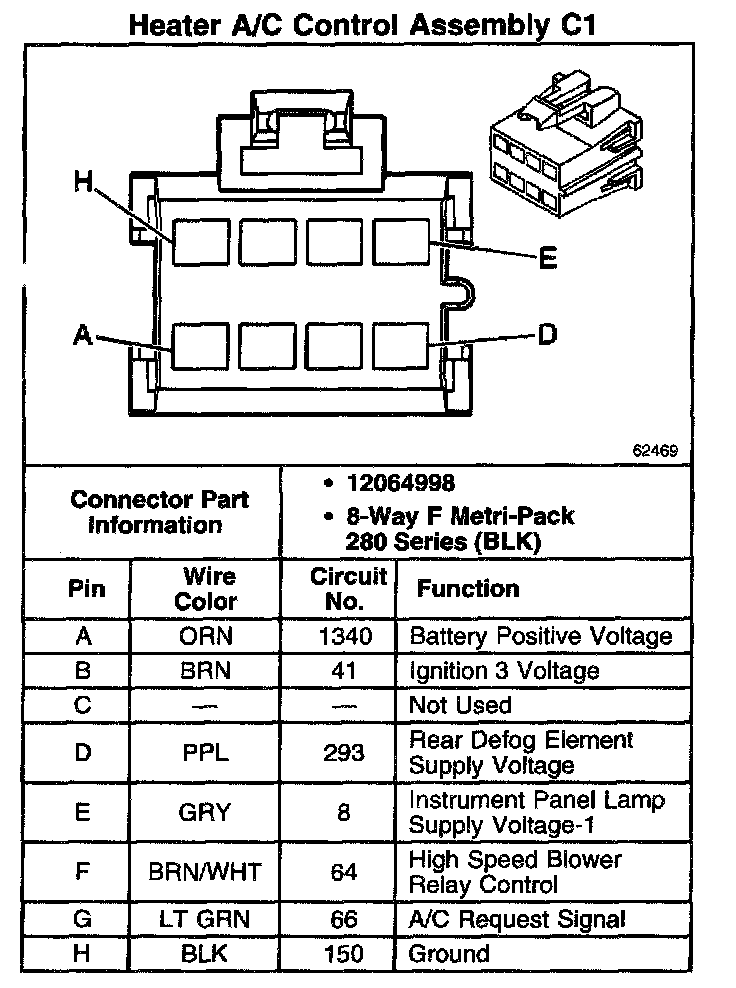

Heater A/C Control Assembly C1

Heater A/C Control Assembly C1:
