Home >> Chevrolet >> 2001 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Power Seat Cushion Air Control Module Connector C1

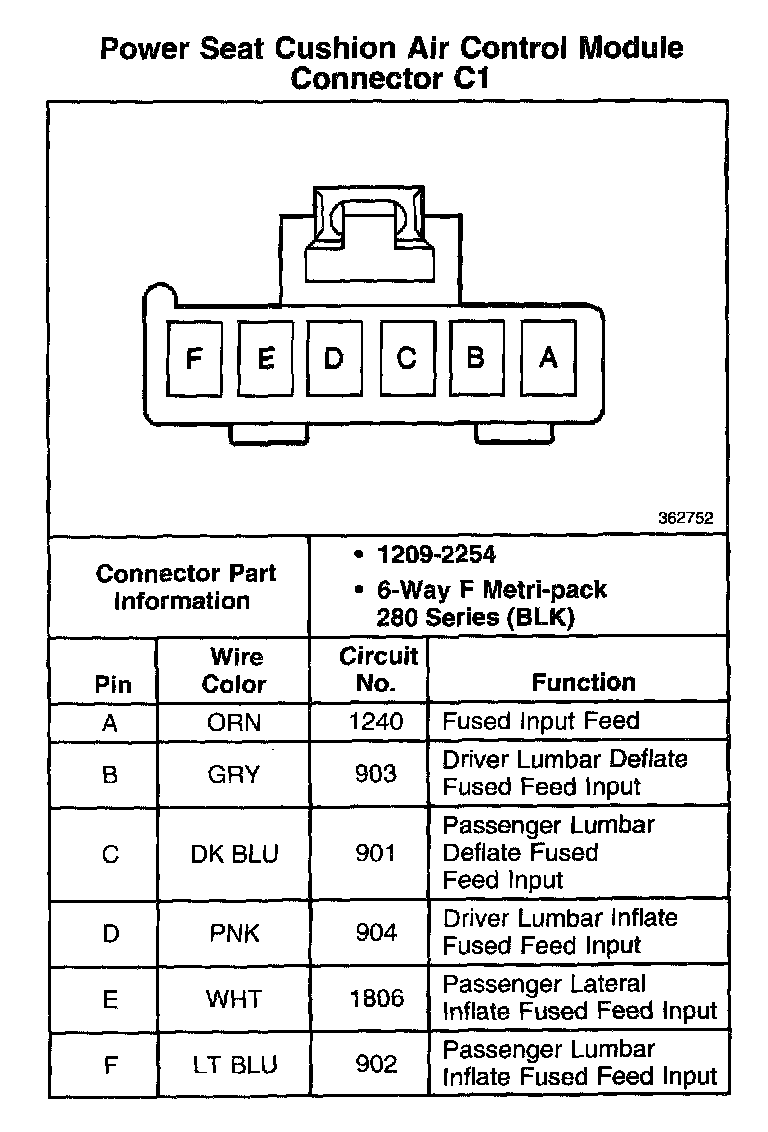

Power Seat Cushion Air Control Module Connector C1

Power Seat Cushion Air Control Module Connector C1:
