Home >> Chevrolet >> 2001 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Diagrams

Fuel Level Sensor: Diagrams

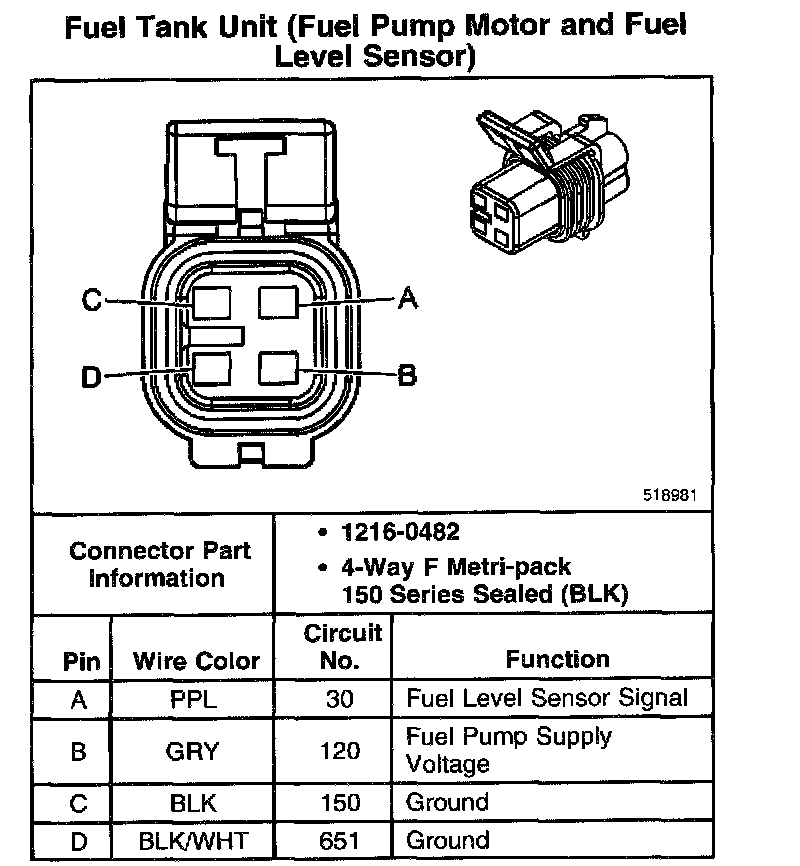

Fuel Tank Unit (Fuel Pump Motor And Fuel Level Sensor):
