Removal Procedure

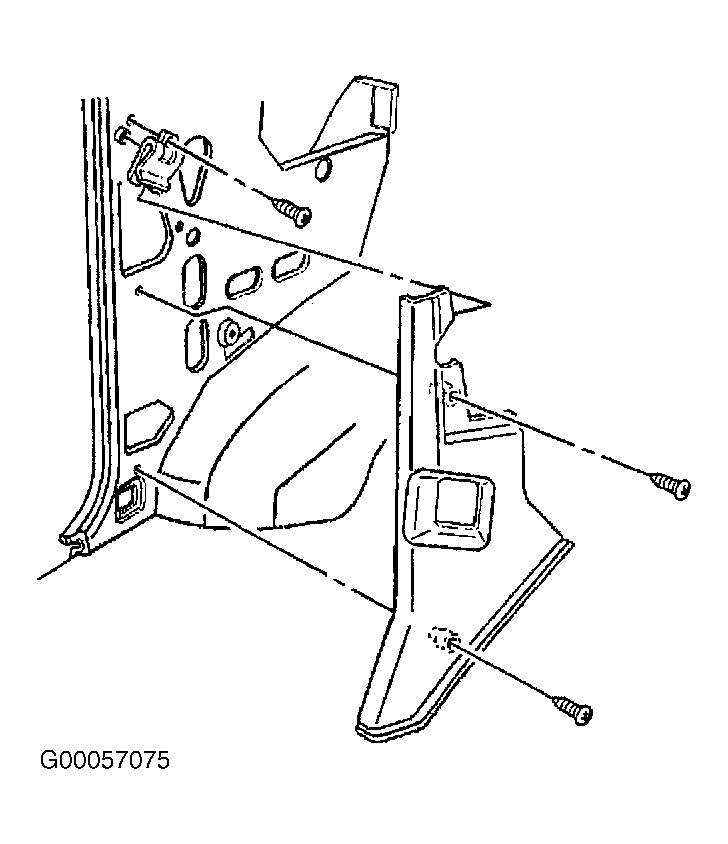

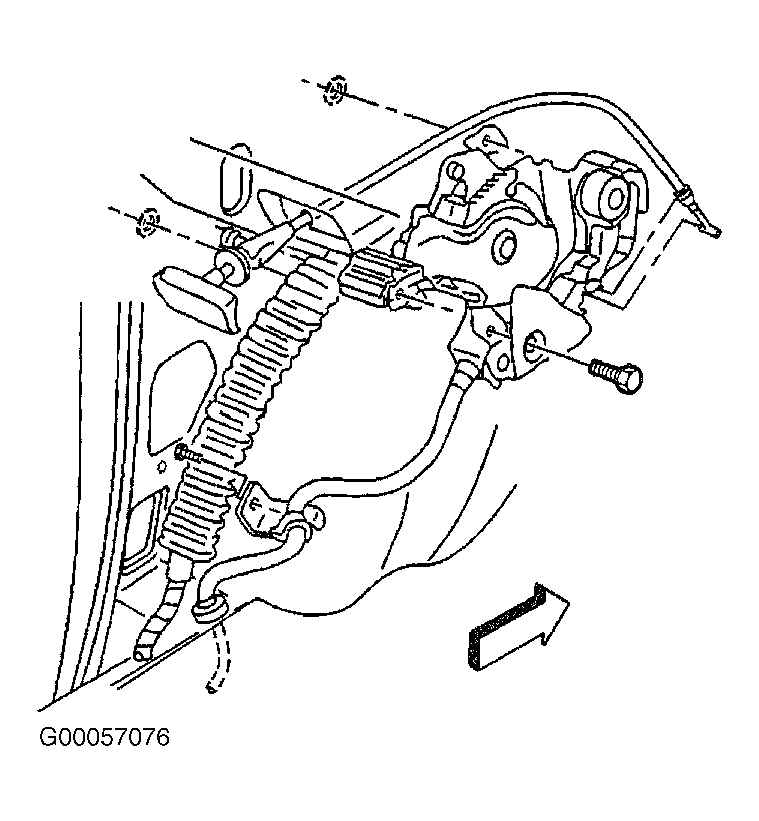

  1. Remove parking brake assembly. See Figure . Remove lower dash panel. See Figure .

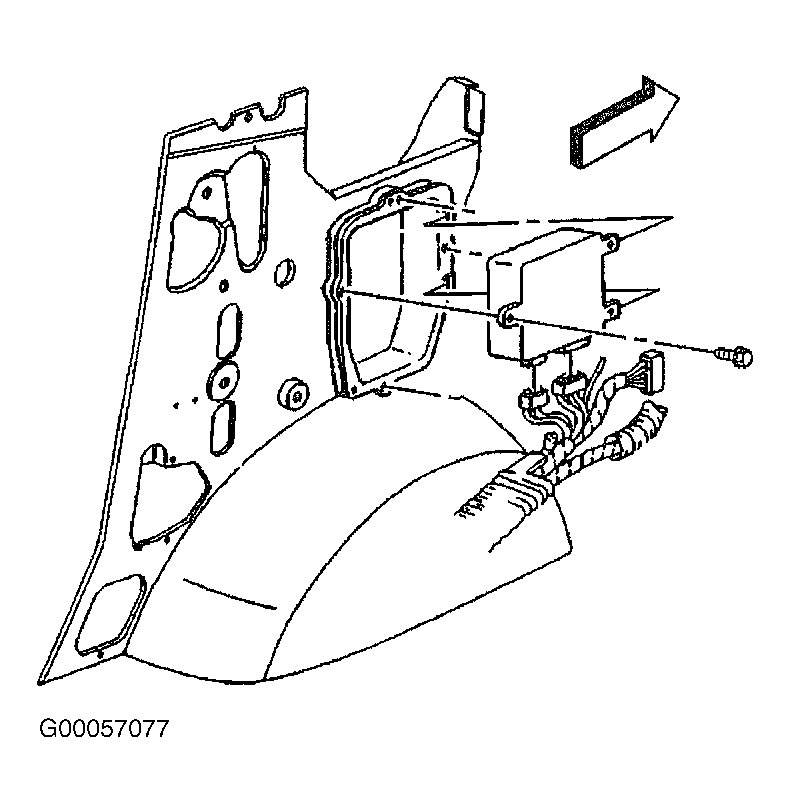

  2. Remove electrical connectors from control module. Remove mounting screws for control module. Remove control module from mounting bracket. See Figure .
