Home >> Chevrolet >> 2001 >> Astro Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

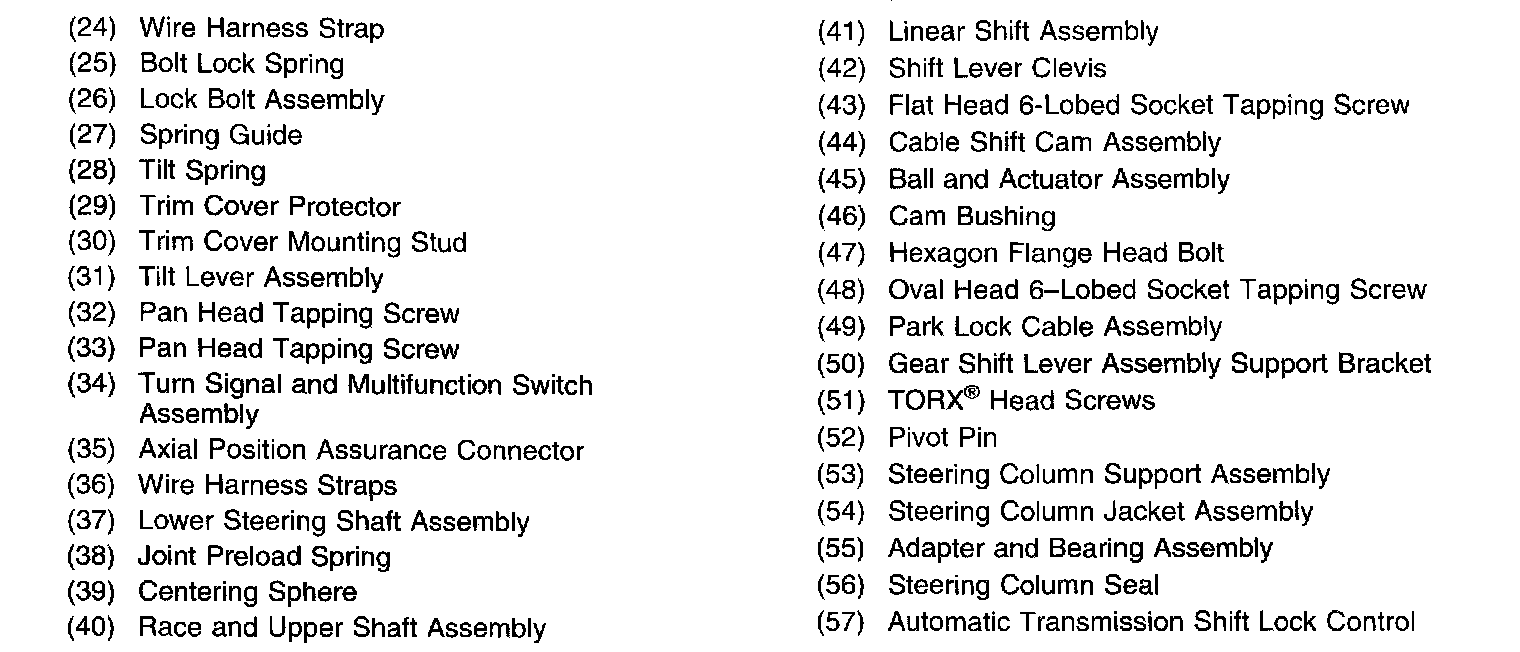

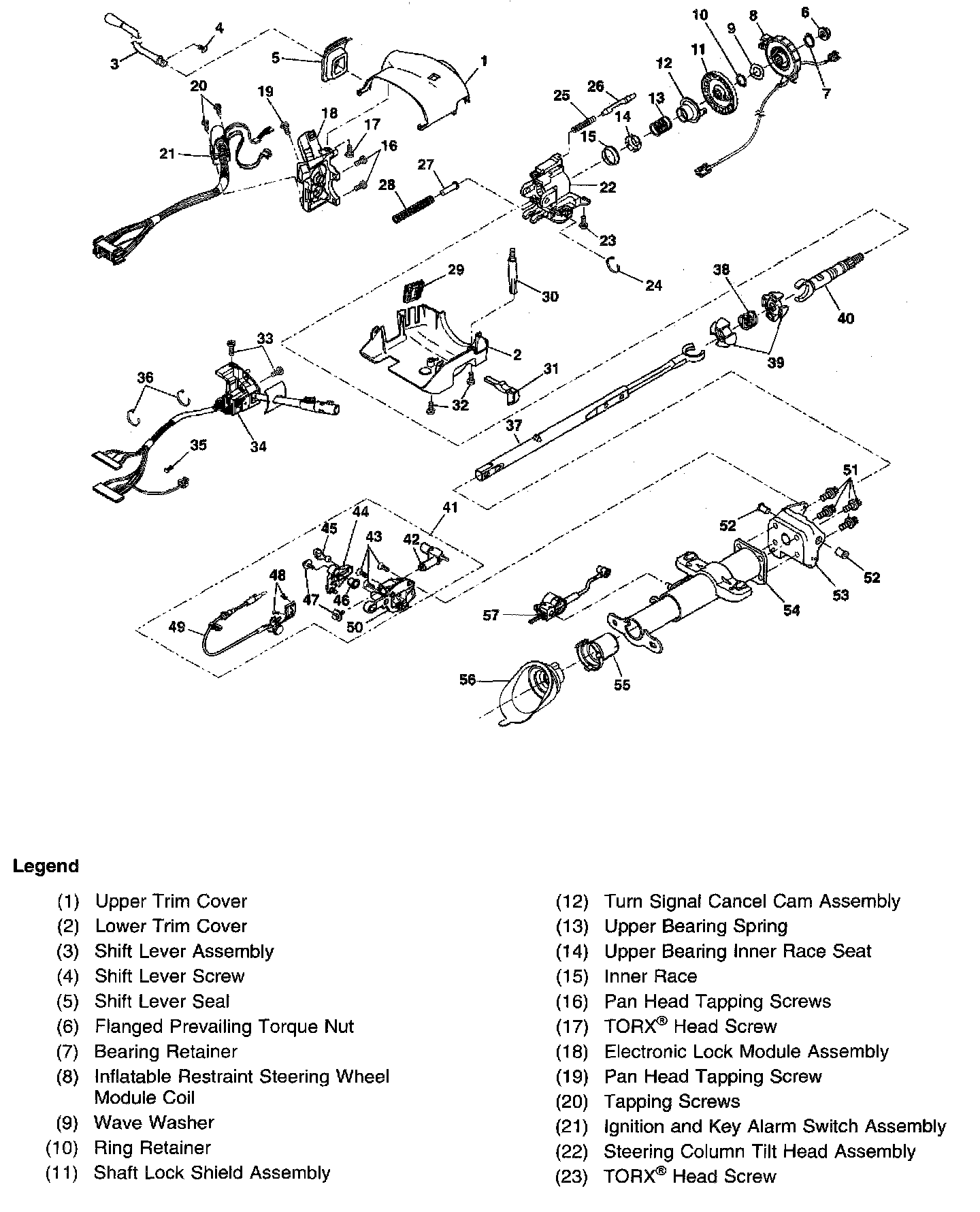

Steering Column Dissembled View Tilt Column





Part 1 of 2





Part 2 of 2
