Fuse Block
>>
Application and ID
>>
Fuse Block Application Table
Fuse Block Application Table

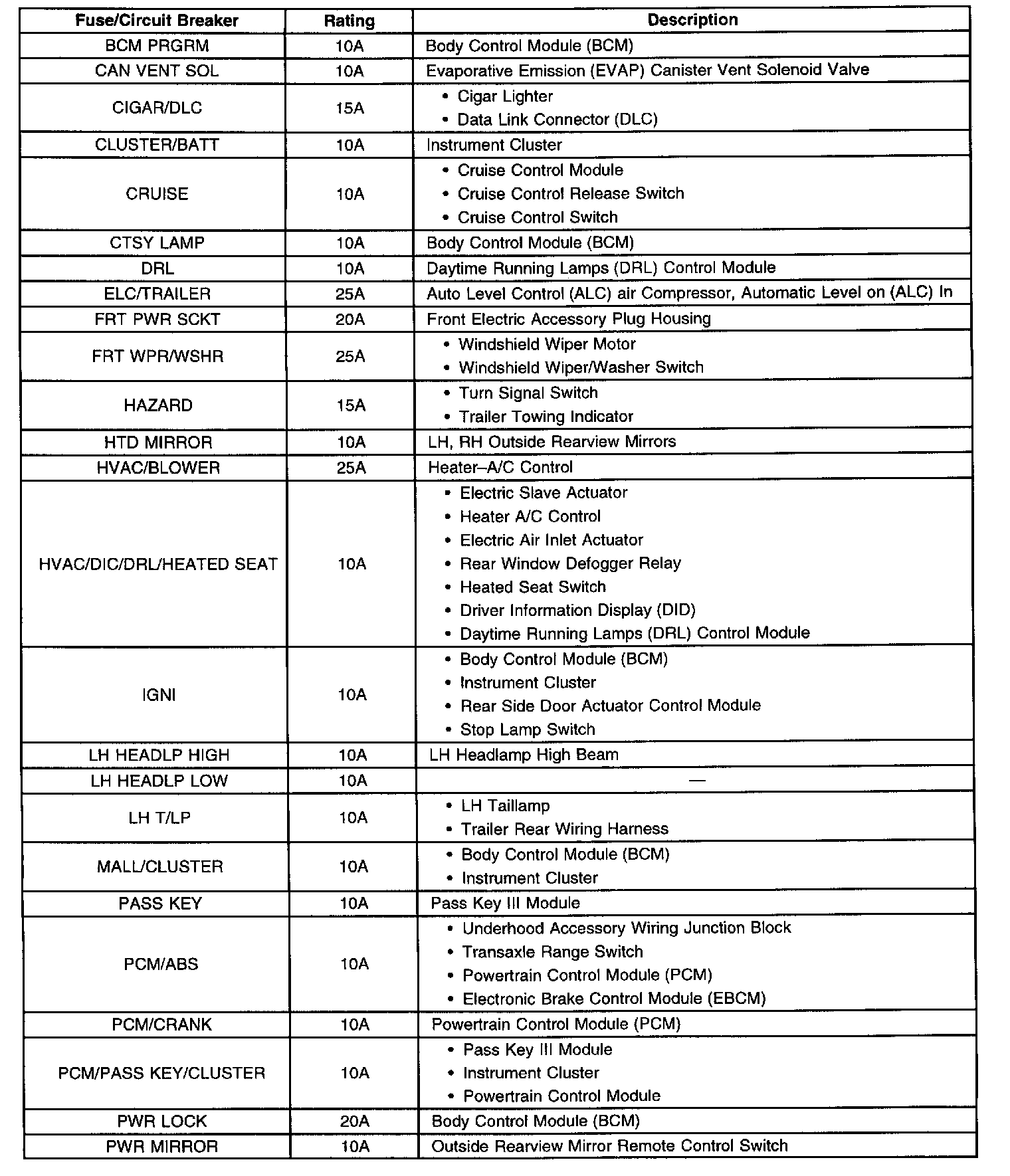

Fuse Block Application Table (Part 1 Of 2):

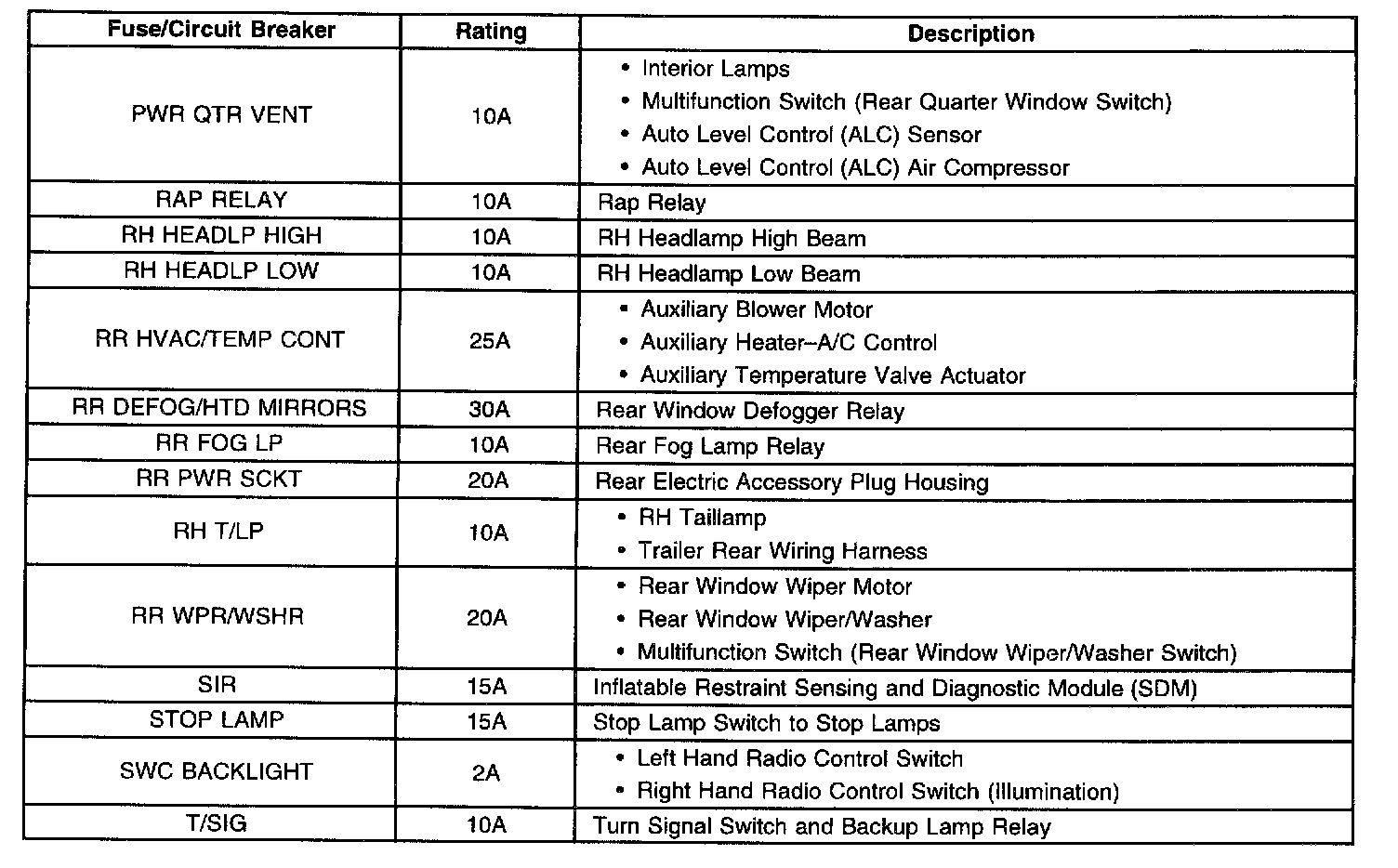

Fuse Block Application Table (Part 2 Of 2):
