Home >> Chevrolet >> 2000 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Engine Data Sensors

Engine Data Sensors

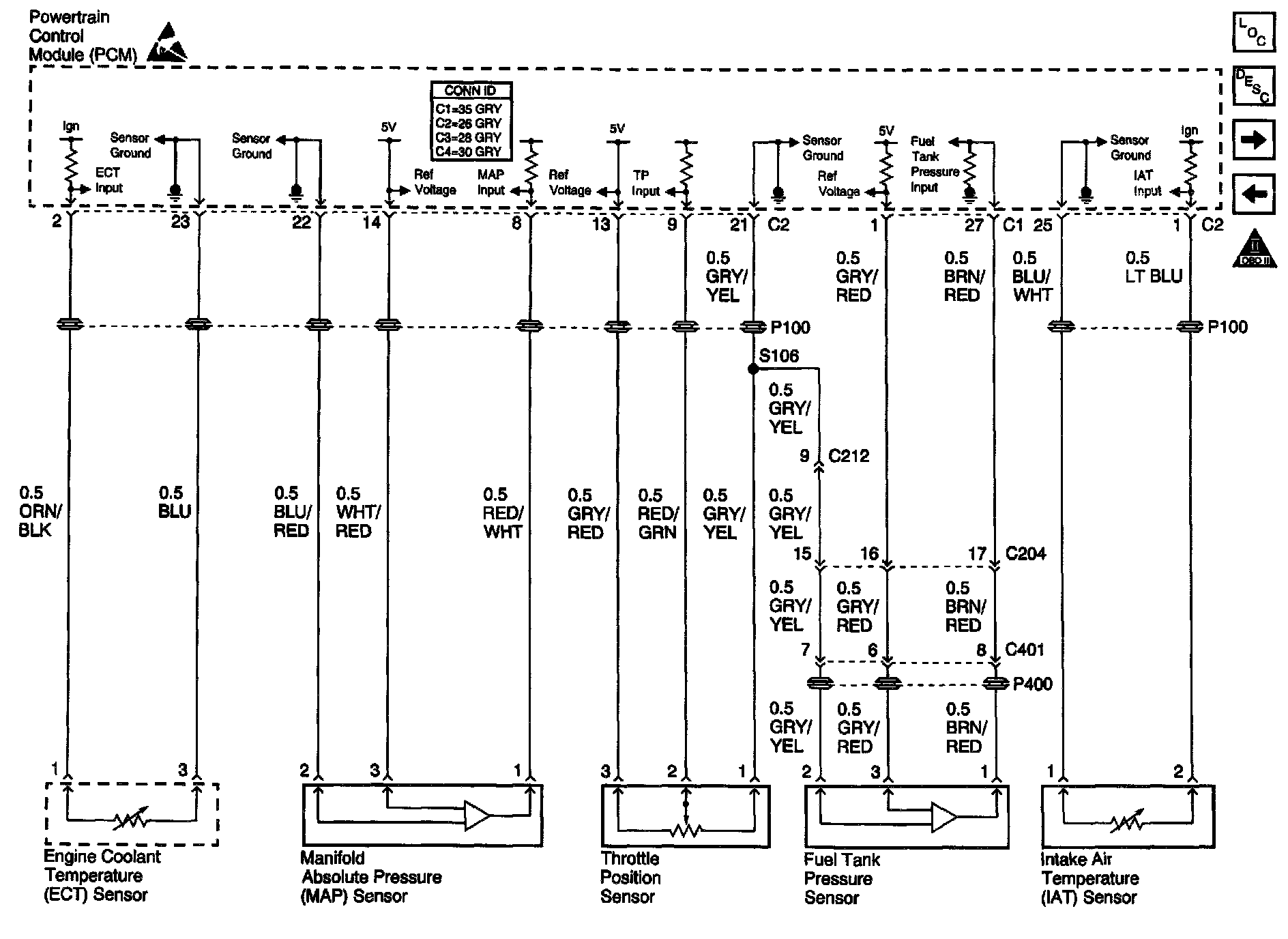

Engine Controls Schematics: Engine Data Sensors:
