Device Controls

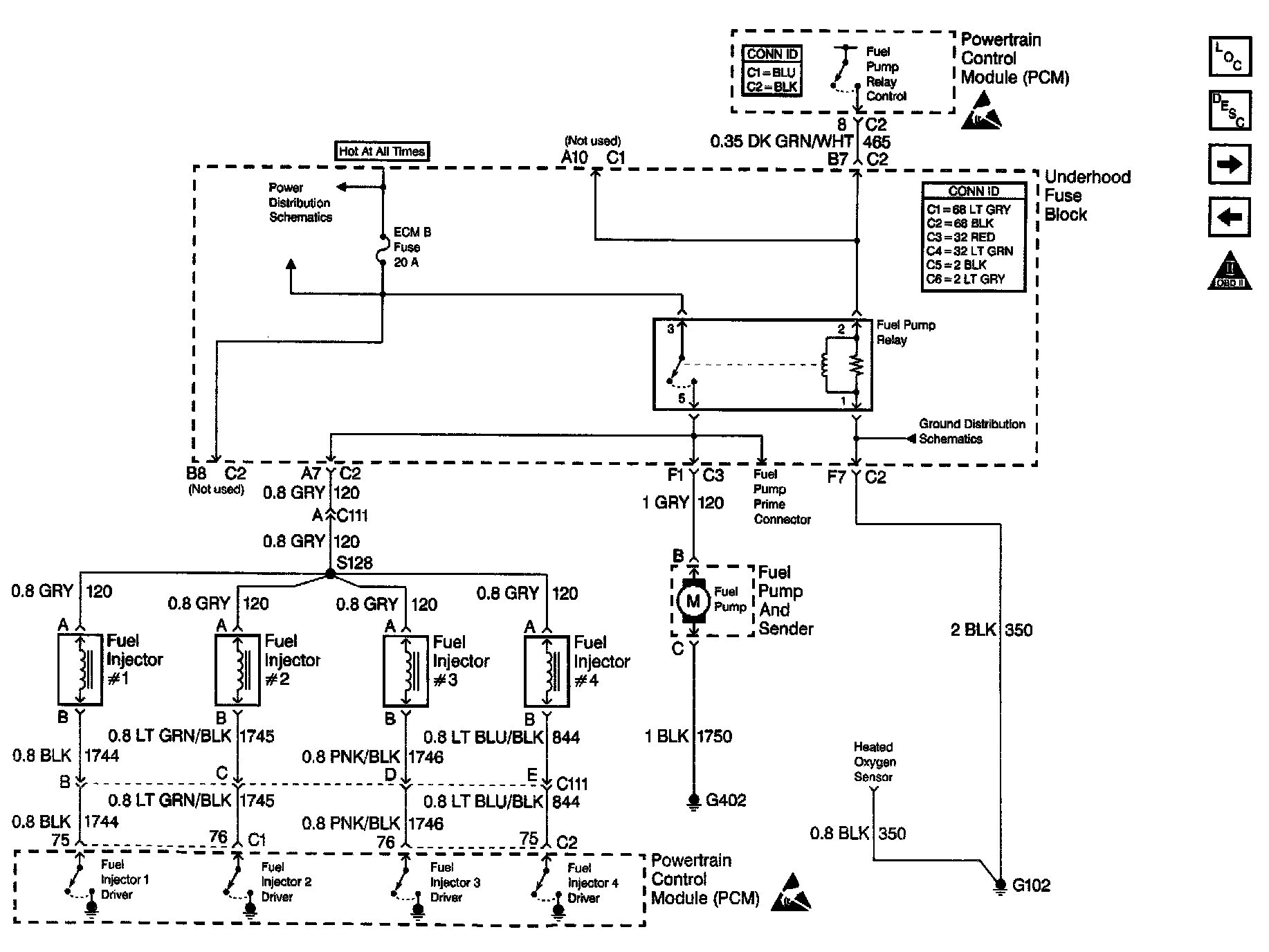

Engine Control Schematics: Fuel Injectors And Fuel Pump:



Engine Control Schematics: Fuel Pump Controls:
