Engine

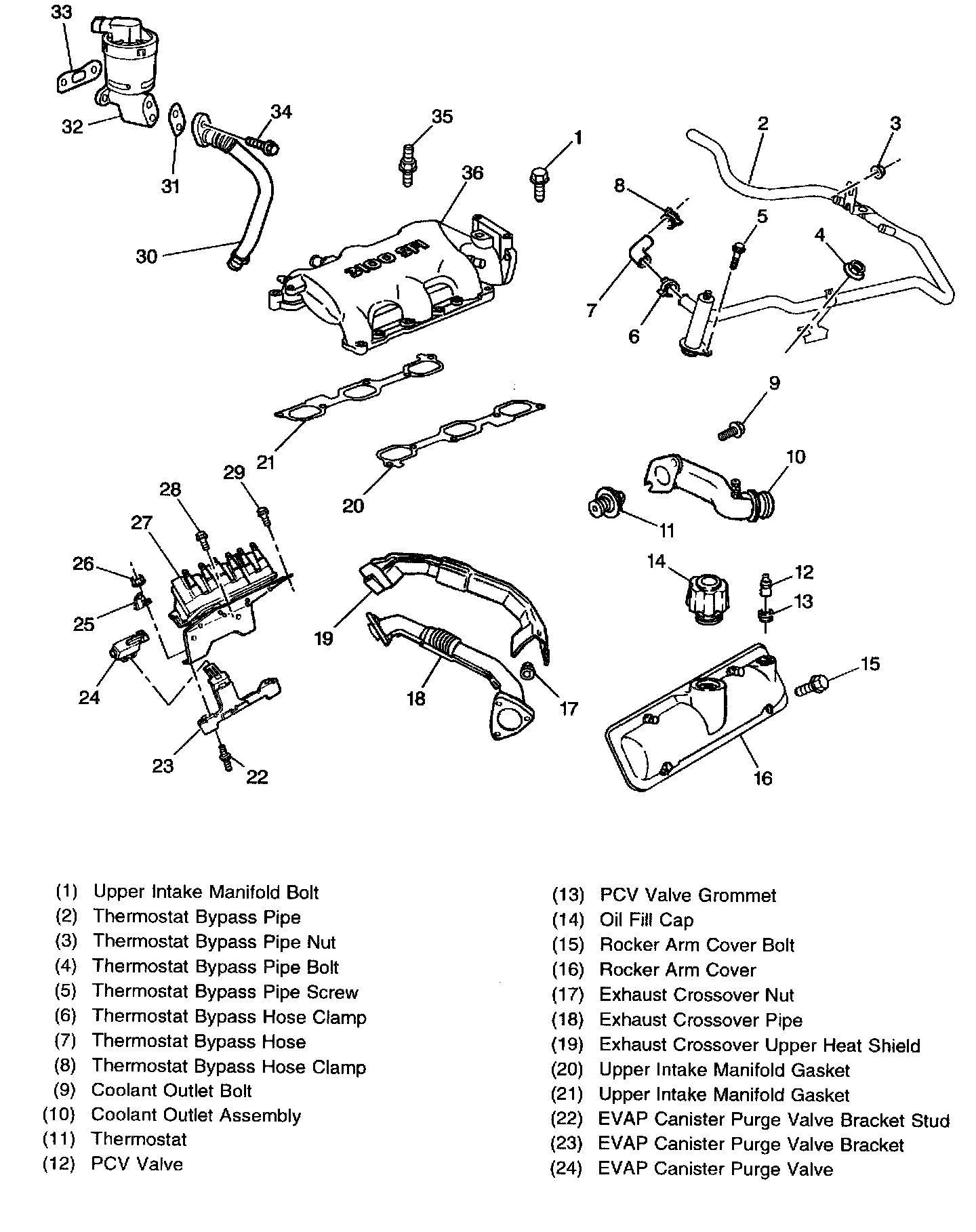

Lower Intake Manifold, Cylinder Head, and Components

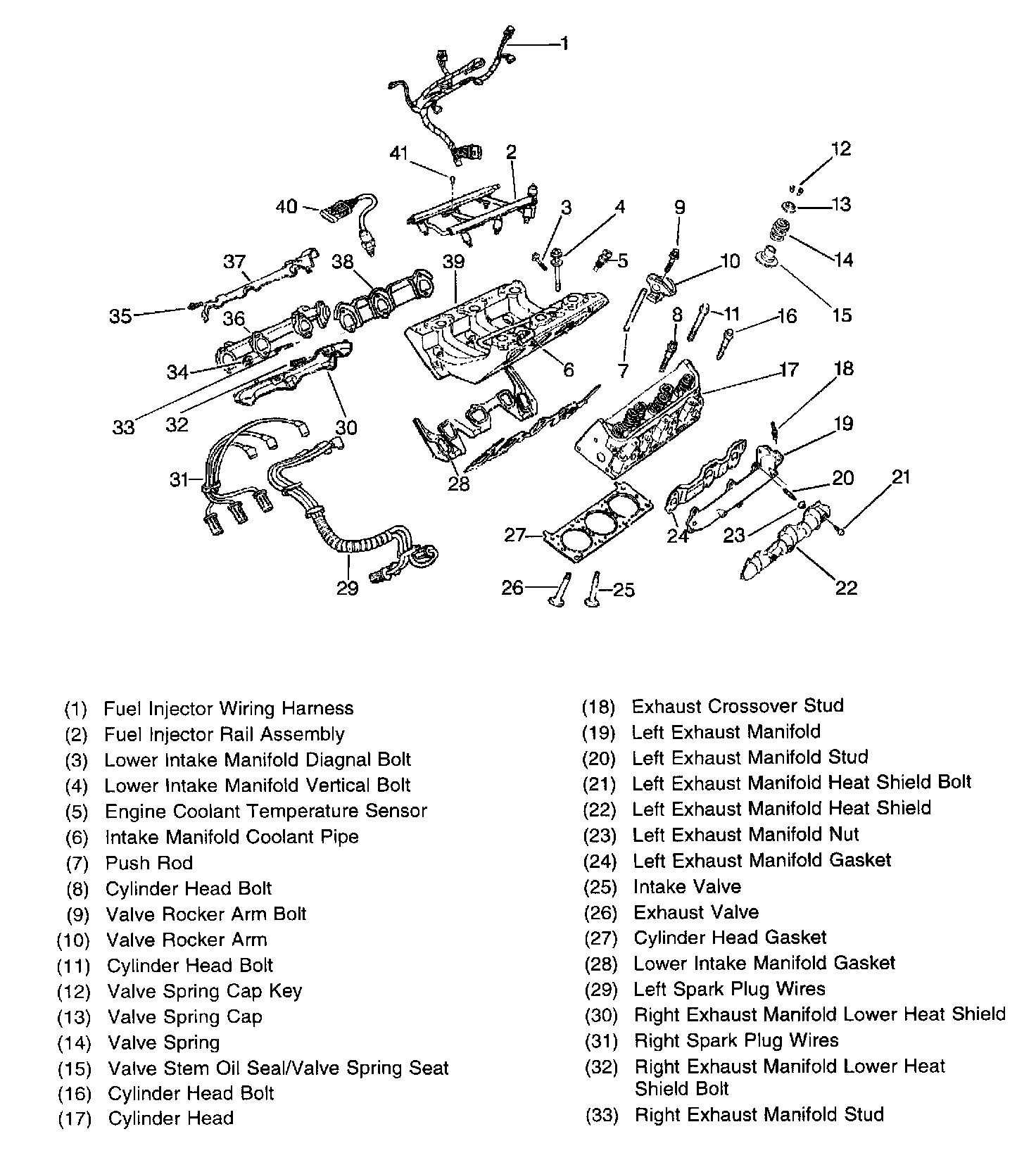

Lower Intake Manifold, Cylinder Head, and Components

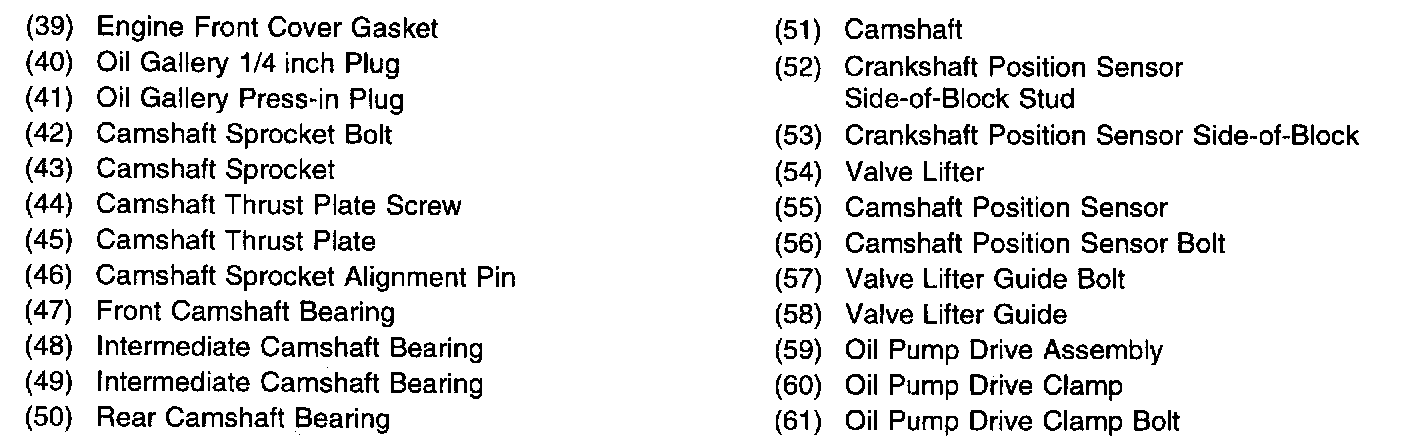

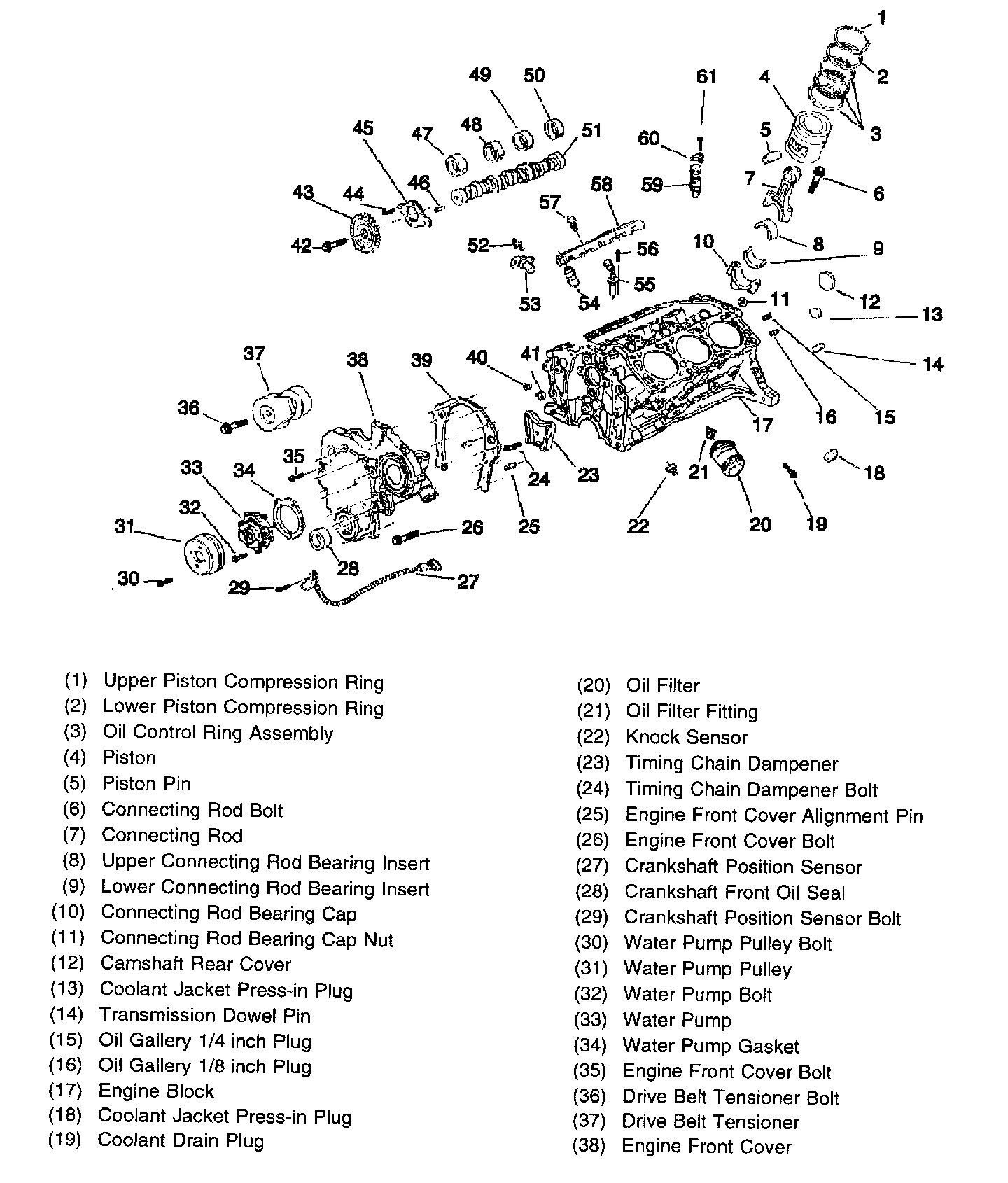

Engine Block and Components

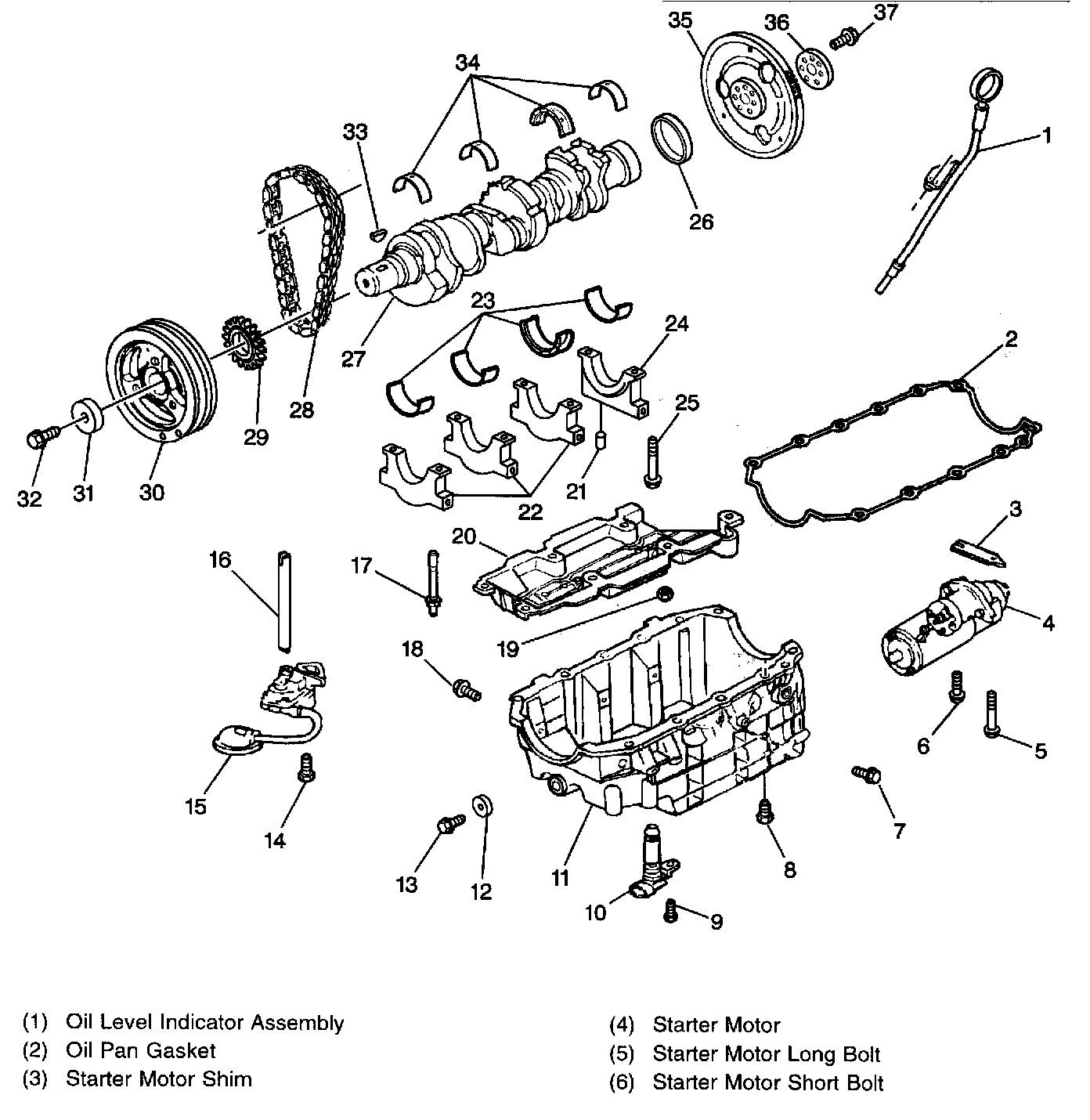

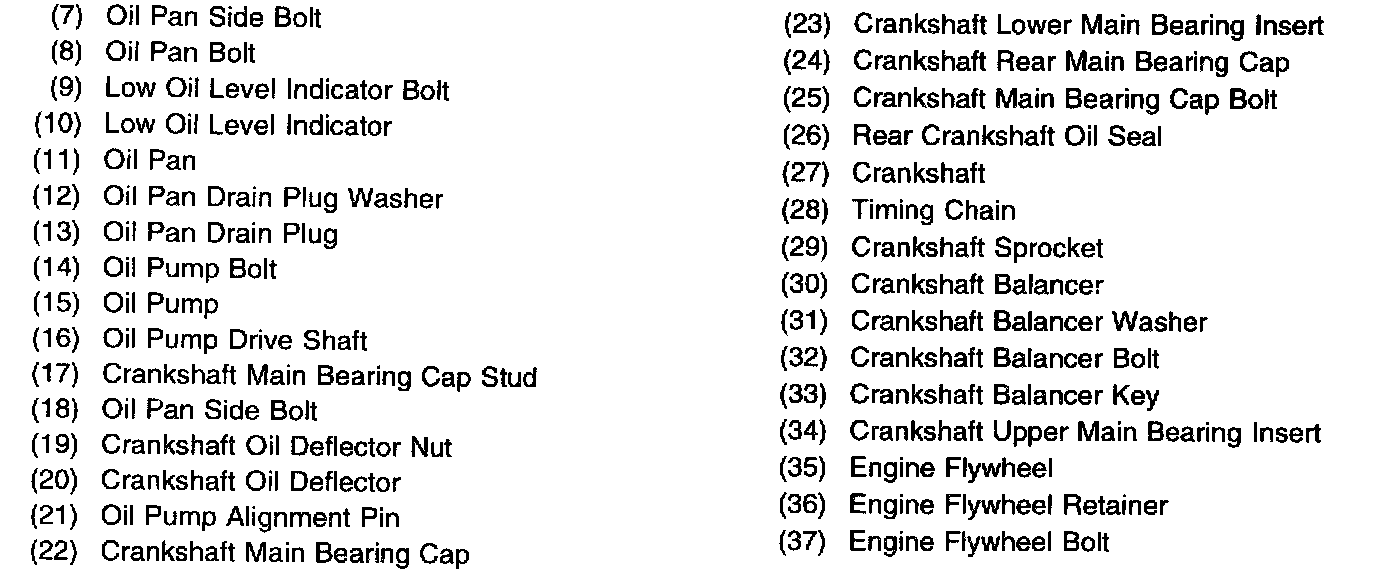

Crankshaft and Components
