Interior Lights

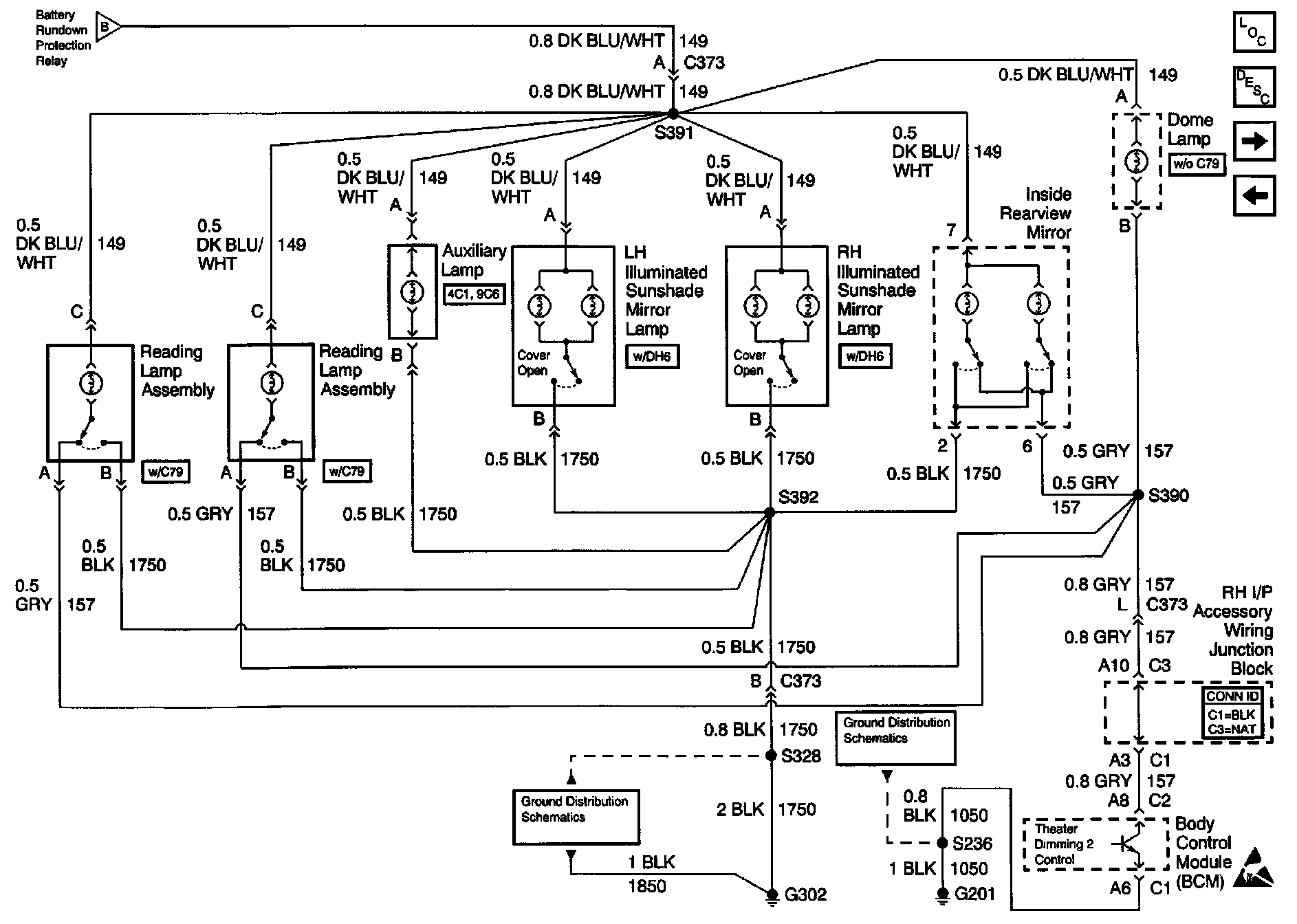

Body Control Module Schematics: Interior Lights (Part 1 Of 2):

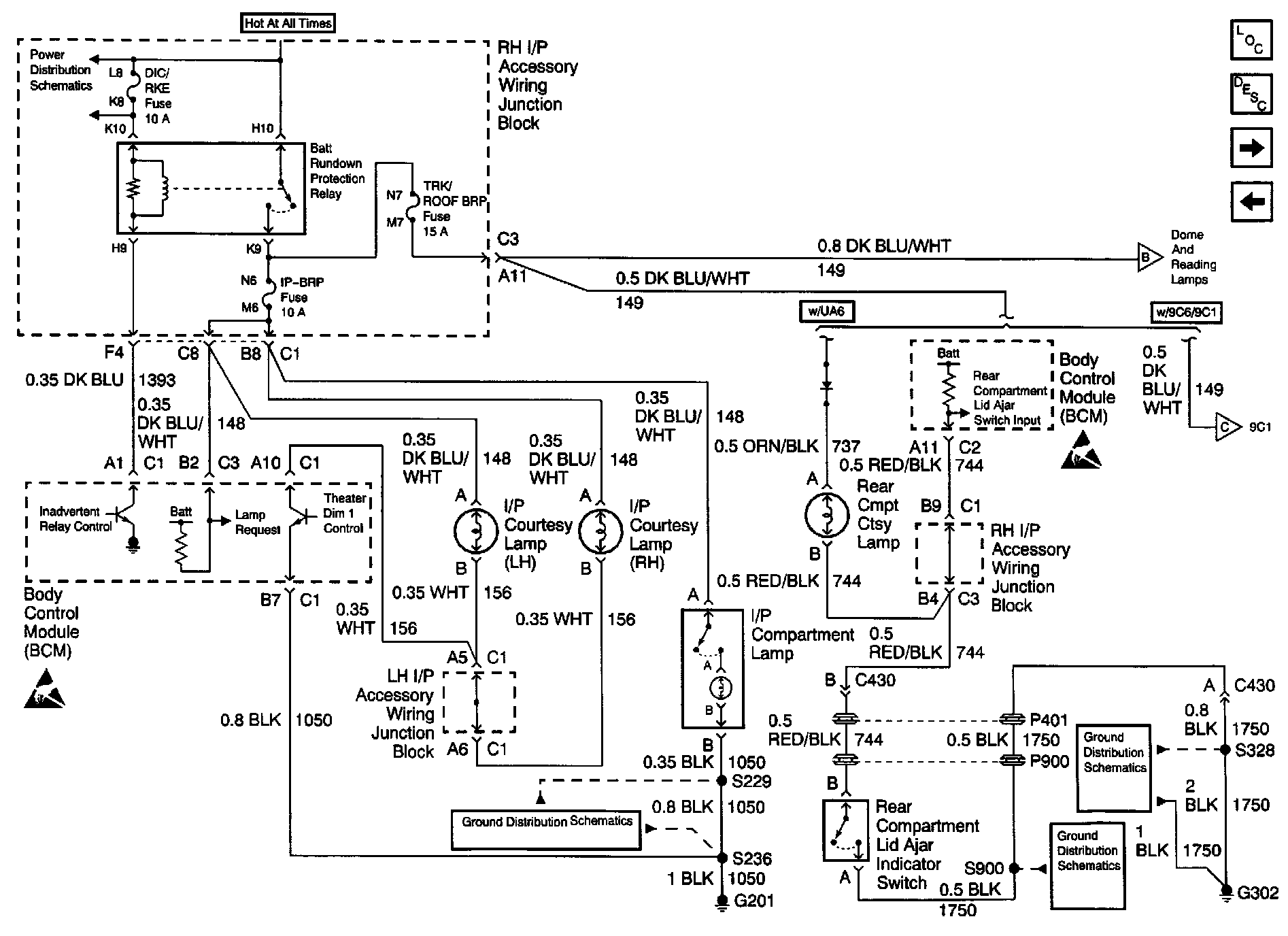

Body Control Module Schematics: Interior Lights (Part 2 of 2):
