Rear COMP Lid Release & Remote Control Door Lock Receiver

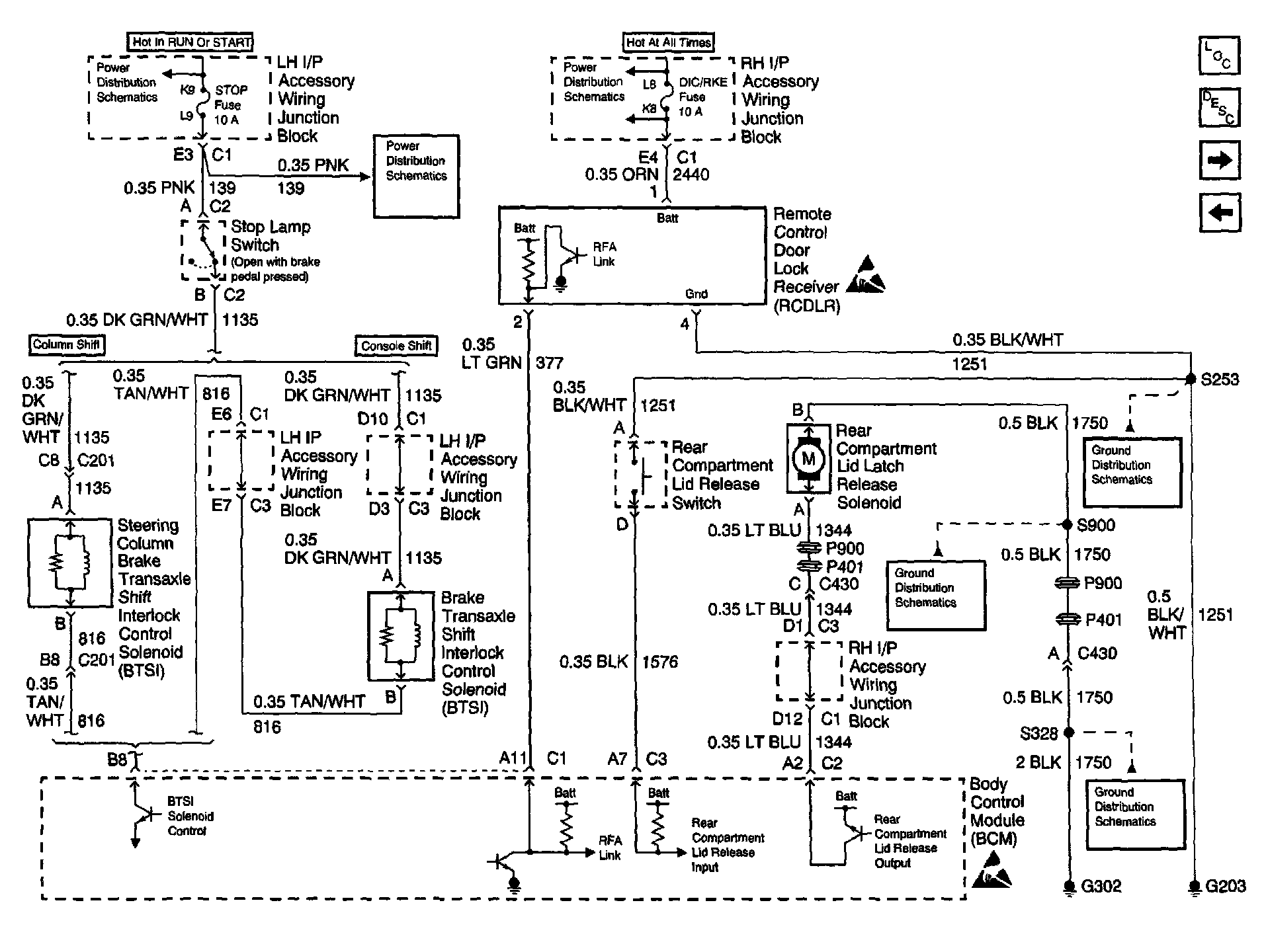

Body Control Module Schematics: Brake Transaxle Shift Interlock Control, Rear Compartment Lid Release And Remote Control Door Lock Receiver:
