Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

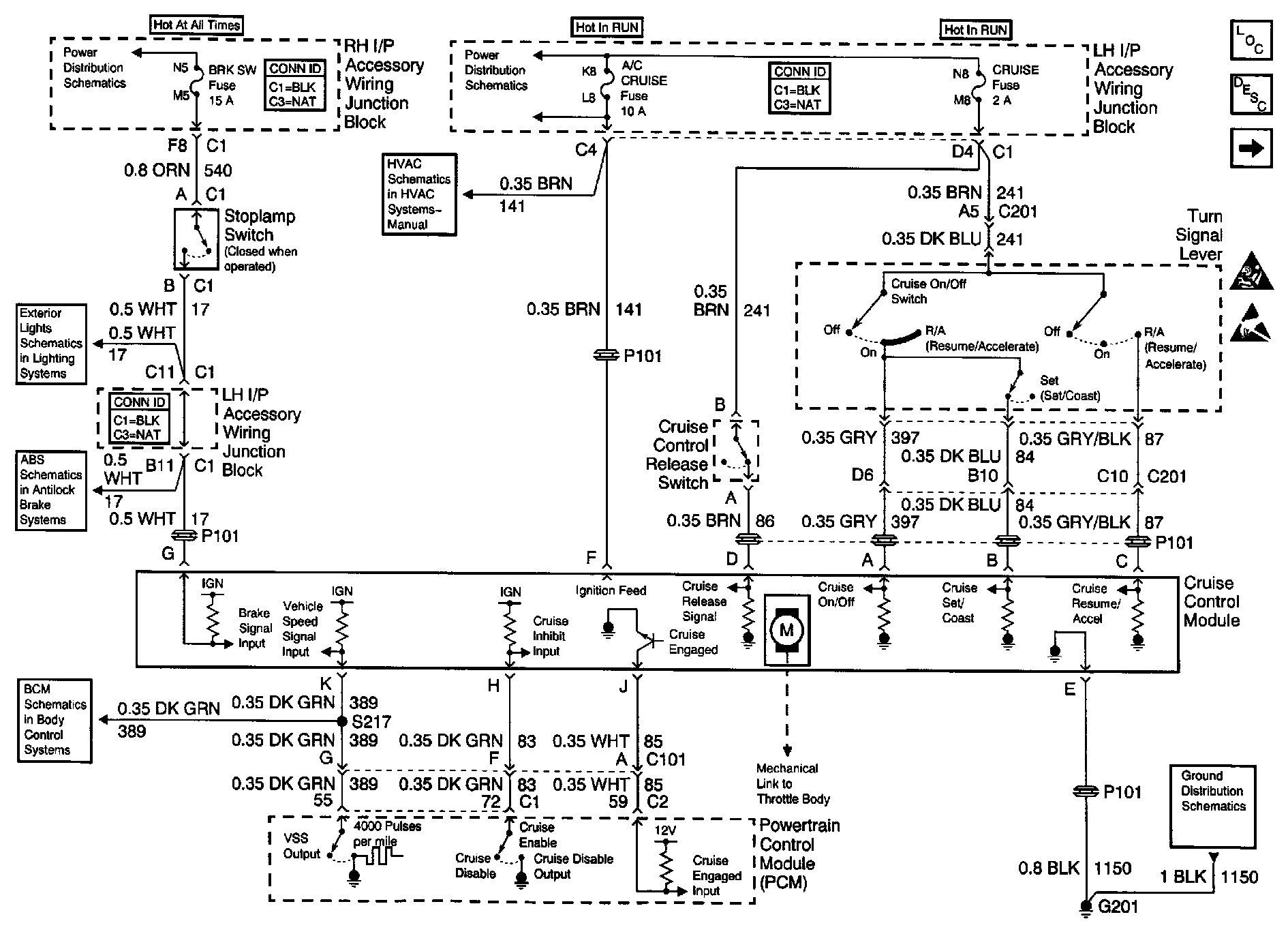

Cruise Control Schematics:
