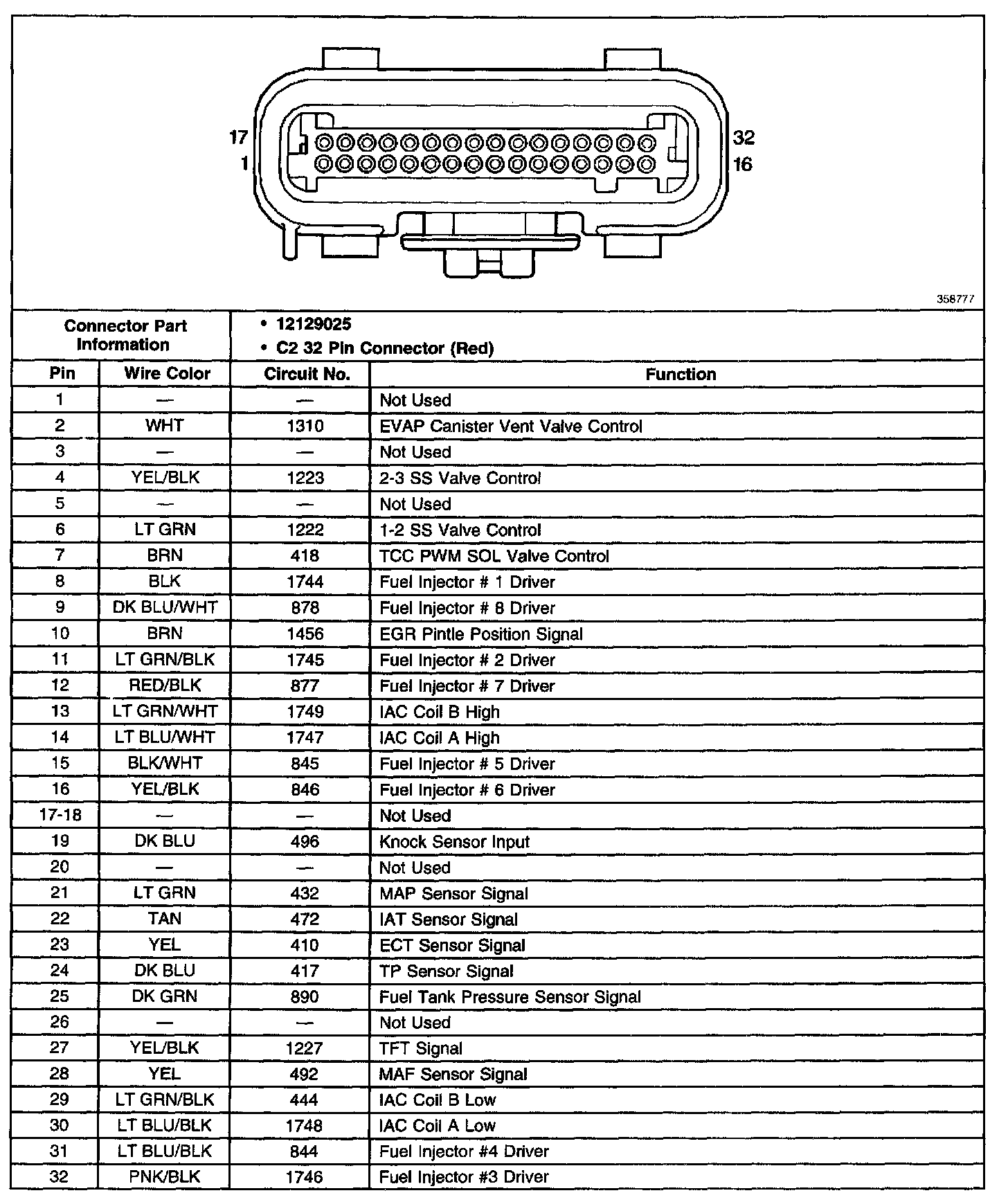

Home >> Chevrolet >> 2000 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2
