Home >> Chevrolet >> 2000 >> Express 1/2 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Inflatable Restraint Sensing and Diagnostic Module

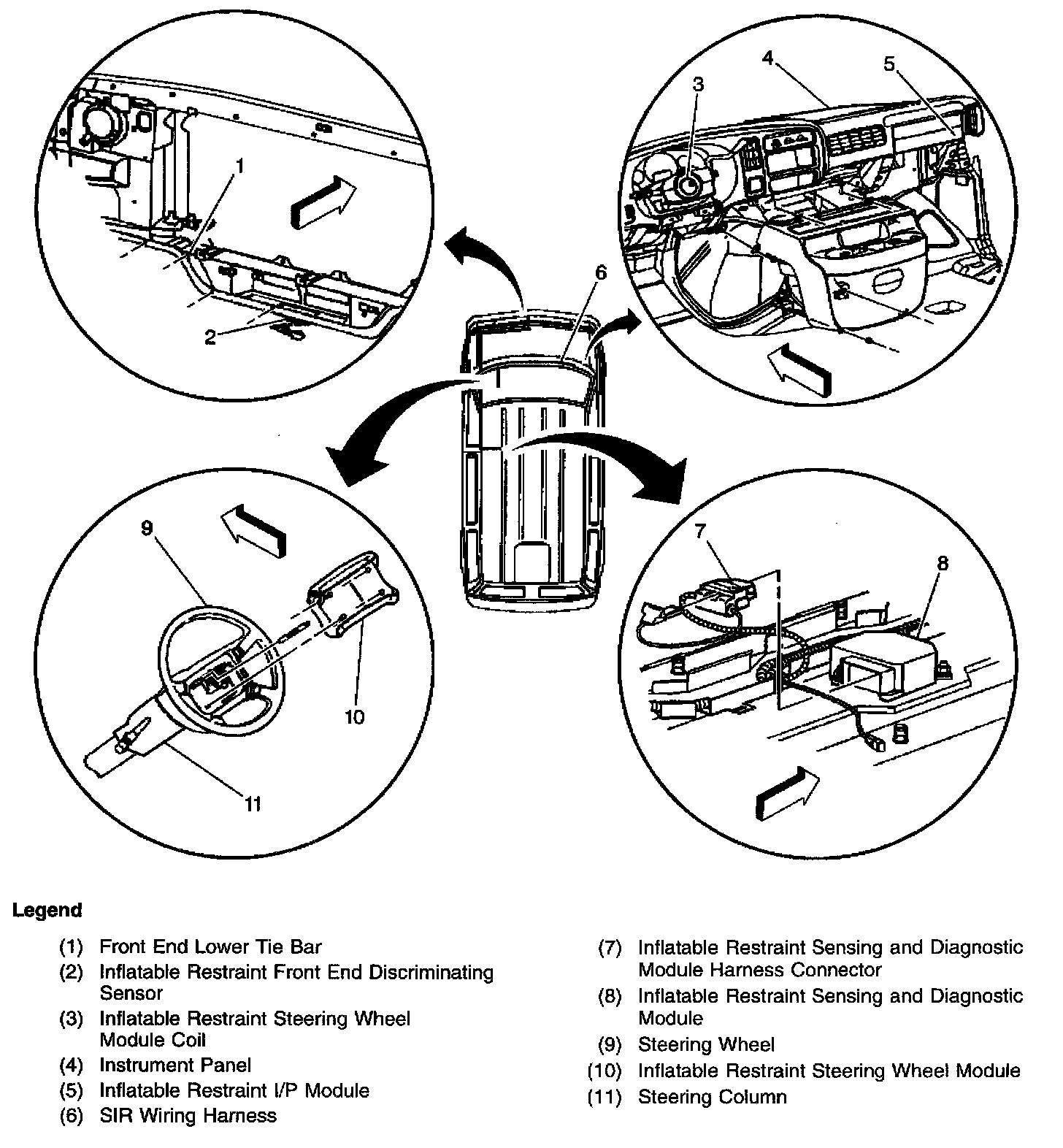

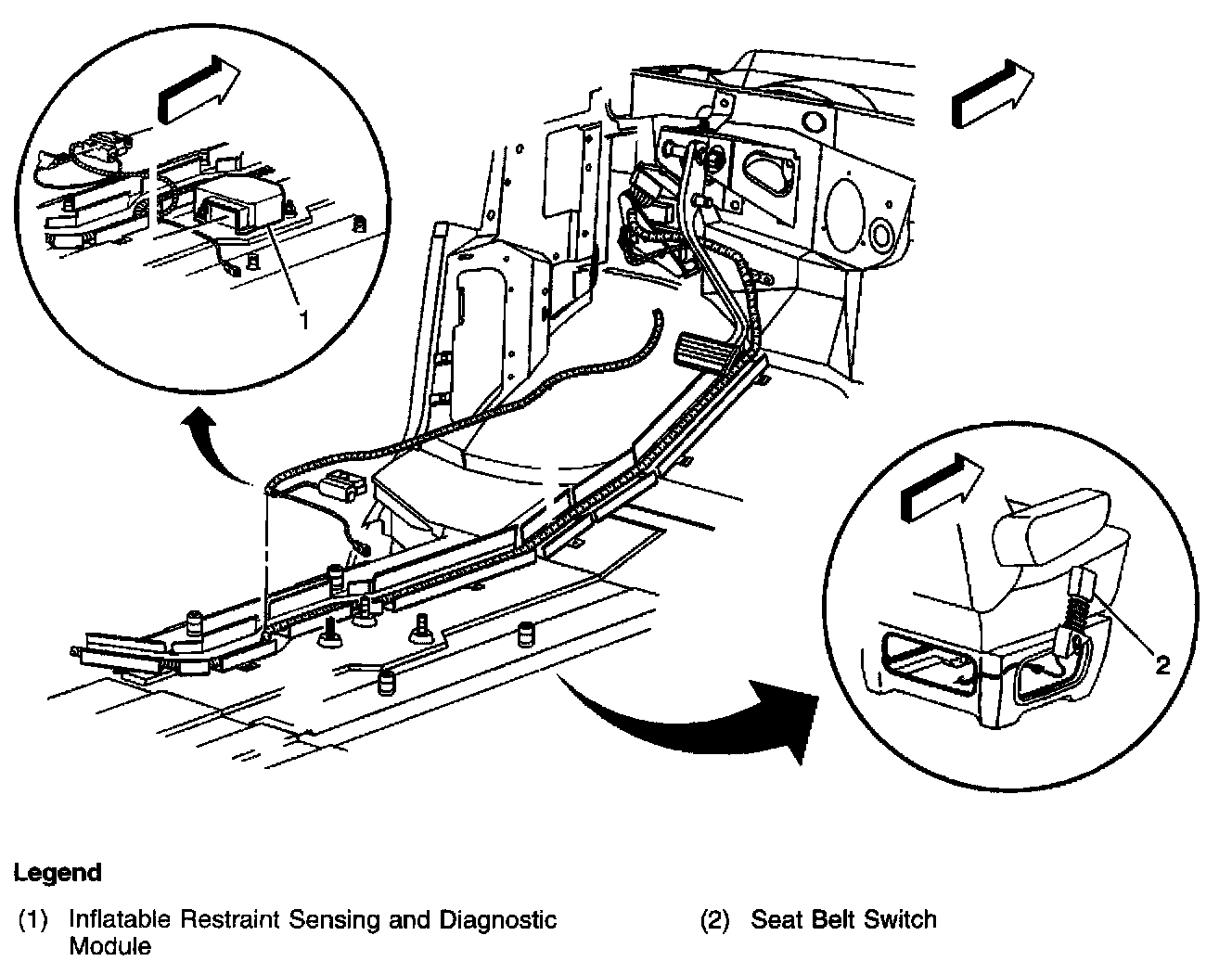

Inflatable Restraint Sensing and Diagnostic Module

Locations View:



Locations View:
