Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Export
>>
IP Fuse Block, Face View
IP Fuse Block, Face View
Face View:

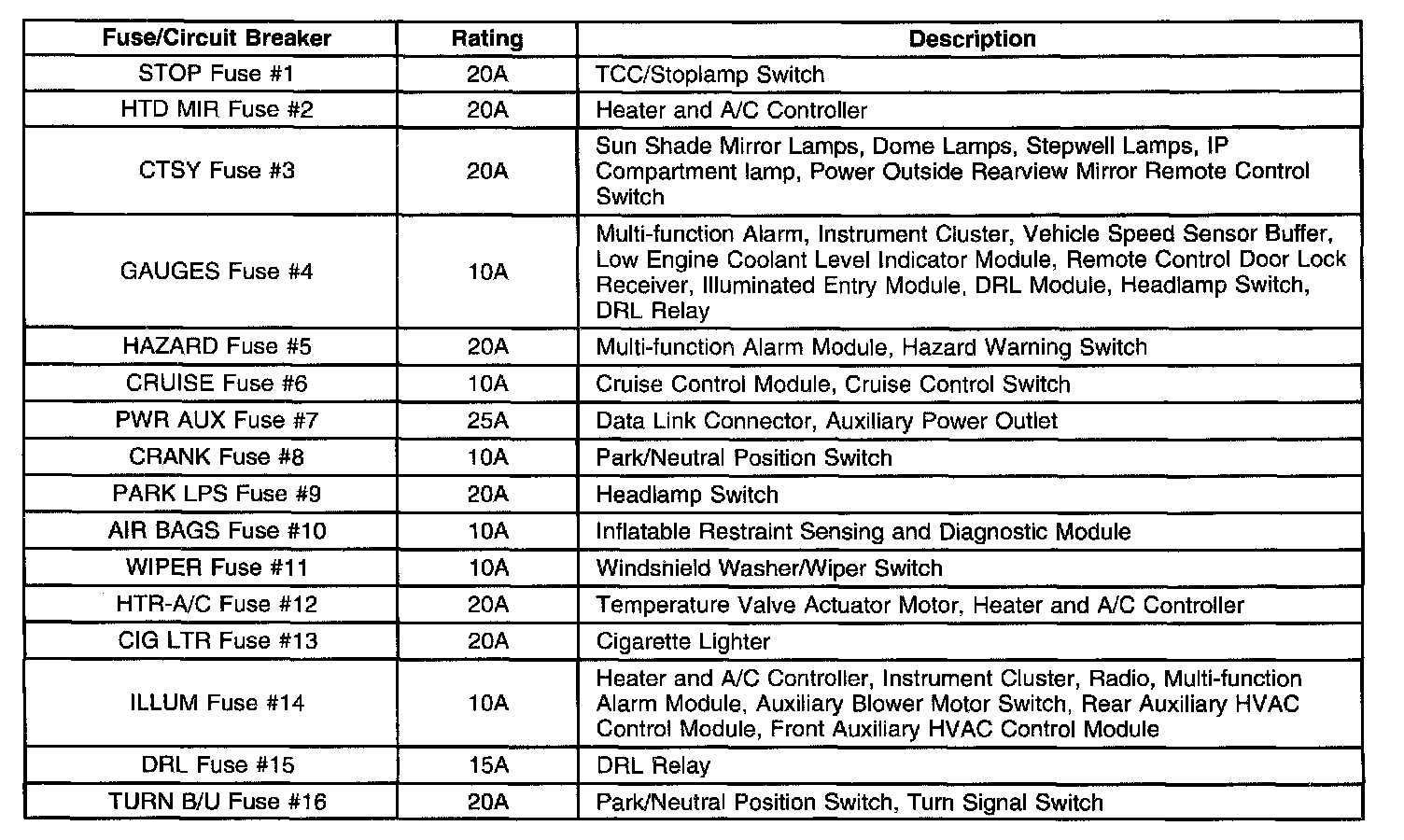

IP Fuse Block (Part 1 Of 2):

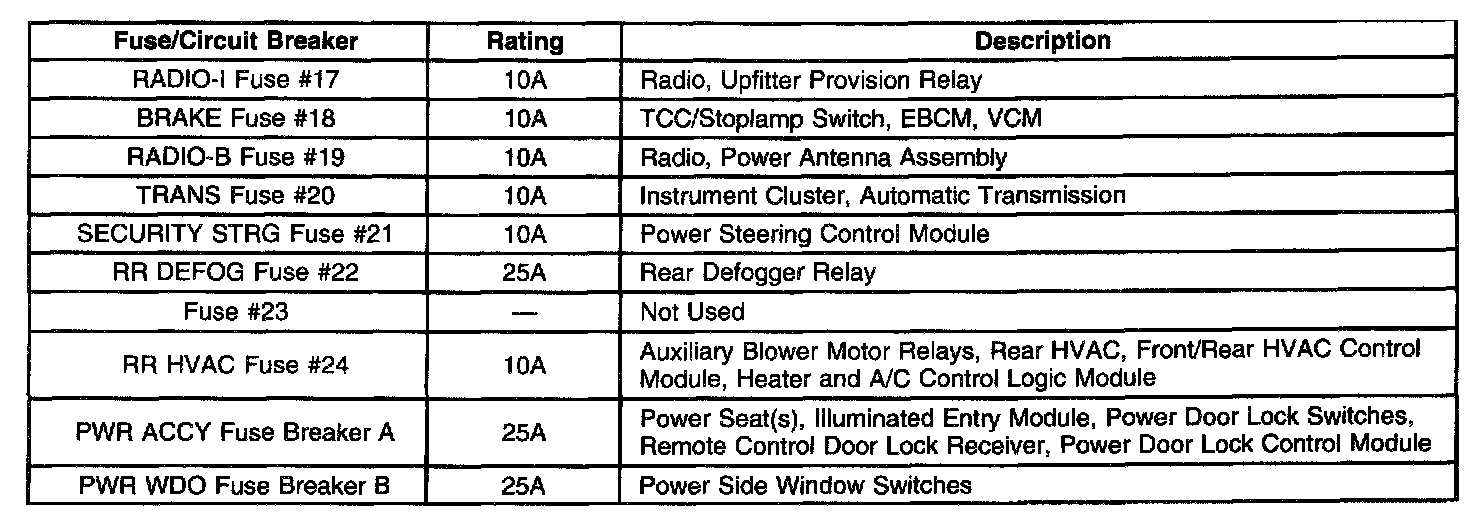

IP Fuse Block (Part 2 Of 2):
