Home >> Chevrolet >> 2000 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> VSS Auto Trans Shift Lock Control and Sensor Controls

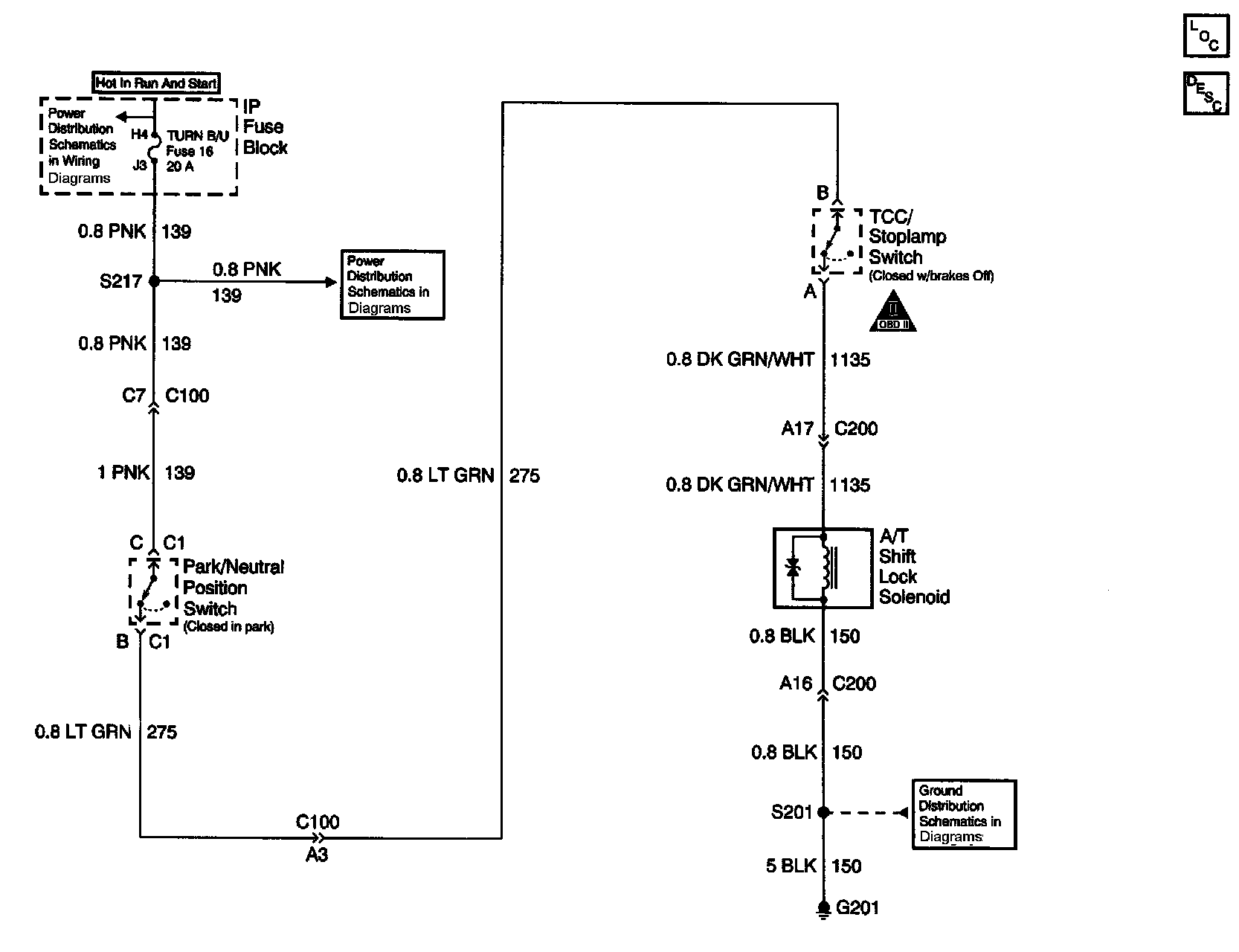

VSS Auto Trans Shift Lock Control and Sensor Controls
