Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC System - Automatic >> HVAC Control Assembly

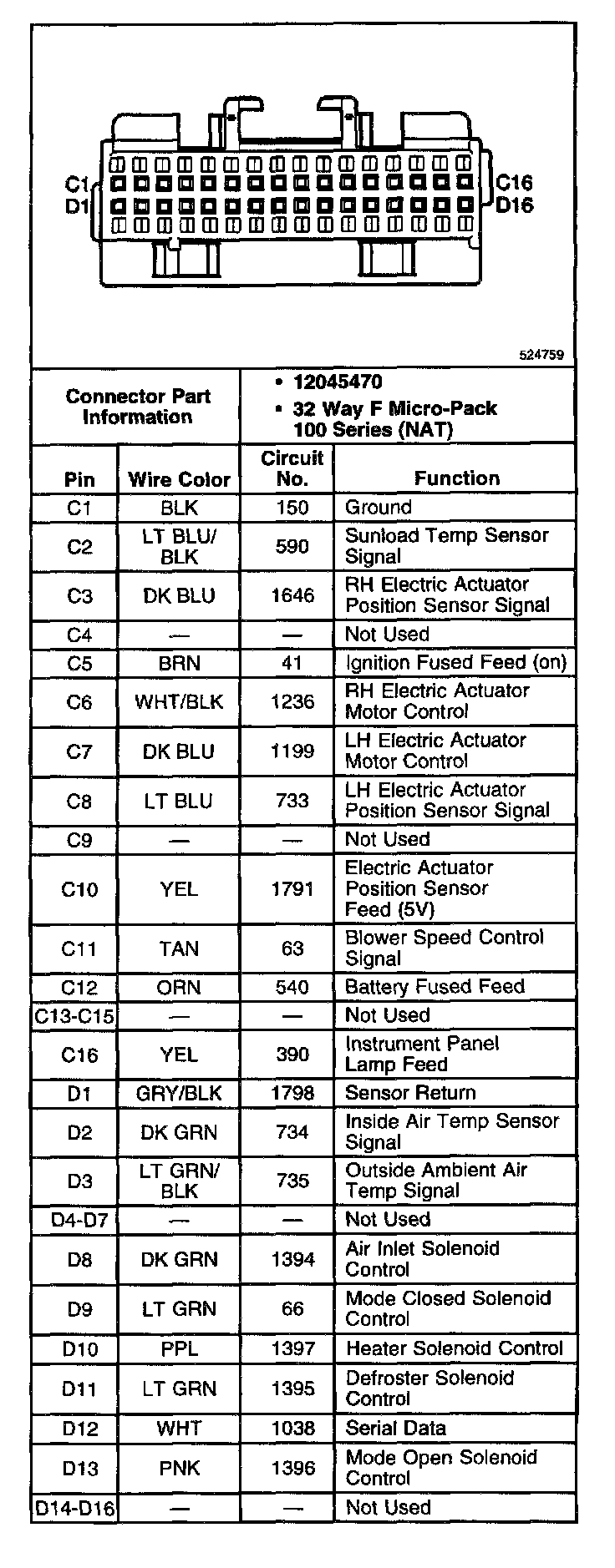

HVAC Control Assembly

HVAC Control Assembly:
