Charging System Test

TEST DESCRIPTION

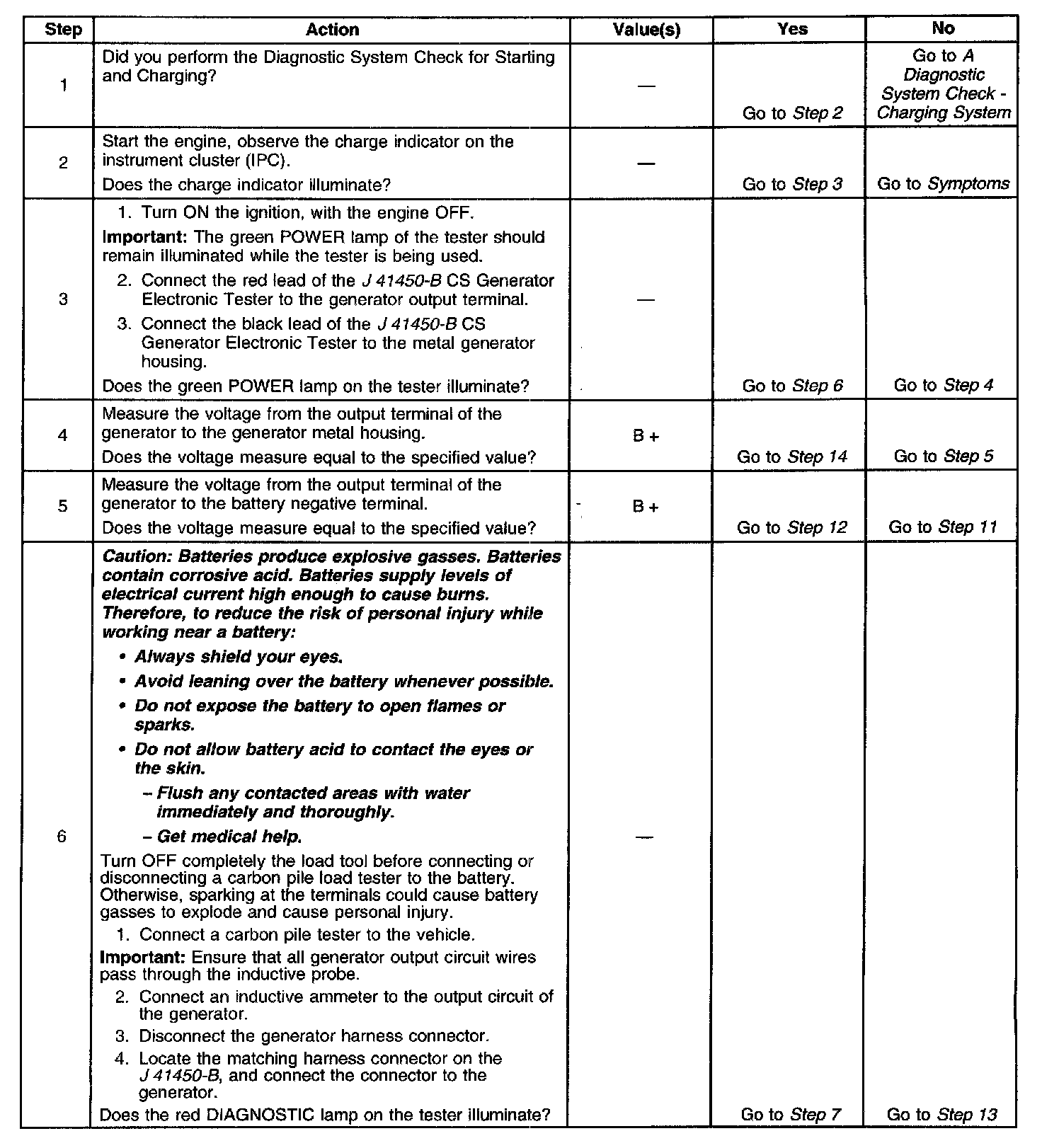

Step 1 - 6:

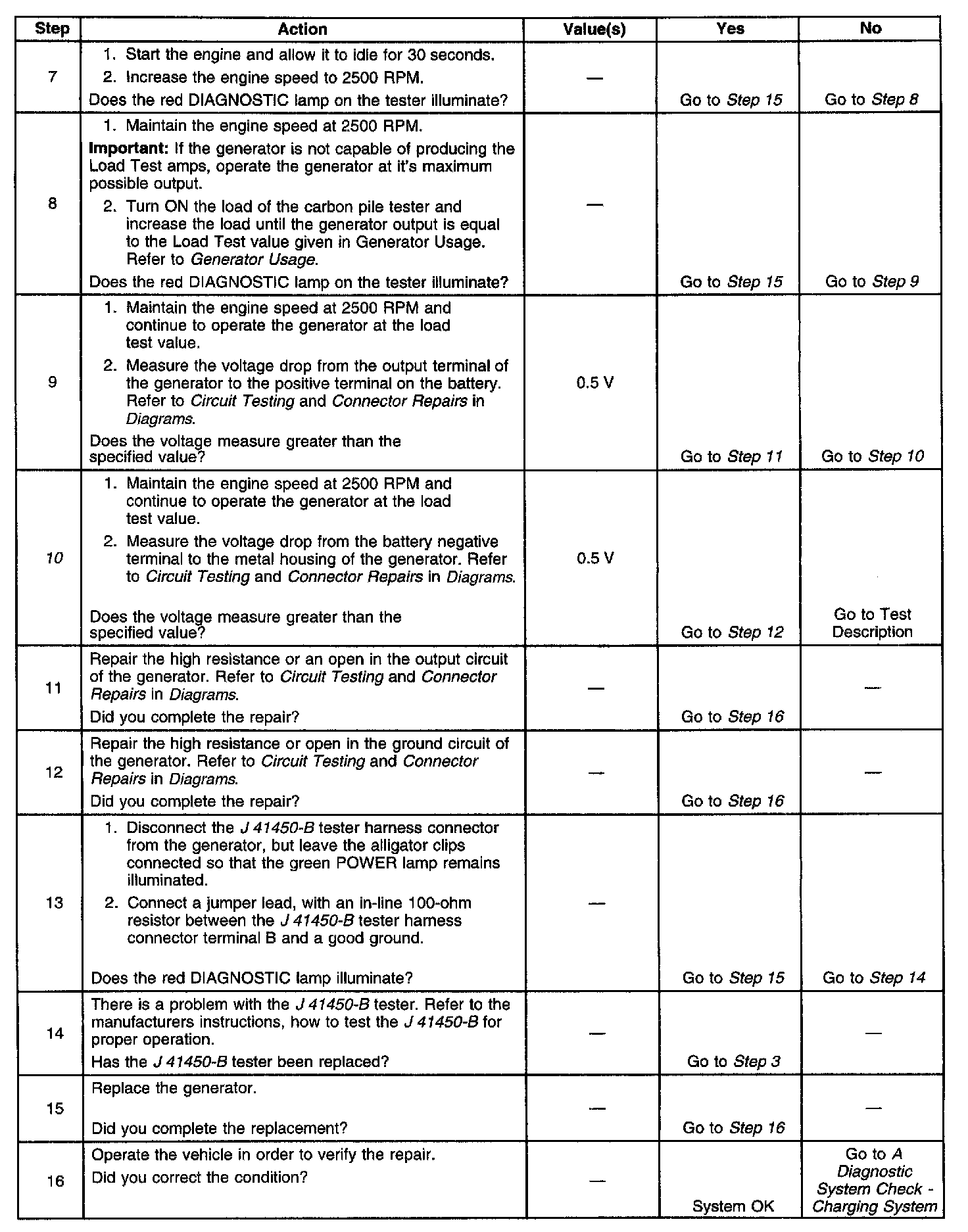

Step 7 - 16:

The number(s) below refer to the step number(s) on the Diagnostic Table
10. If the test has shown the generator to be OK, however the condition remains, test the PCM or its control circuit(s) to the generator.
