Home >> Chevrolet >> 2000 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Connector Views >> Park/Neutral Position Switch C2

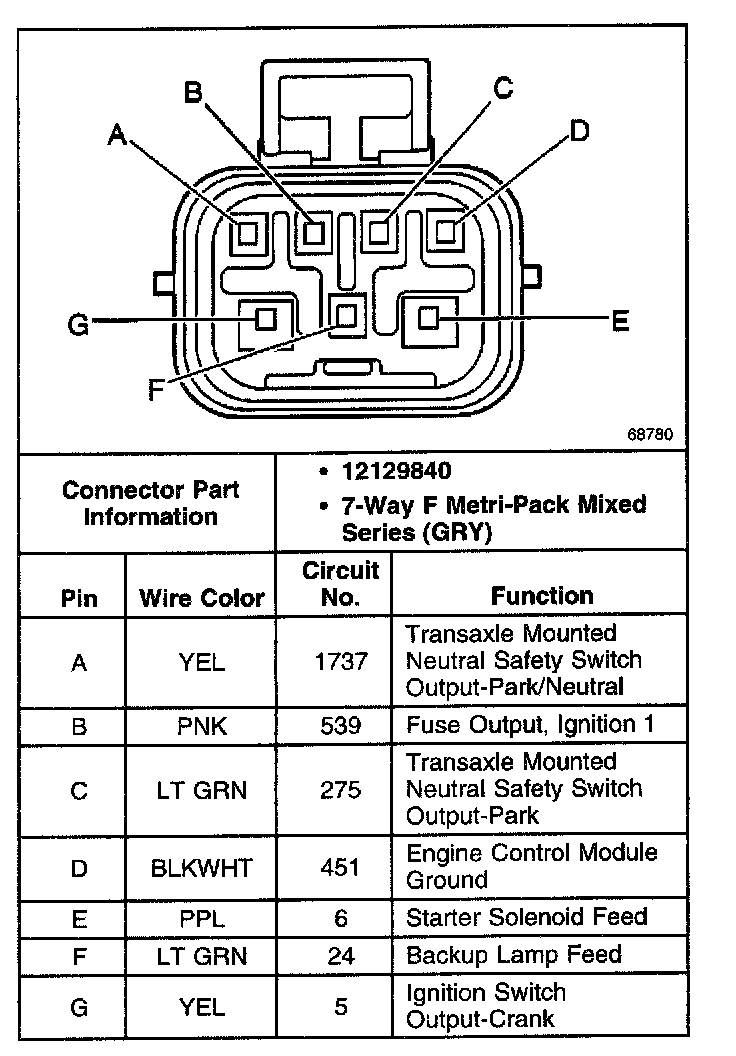

Park/Neutral Position Switch C2

Park/Neutral Position Switch C2:
