Home >> Chevrolet >> 2000 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

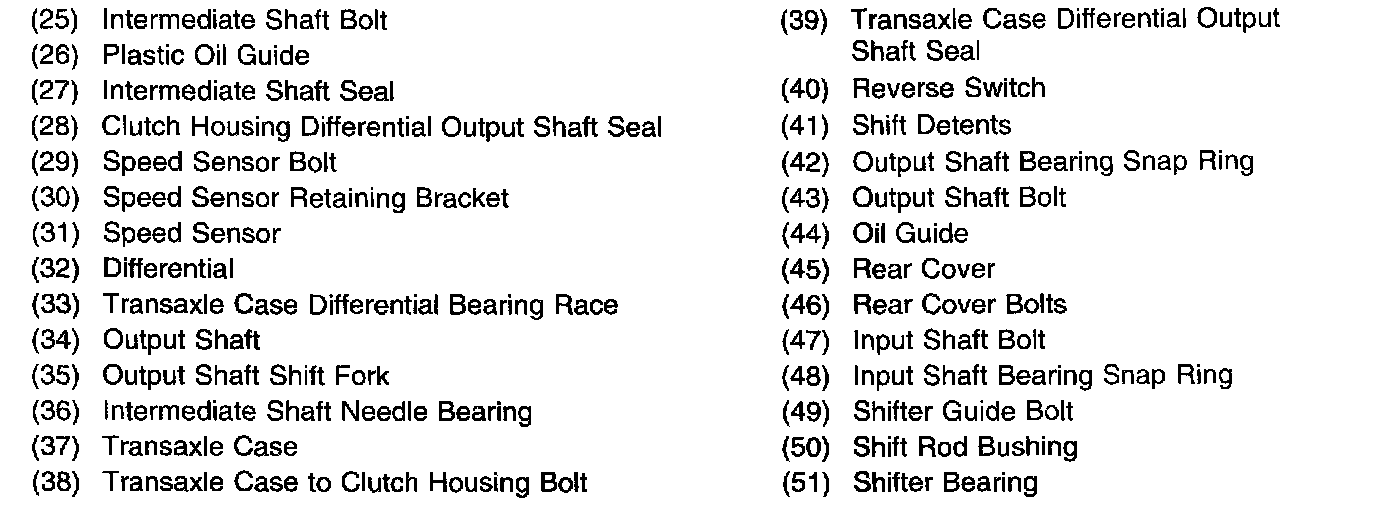

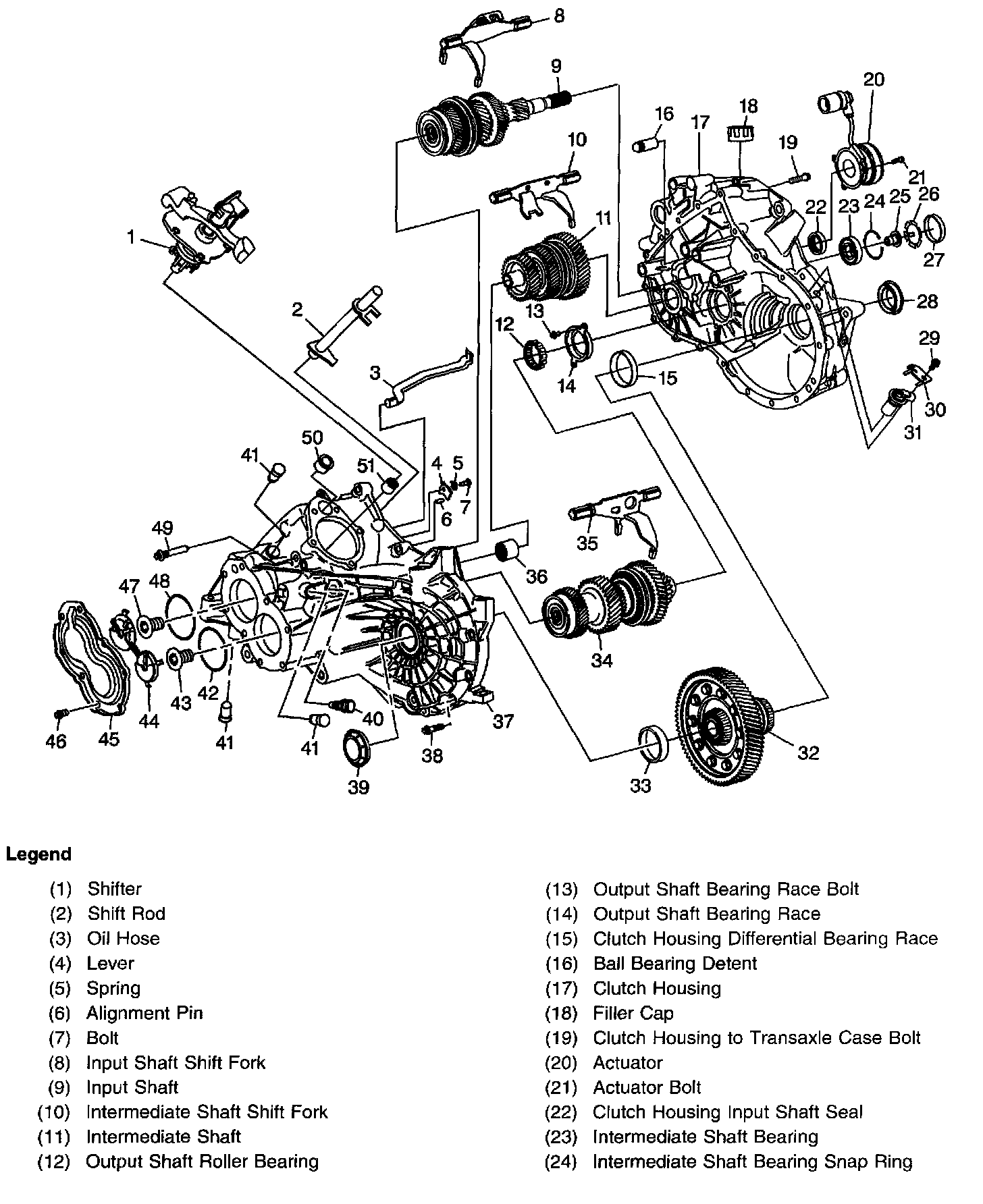

Case Components

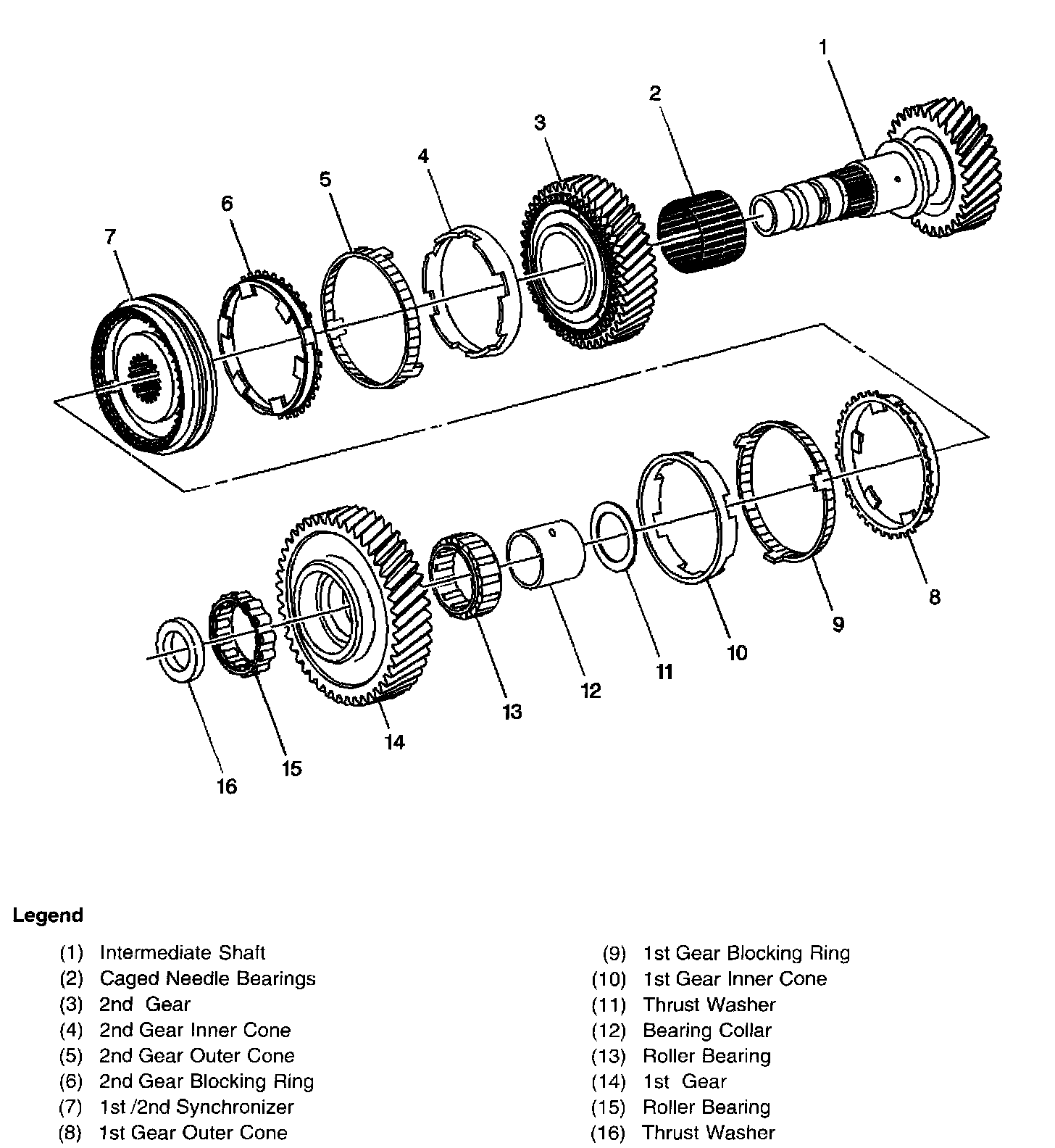

Intermediate Shaft Components

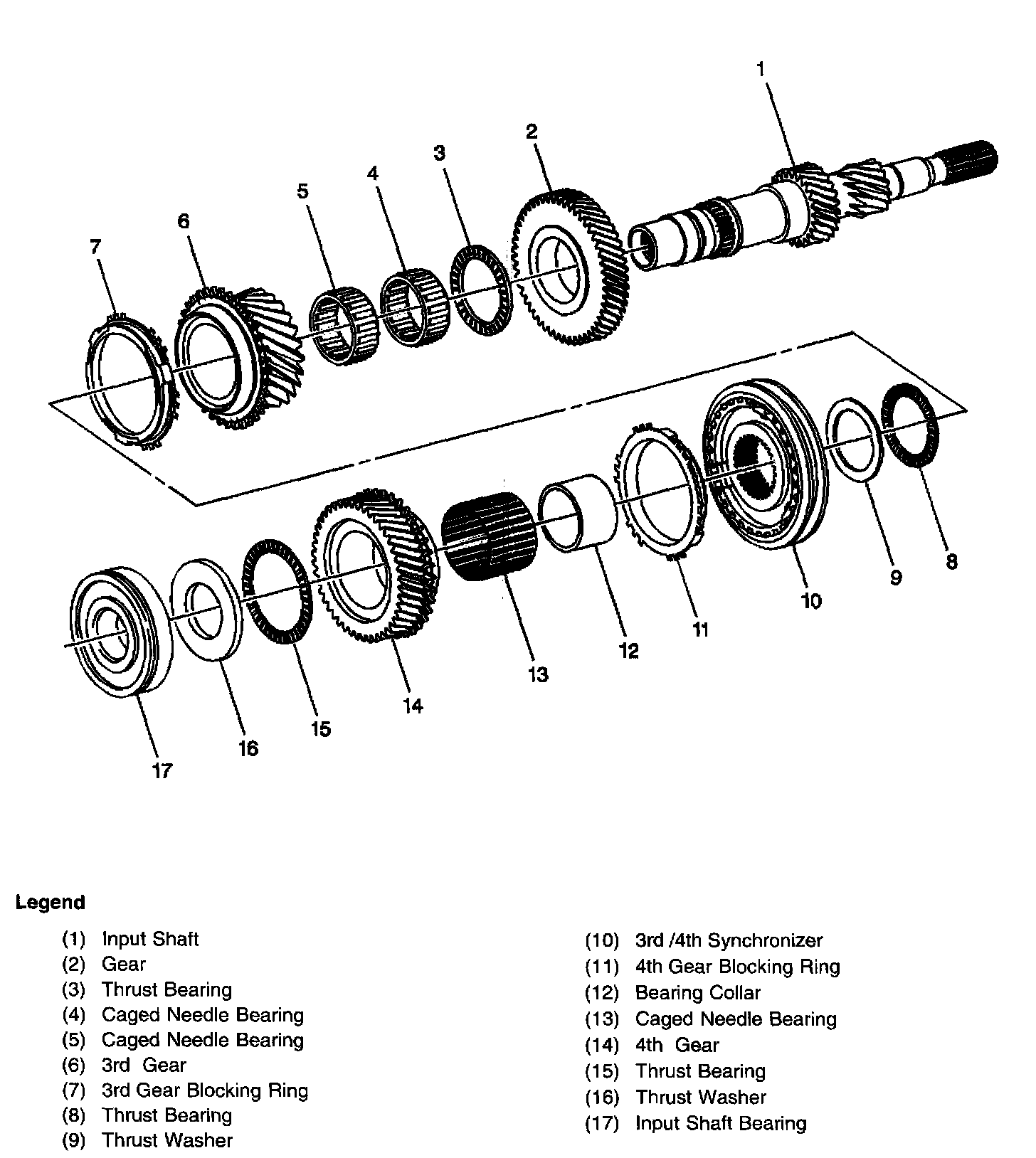

Input Shaft Components

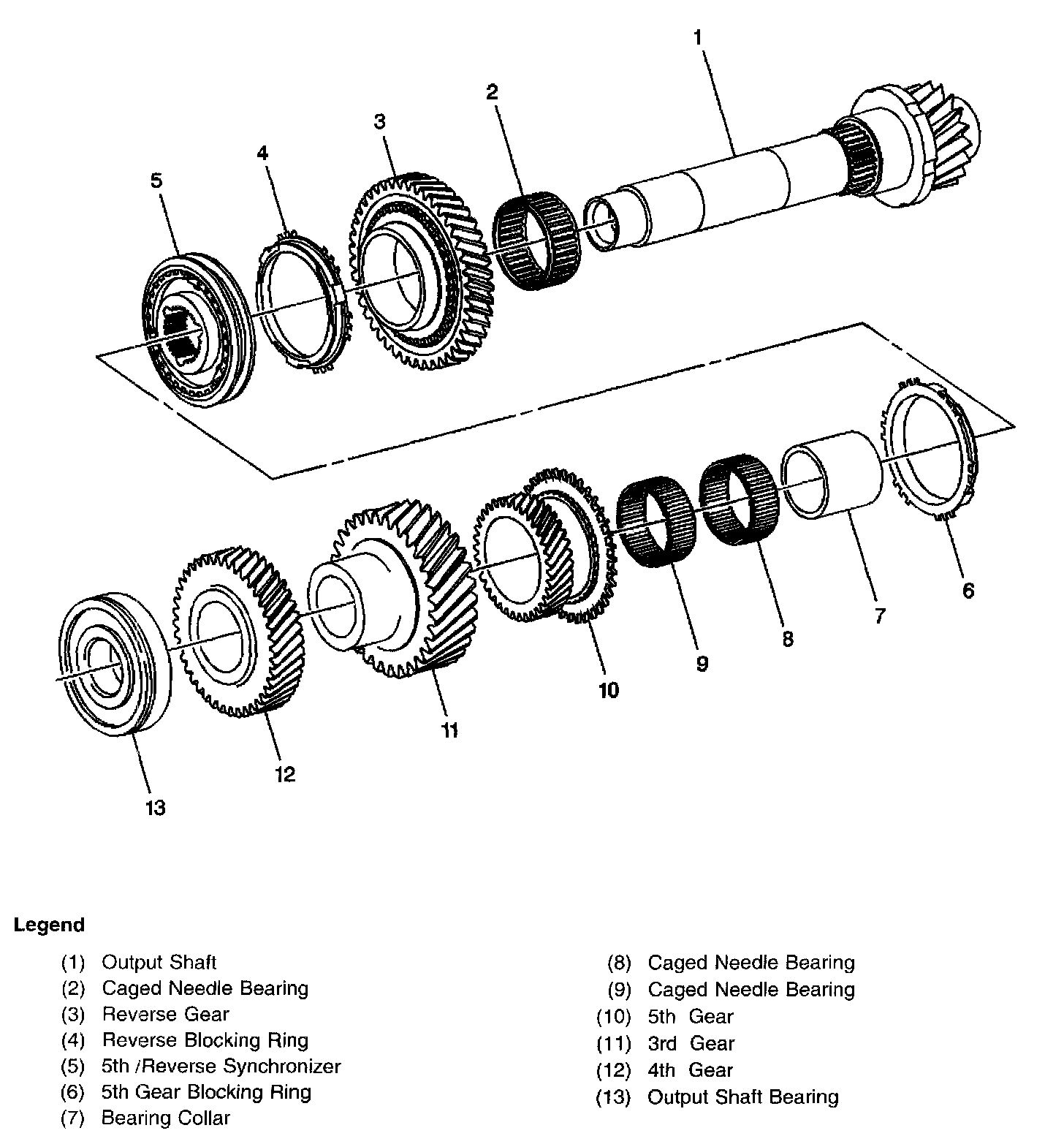

Output Shaft Components

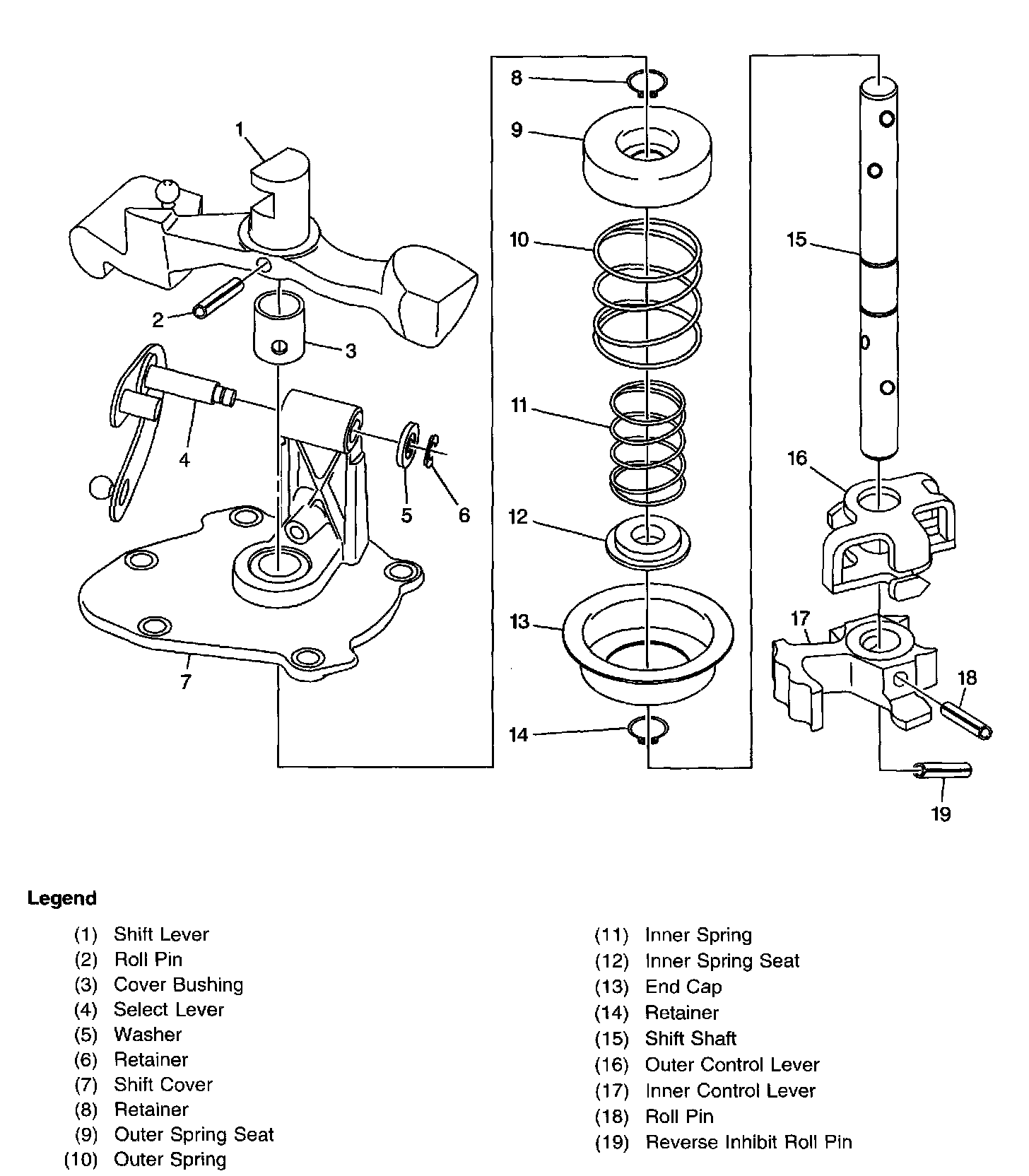

Shifter Components

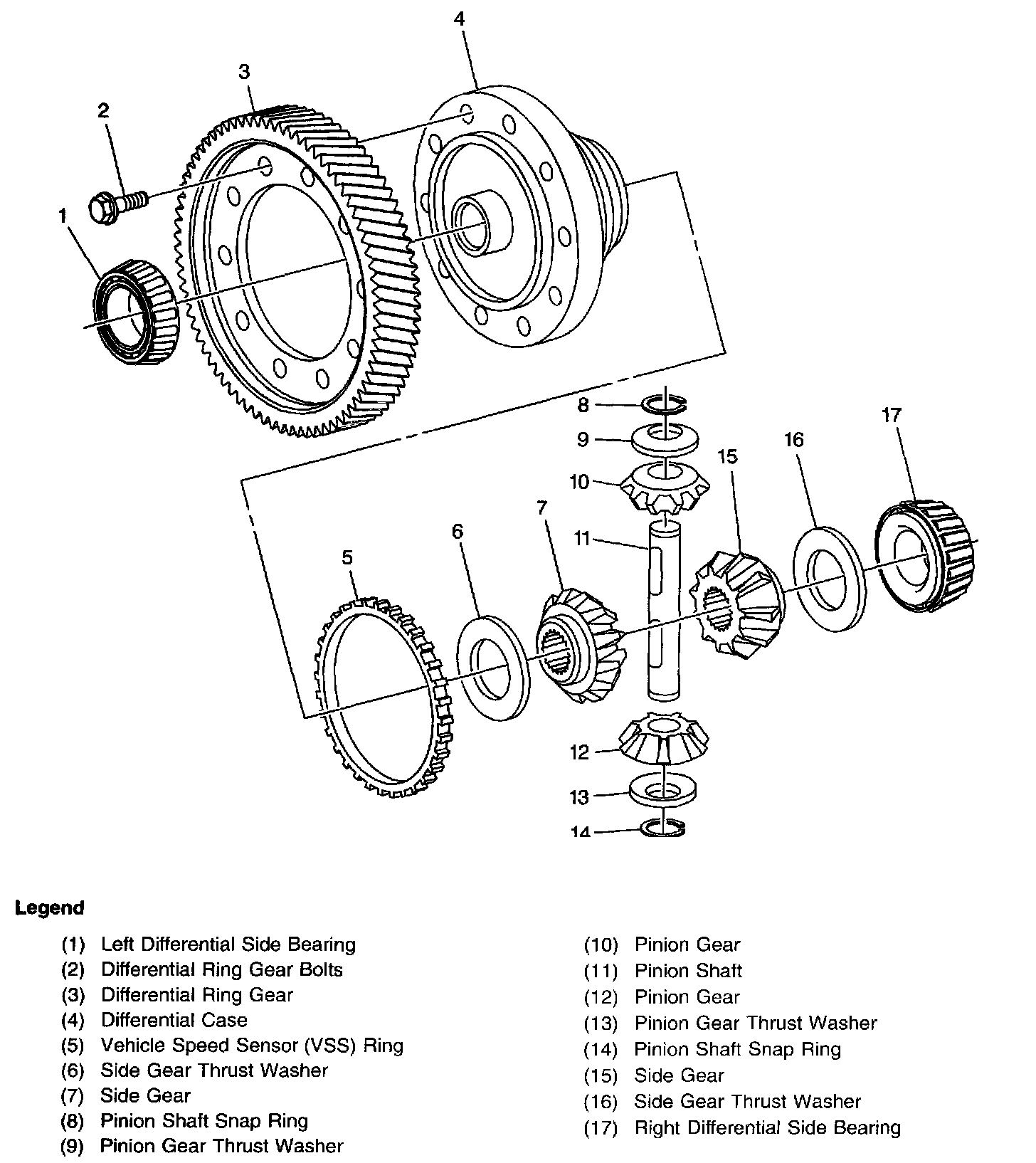

Differential Components
