Chevrolet
>>
2000
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch, Right Rear

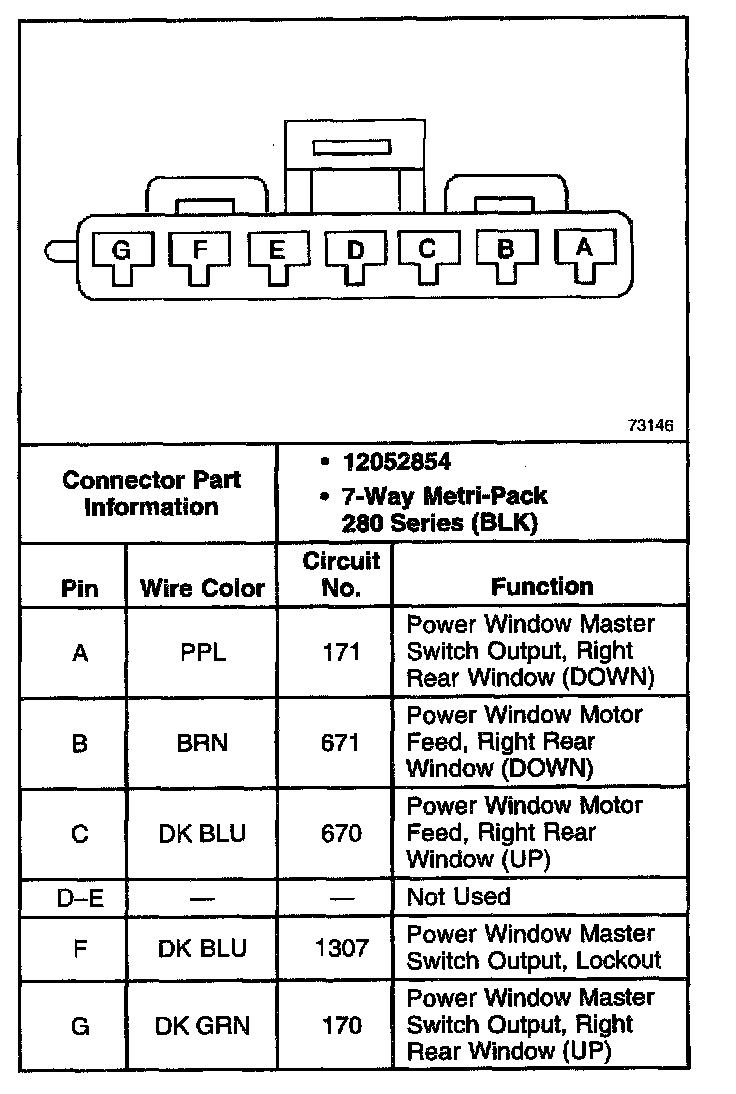

Window Switch, Right Rear
Connector View:
