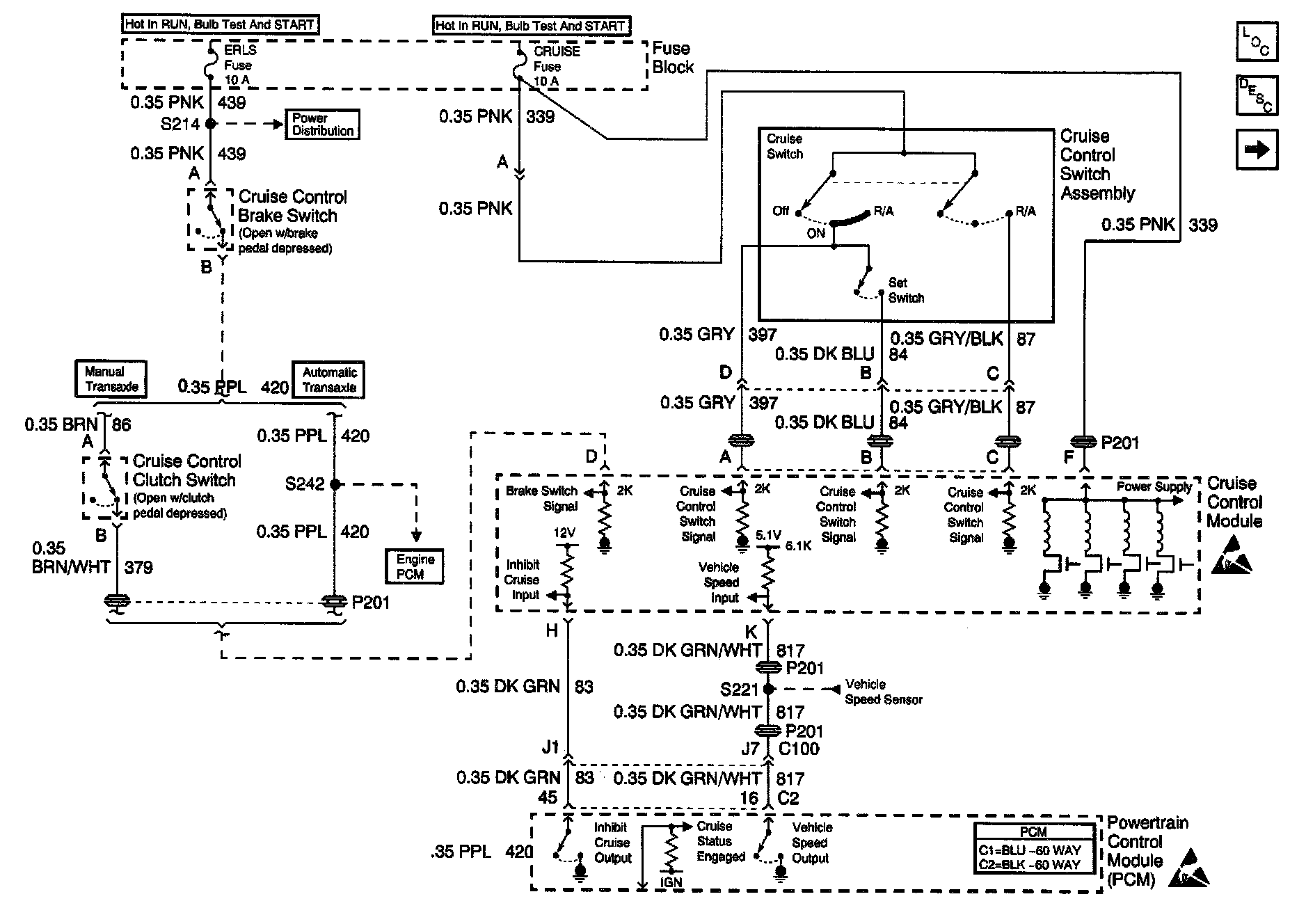

Cruise Control Module, Switch Assembly and PCM

Cruise Control Schematics: Cruise Control Module, Switch Assembly and PCM:
