Generator Not Operating Properly

TEST DESCRIPTION

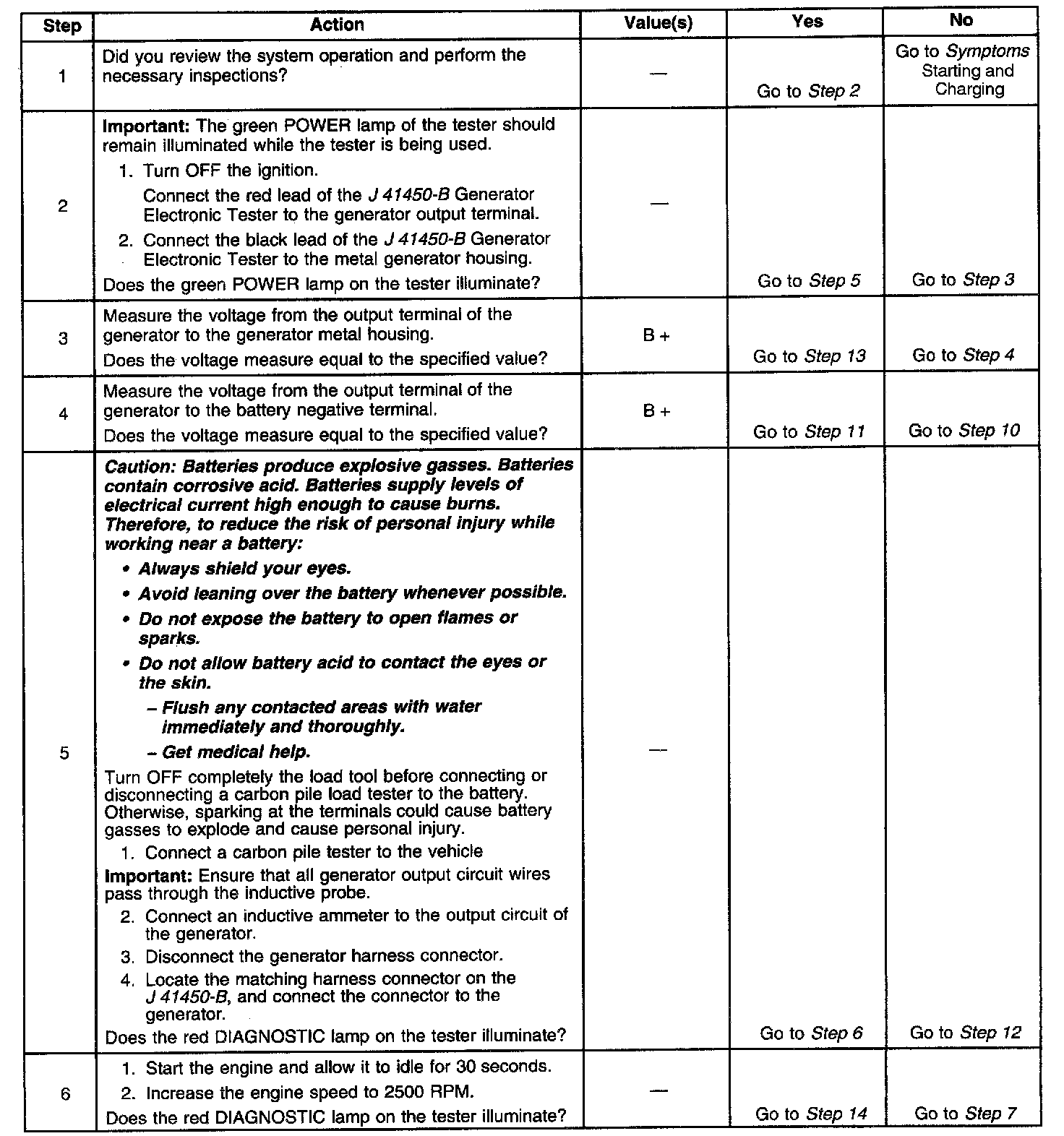

Step 1 - 6:

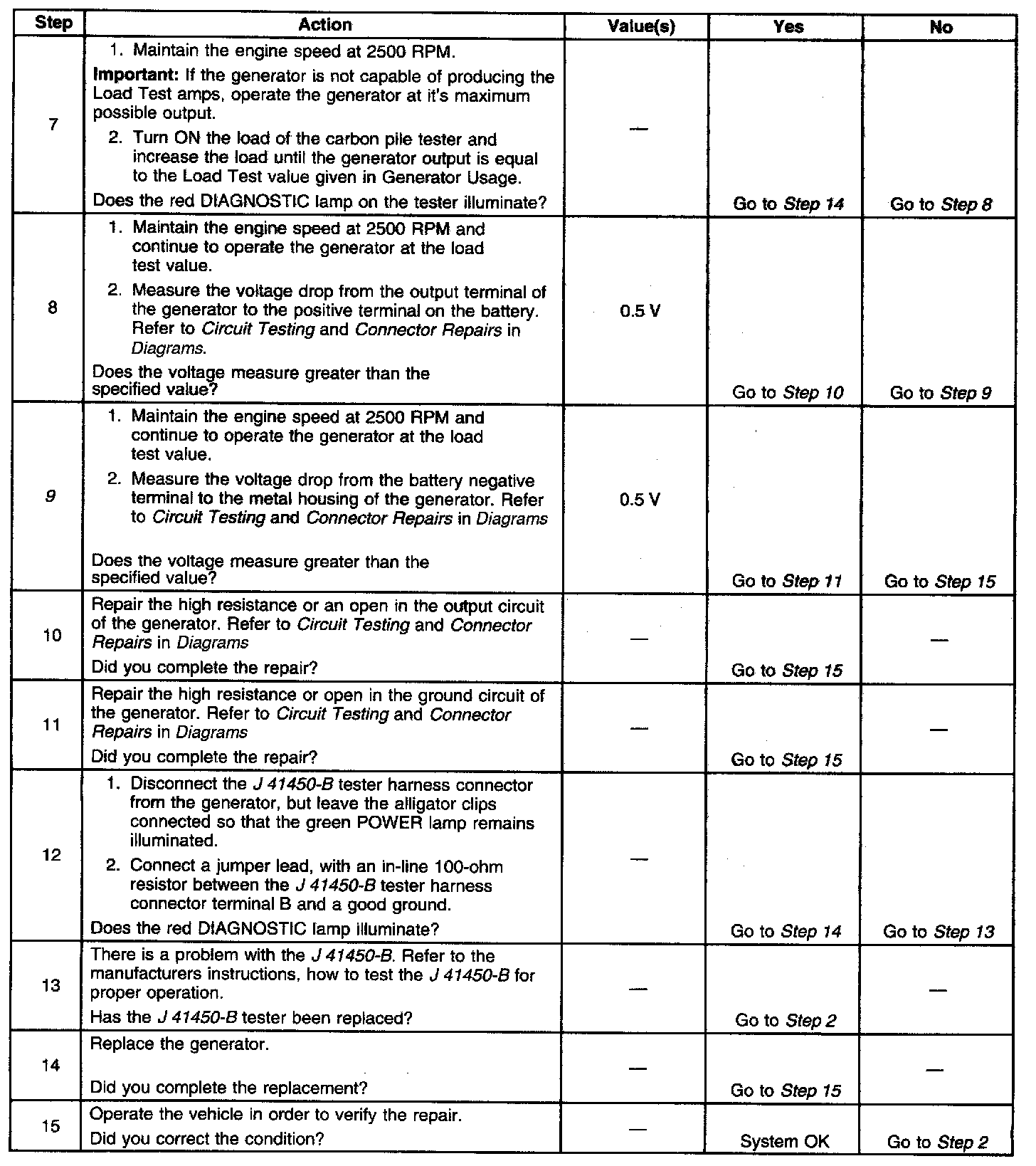

Step 7 - 15:






9. If the test has shown the generator to be OK, however the condition remains, test the PCM or its control circuit(s) to the generator.

GENERATOR USAGE

Generator Usage Chart:
