Starter Relay: Service and Repair

REMOVAL PROCEDURE

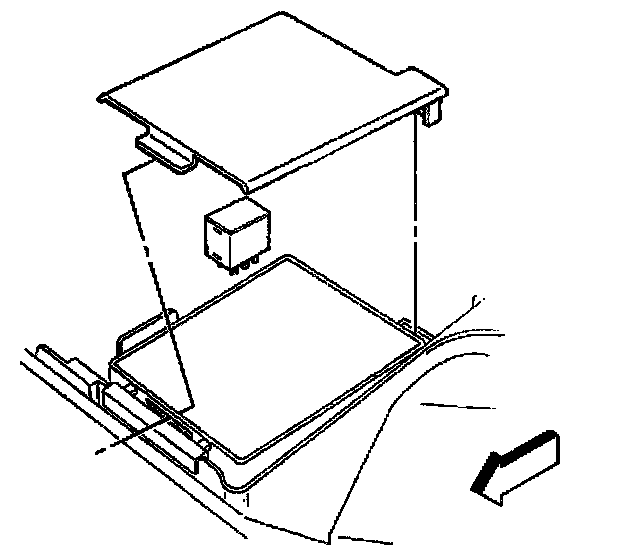

1. Open and remove the cover to the number 2 underhood electrical center.
2. Remove the starter motor relay.

INSTALLATION PROCEDURE
1. Install the starter motor relay.
2. Install and close the cover on the number 2 underhood electrical center.
