Astro Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

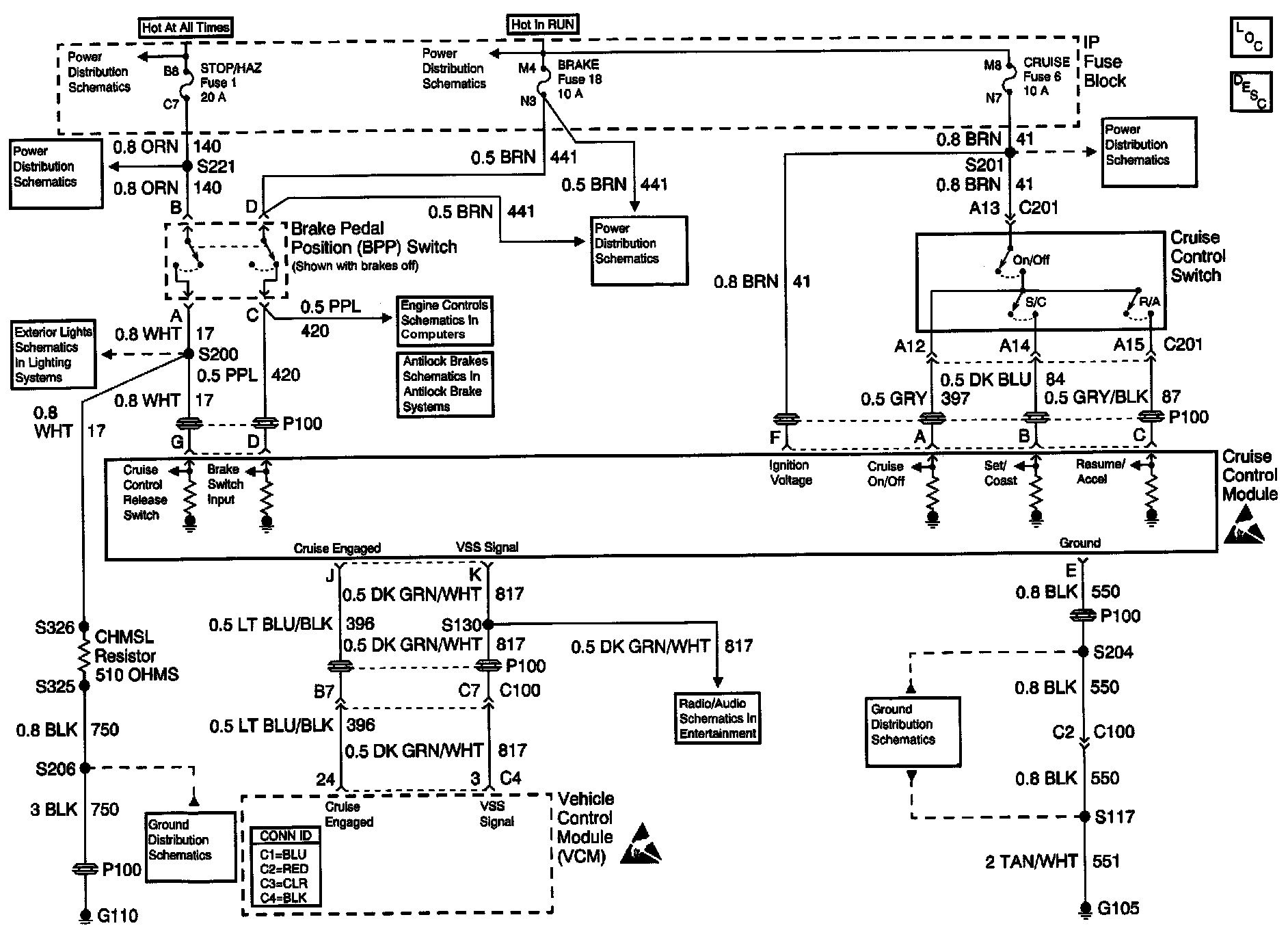

Cruise Control Schematics:
