Home >> Chevrolet >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations >> Component Locations

Component Locations

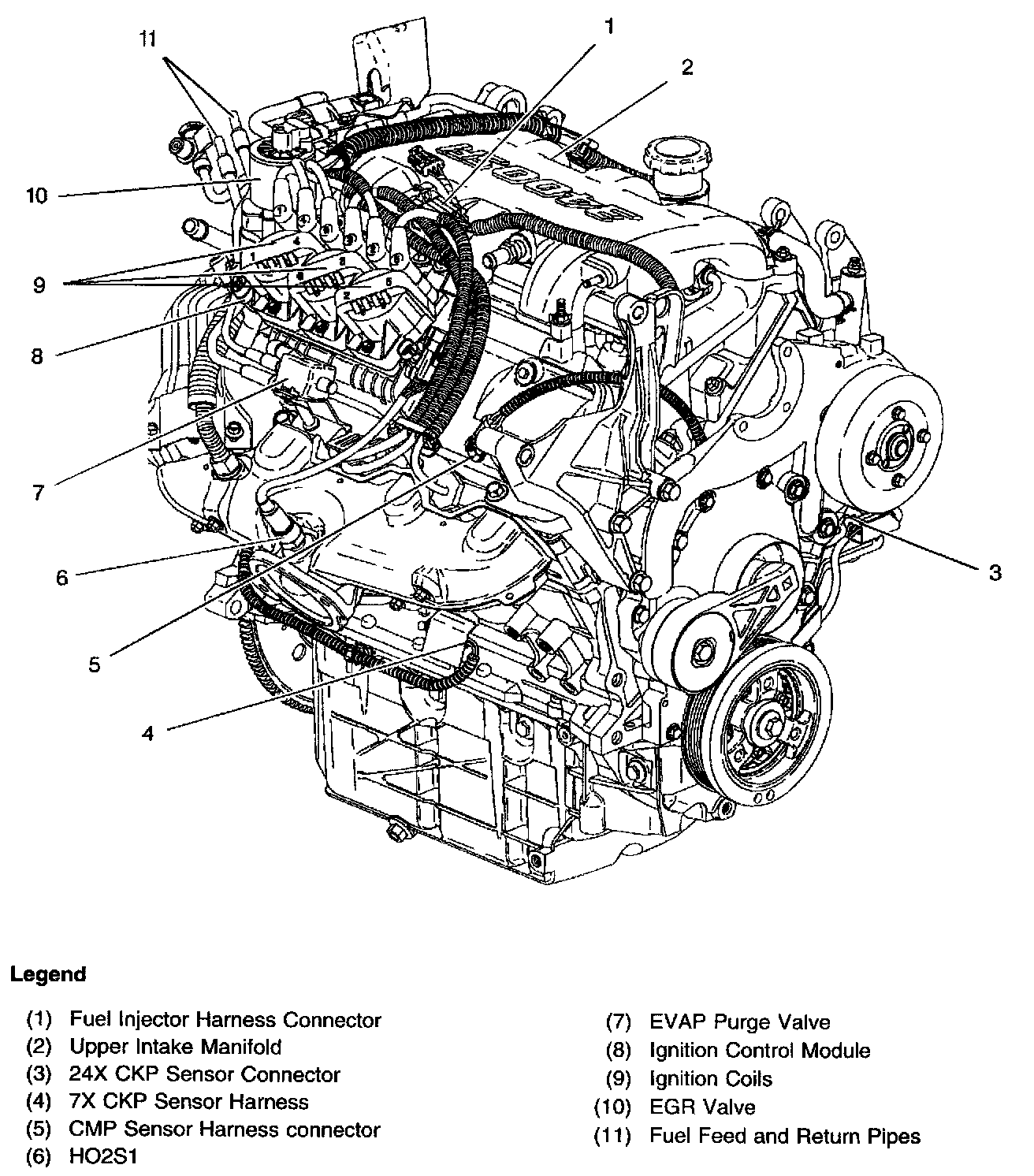

Engine Composite View 3400:

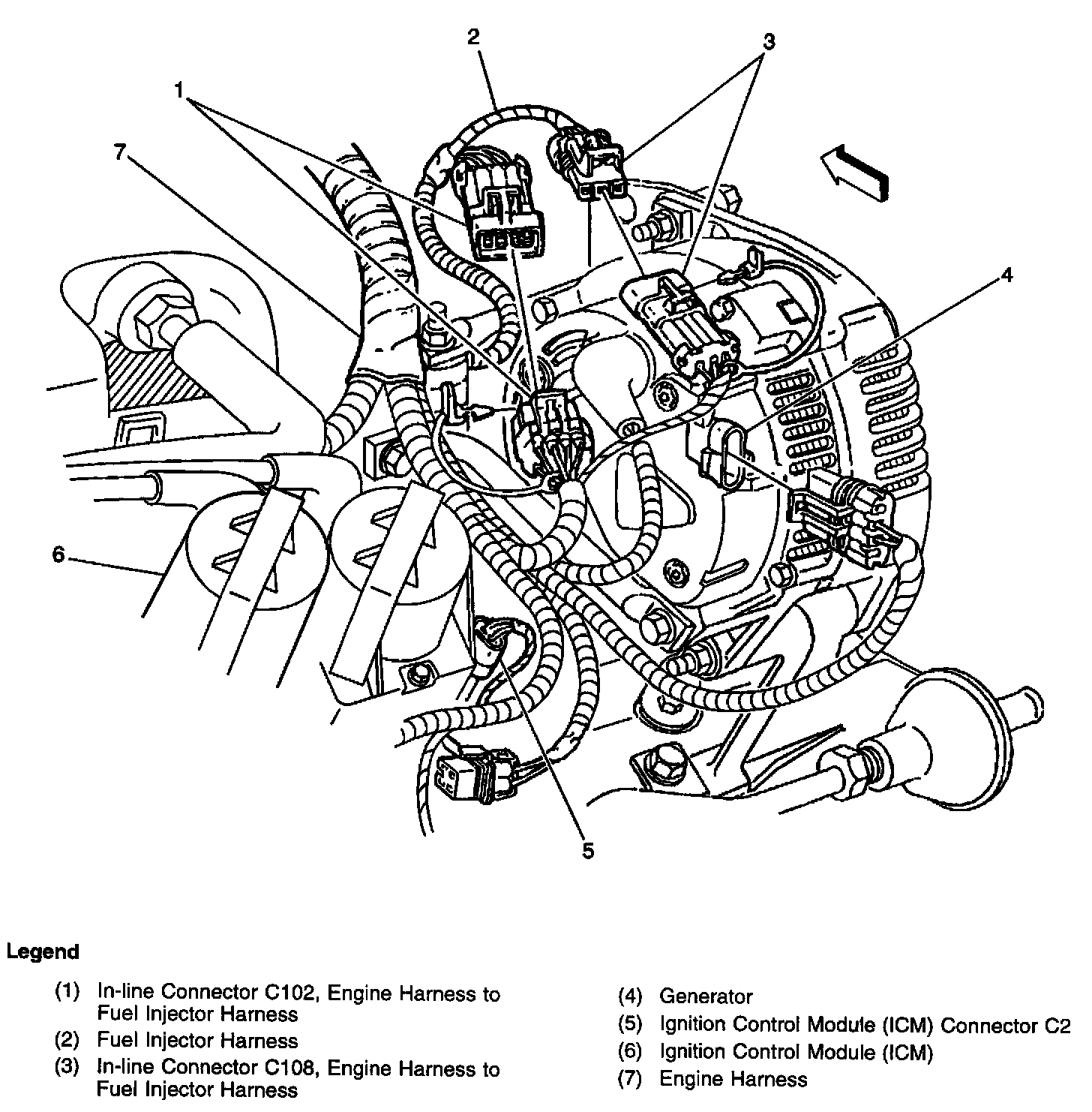

Locations View:




Top center rear of the engine
