Home >> Chevrolet >> 1999 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Belt

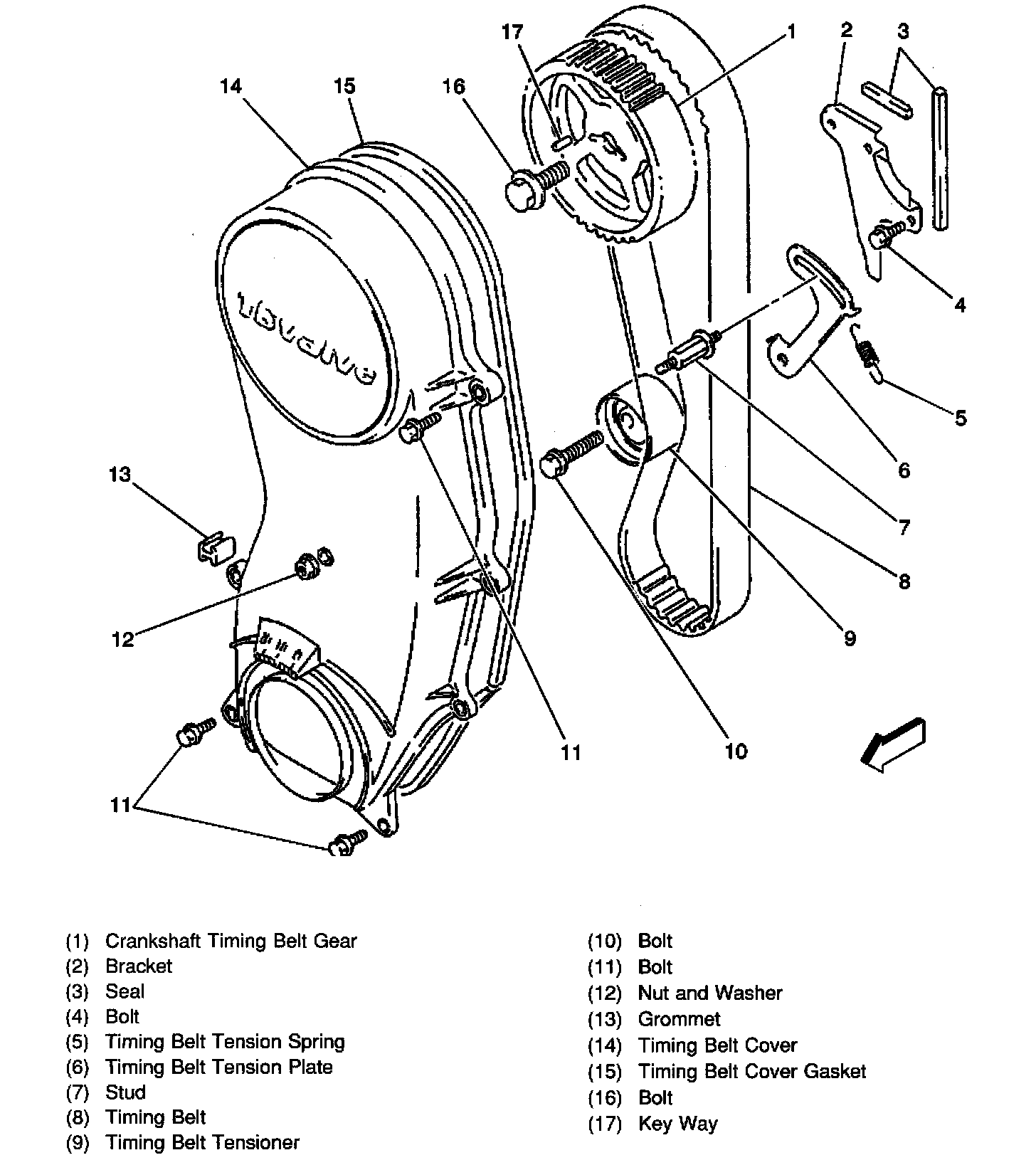

Timing Belt

Timing Belt:
