Connector Views

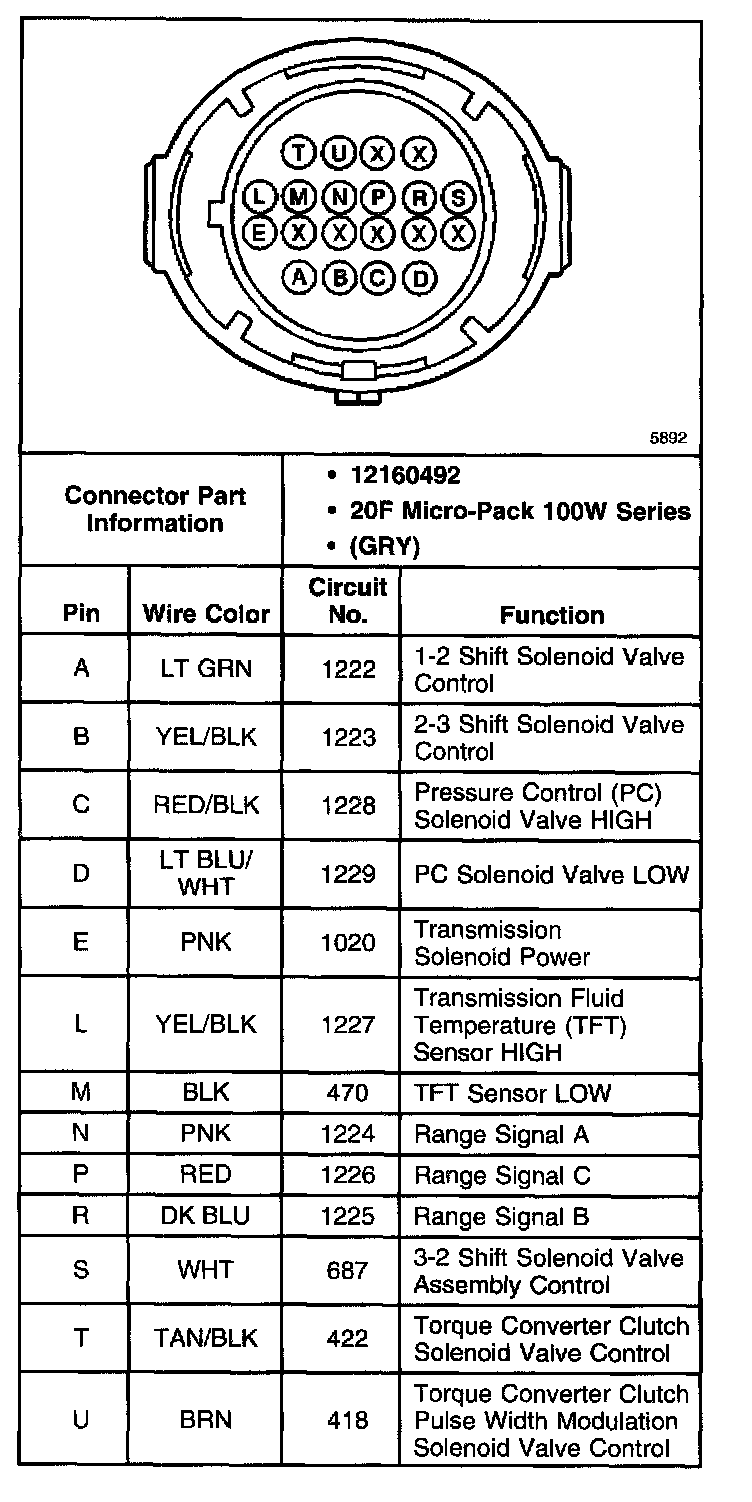

Inline Harness Connector C103, Engine Side

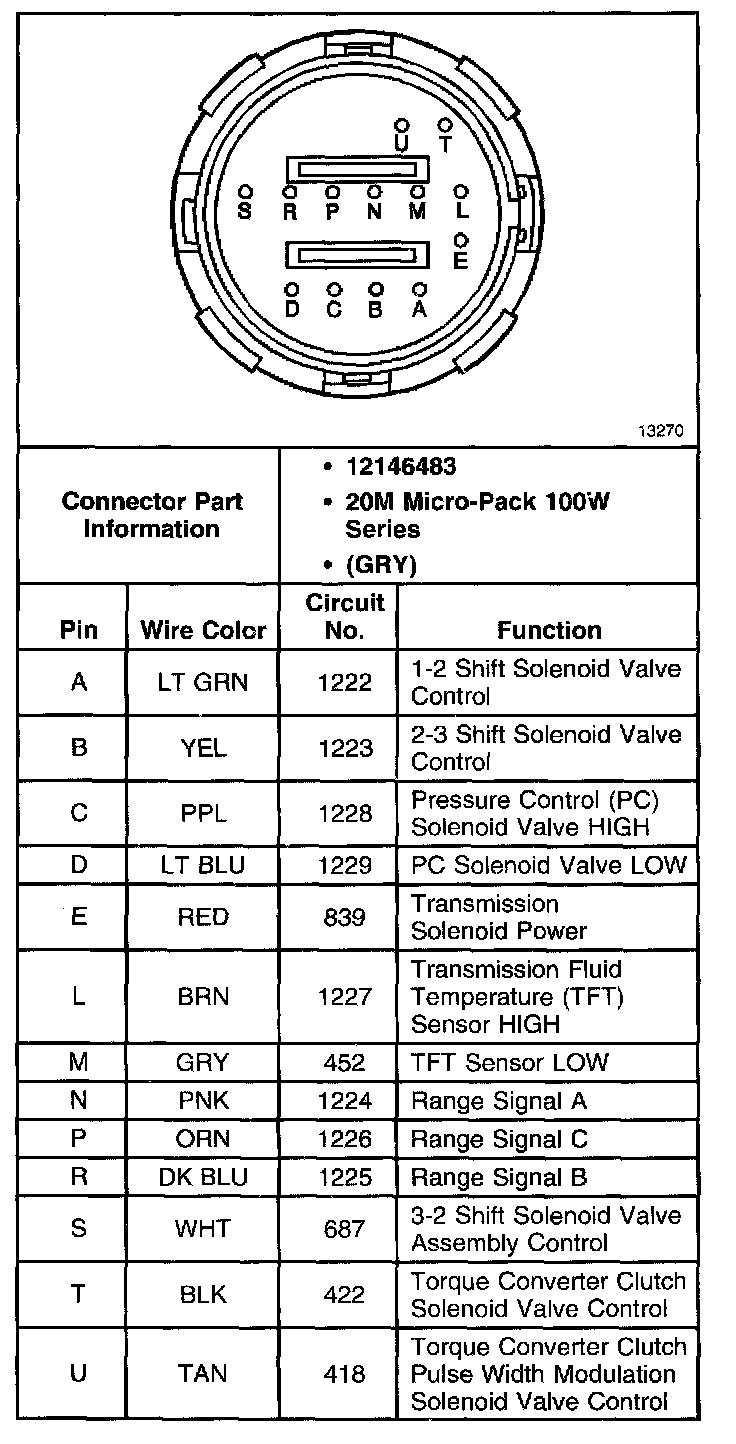

Inline Harness Connector C103, Transmission Side
