Home >> Chevrolet >> 1999 >> Express 1/2 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams

Cruise Control Module: Diagrams

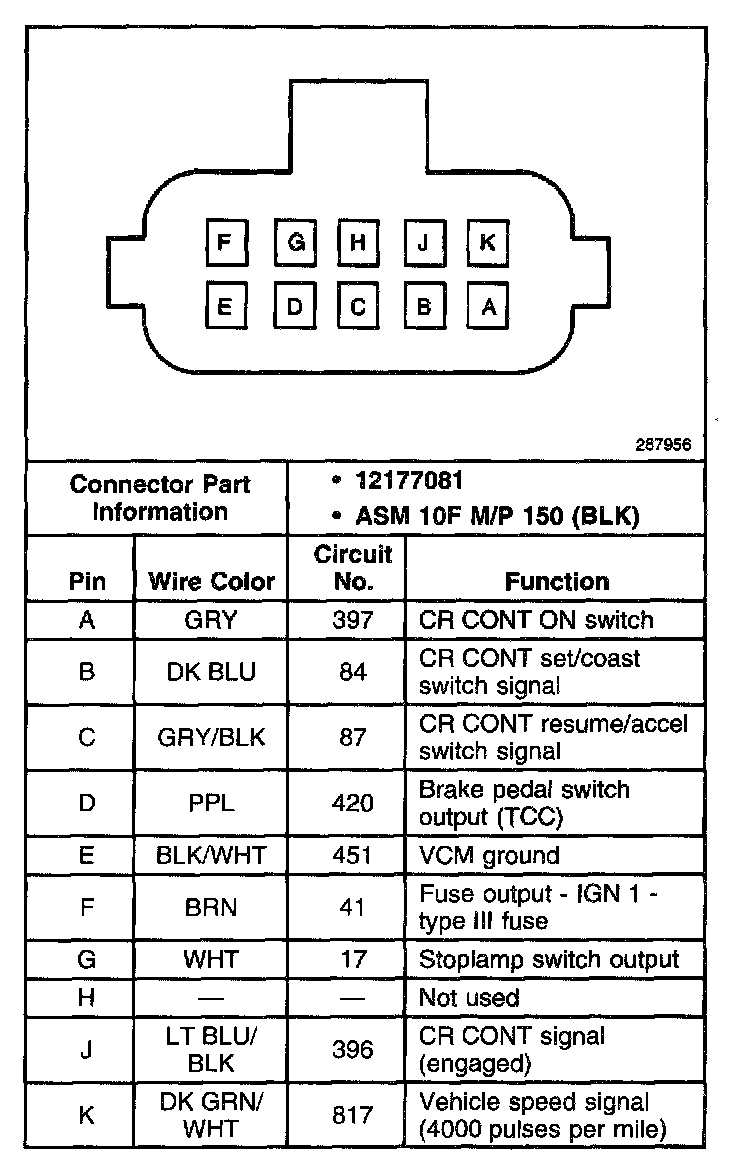

Cruise Control Module Connector (Gas):
