Connector Views

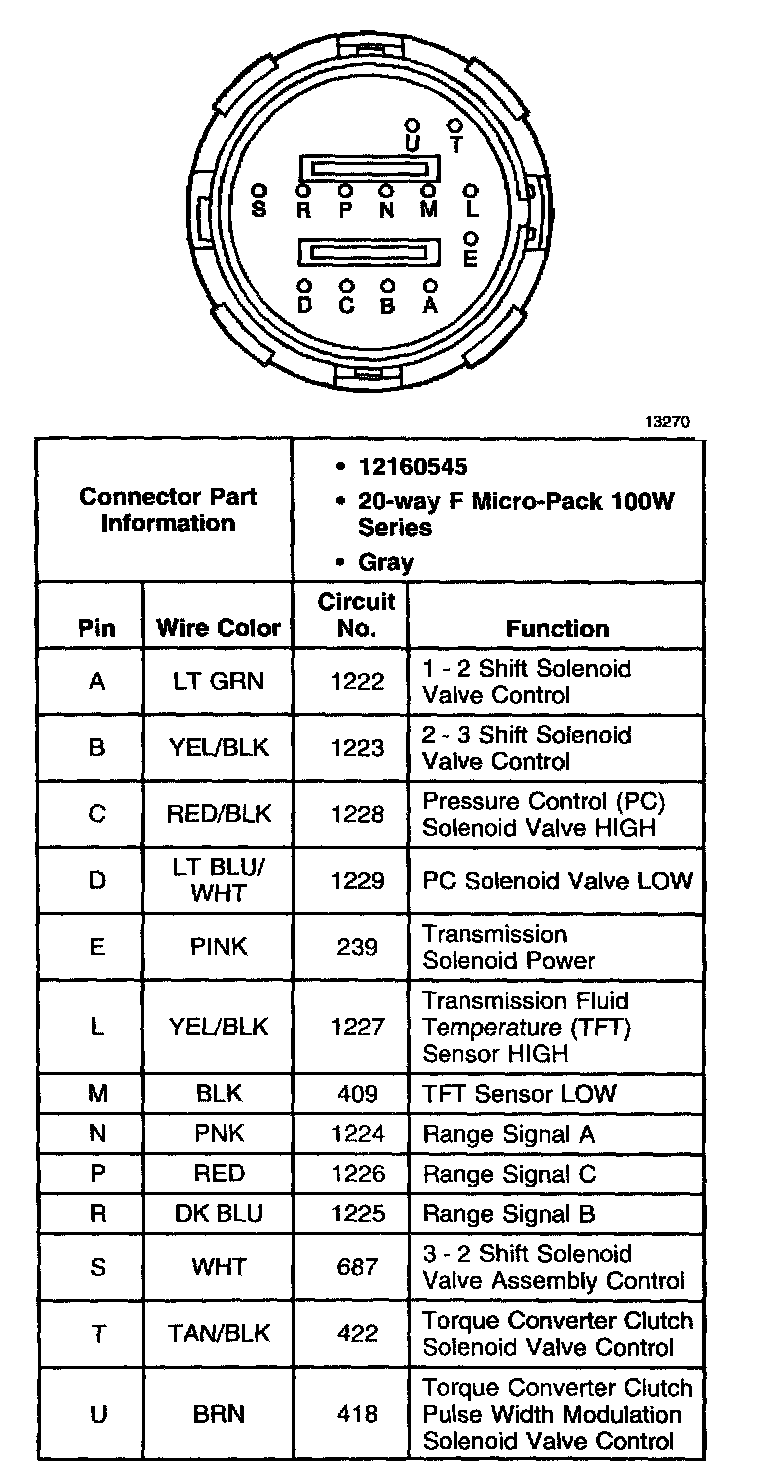

Automatic Transmission Wiring Harness Assembly 20-way Connector, Transmission Side

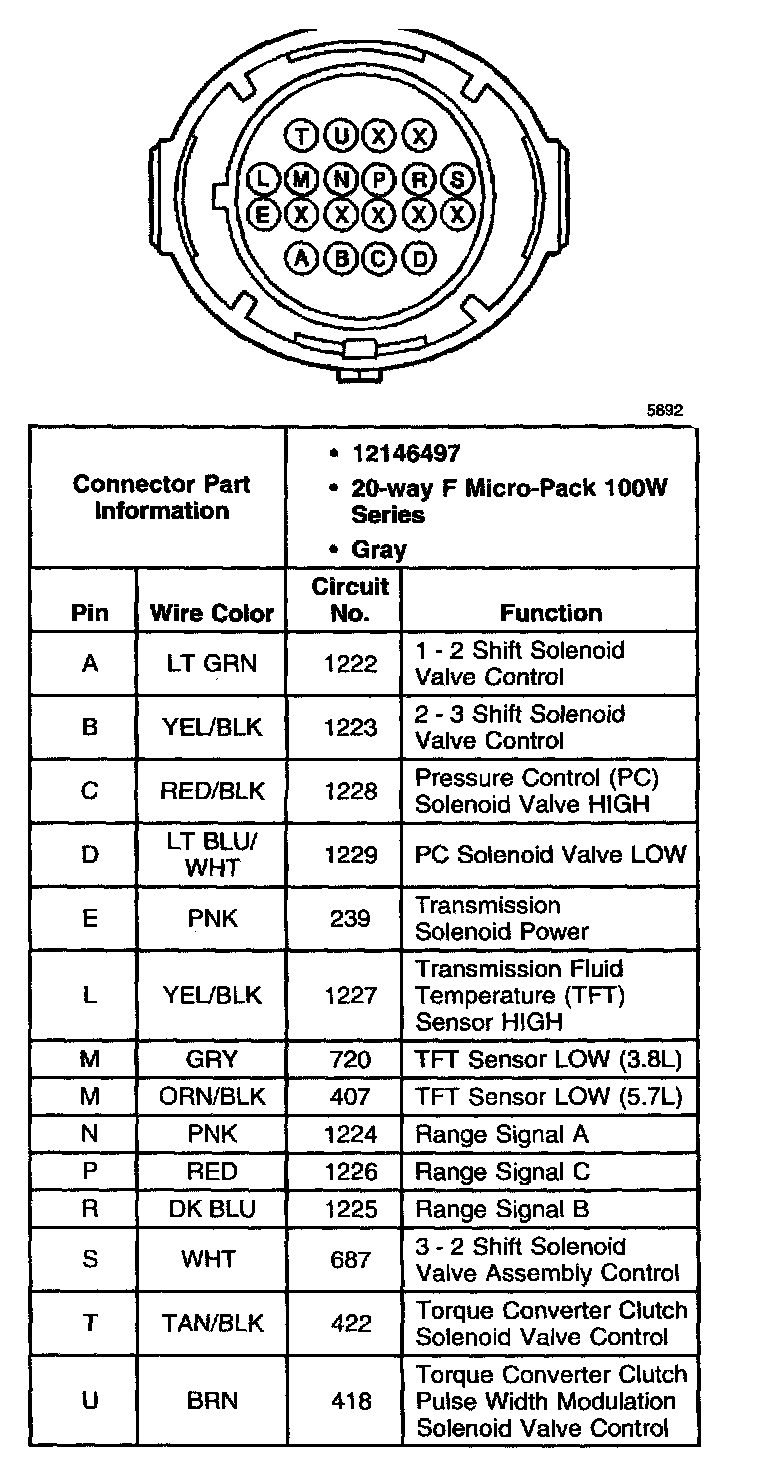

Automatic Transmission Wiring Harness Assembly 20-way Connector, Engine Side
