Home >> Chevrolet >> 1999 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

Locations View:

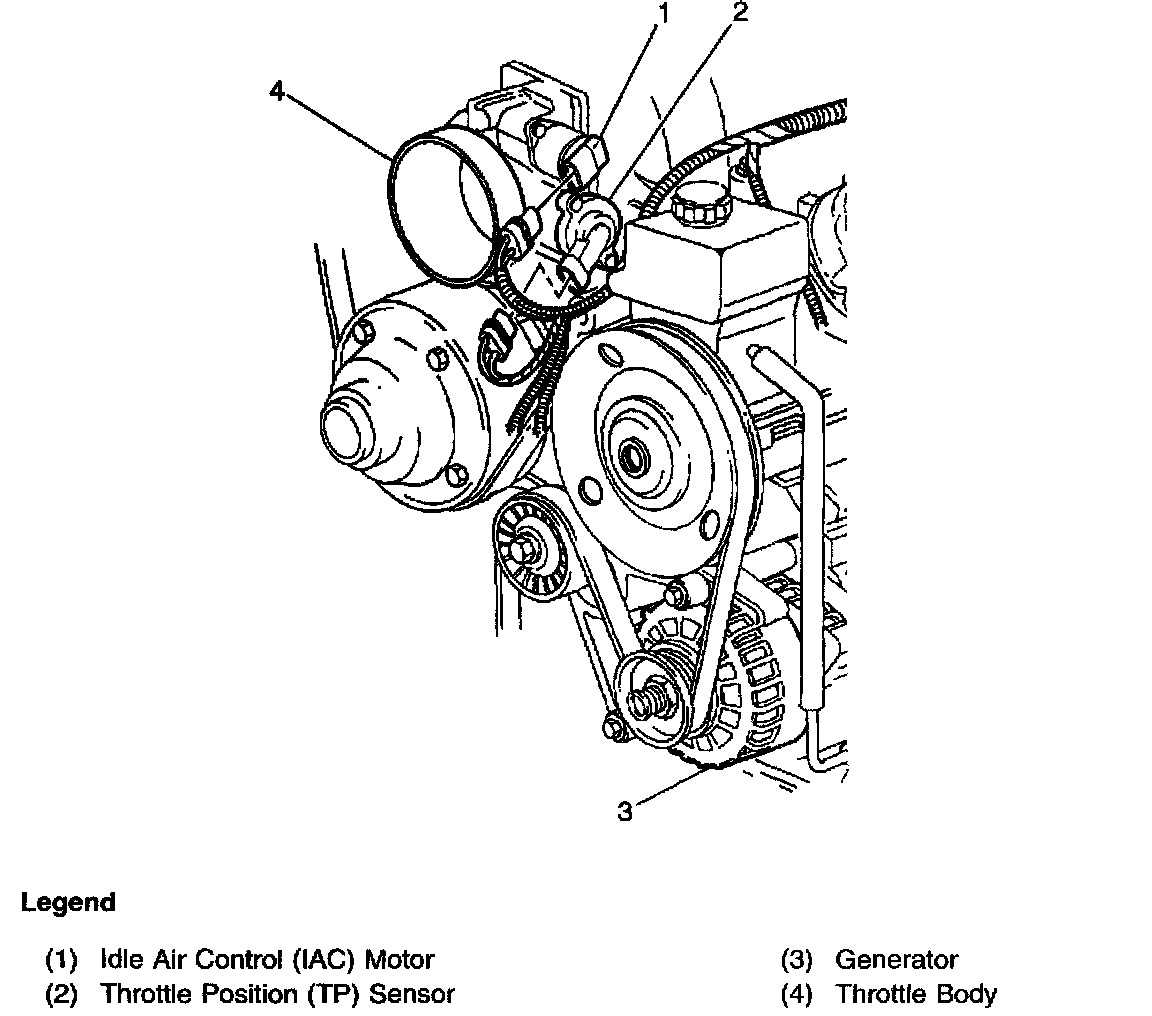

Idle Air Control (IAC) Motor, Throttle Position (TP) Sensor, Generator:





Mounted to the front of the throttle body
