Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations >> Connector Locations >> C2

C2

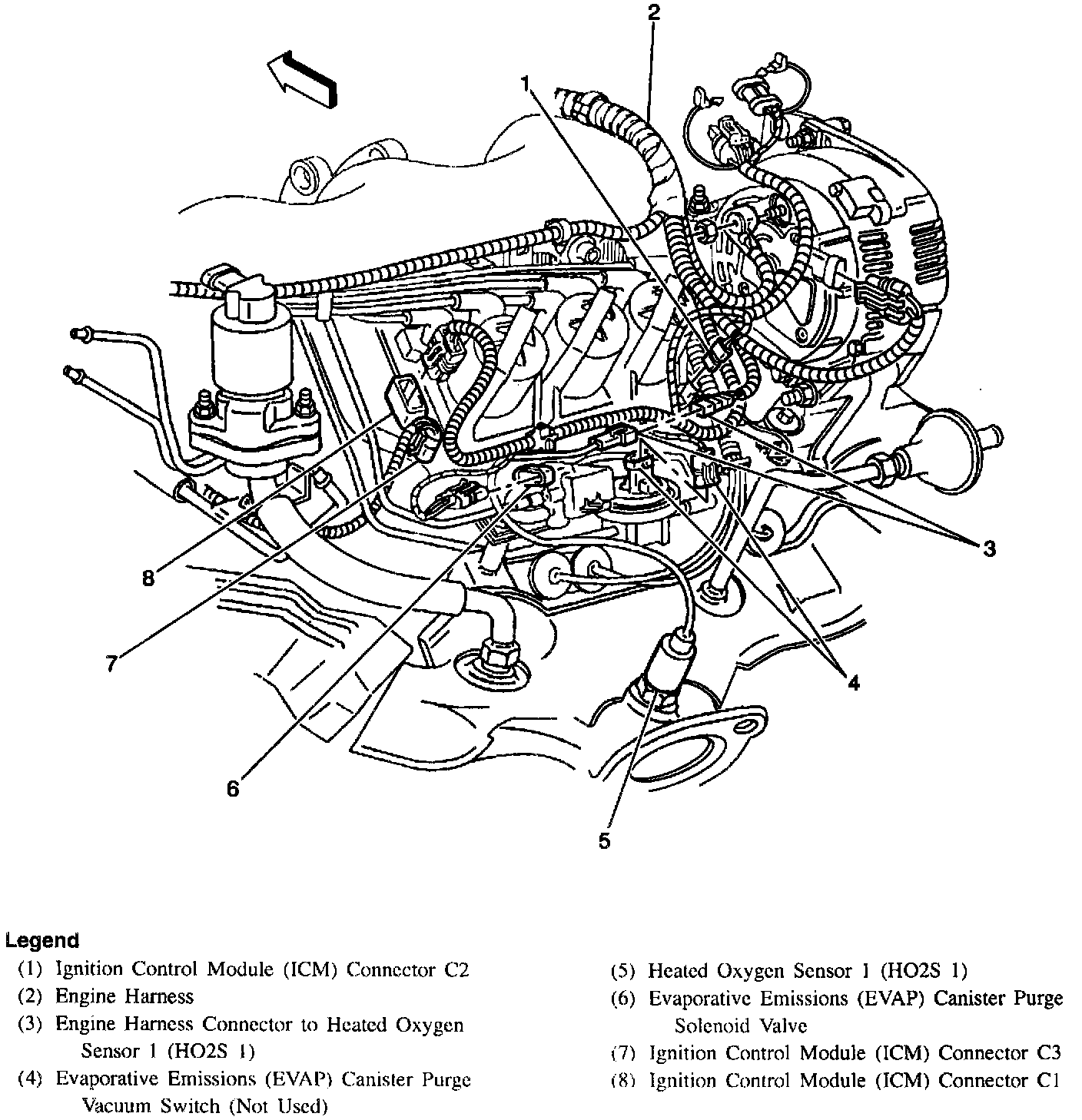

Rear Side Of Engine Compartment:
