Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations >> Component Locations

Component Locations

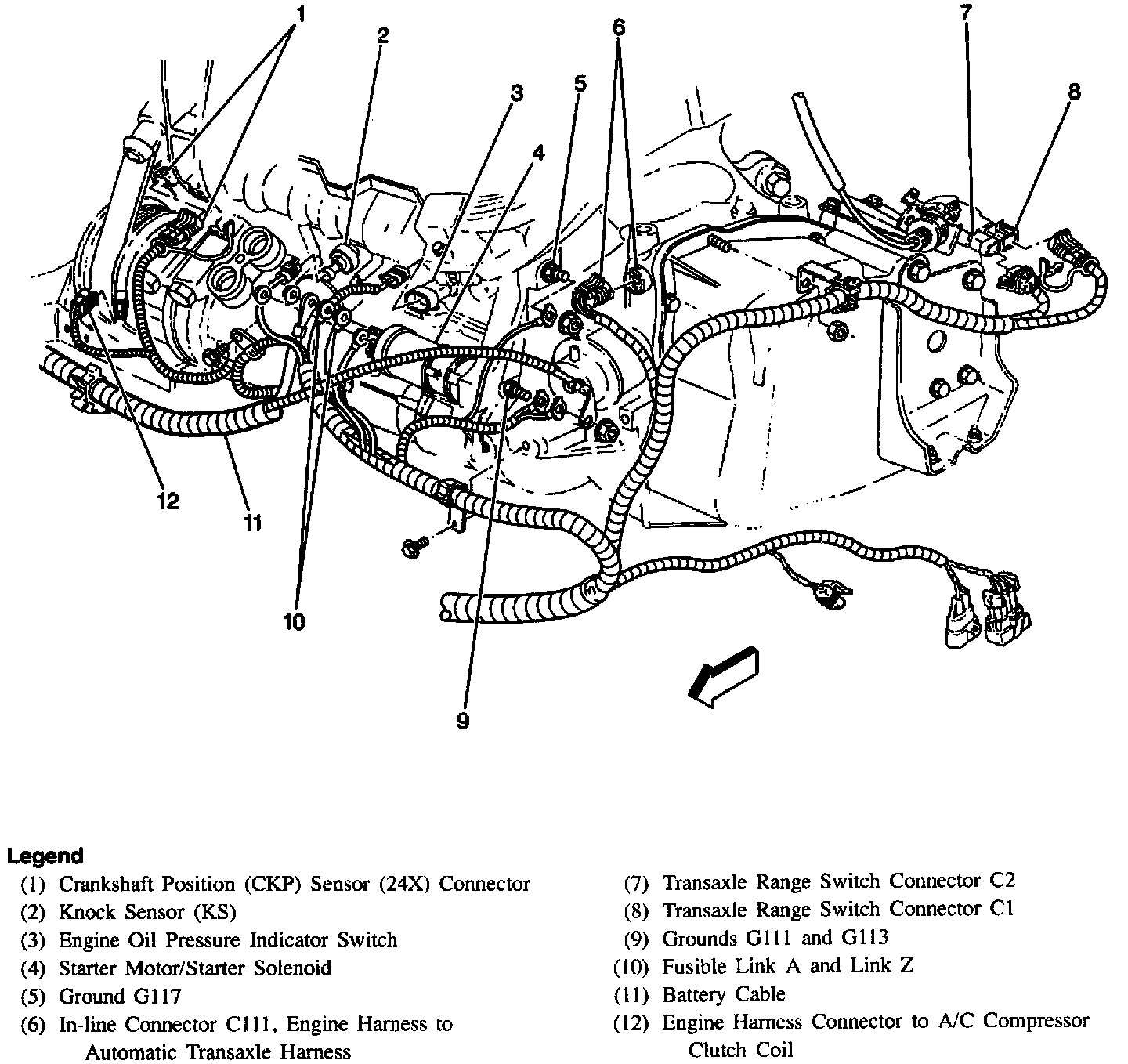

Engine Front Lower:

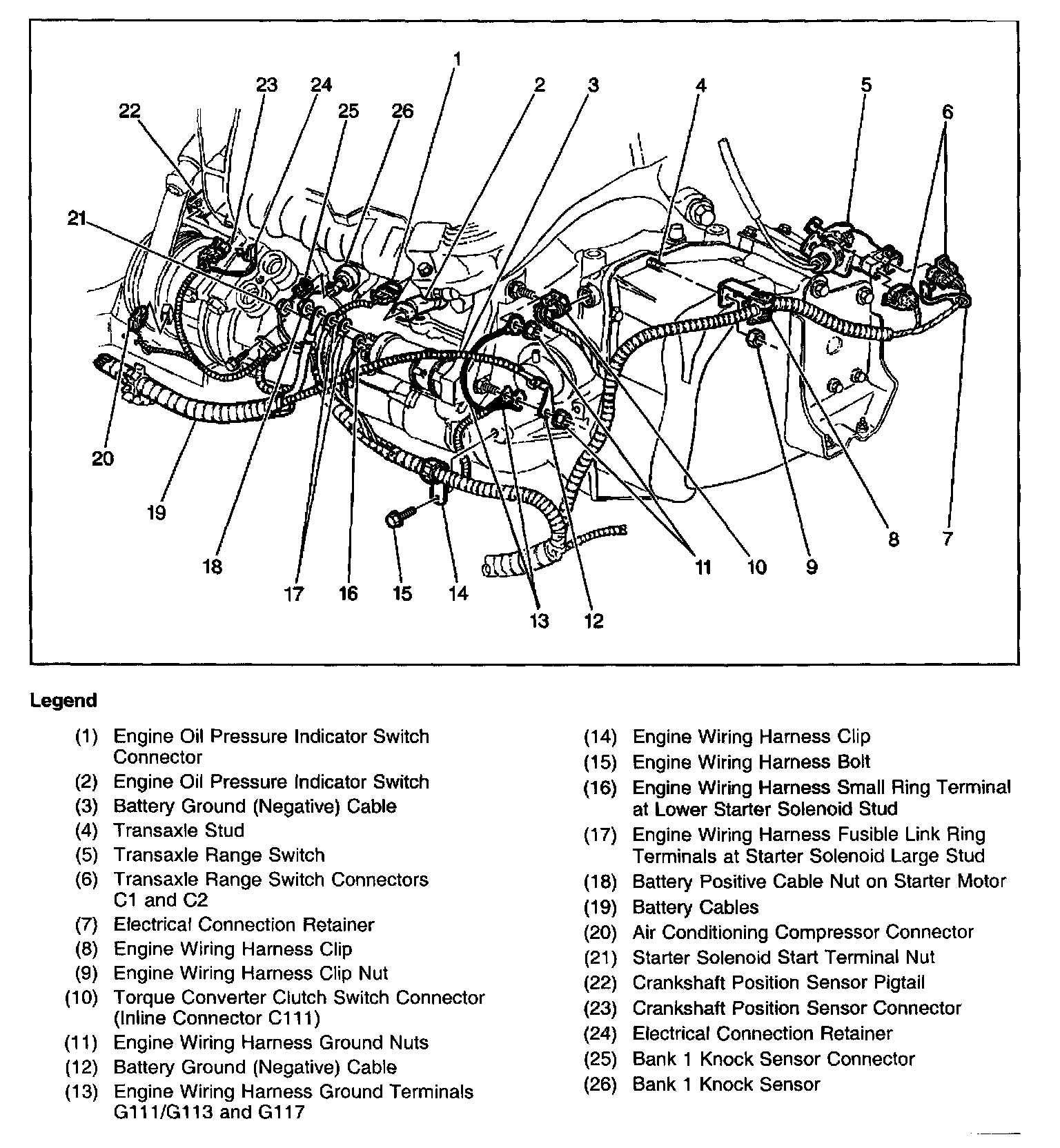

Engine Front Lower:

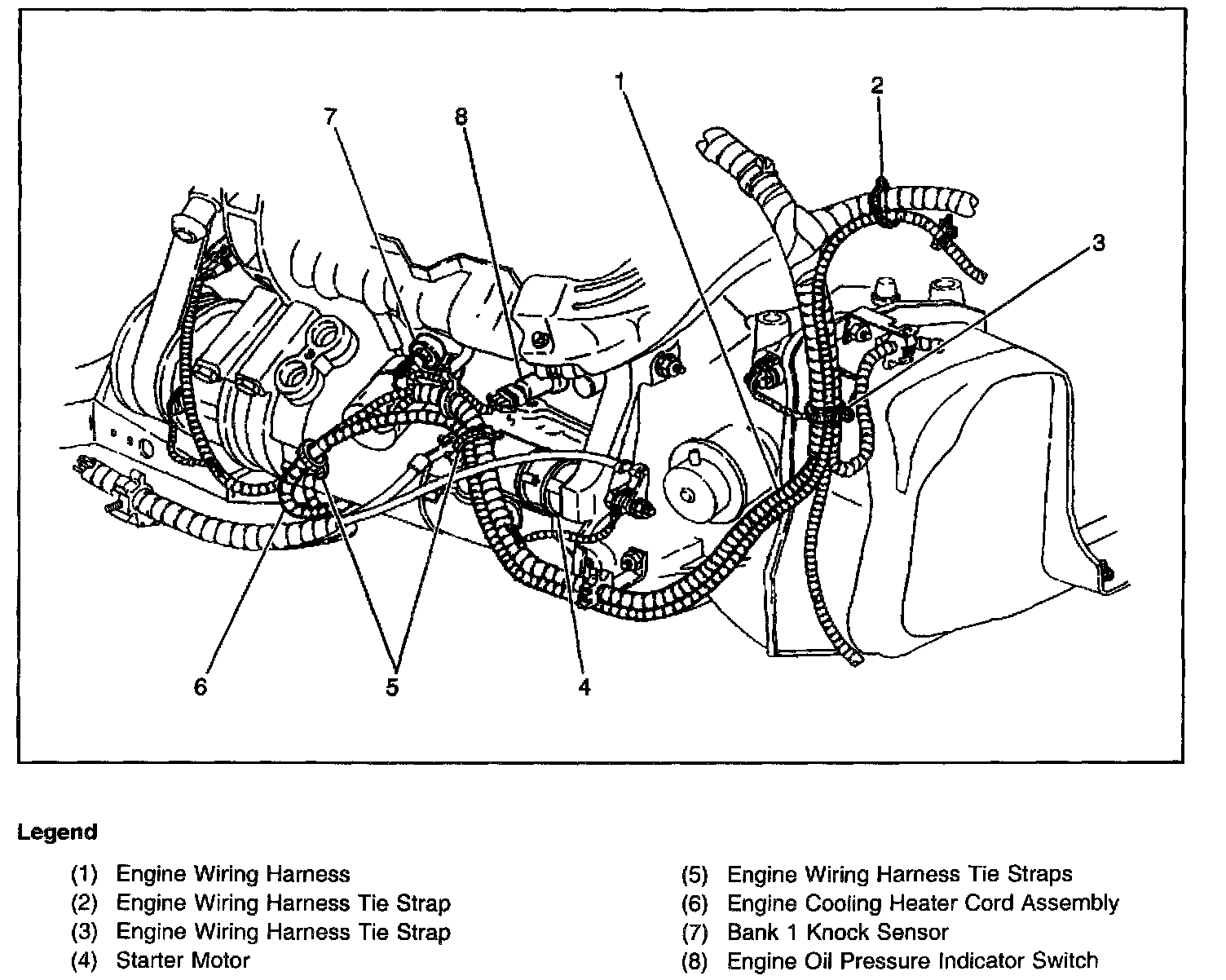

Transaxle With Engine Block Heater (K05):

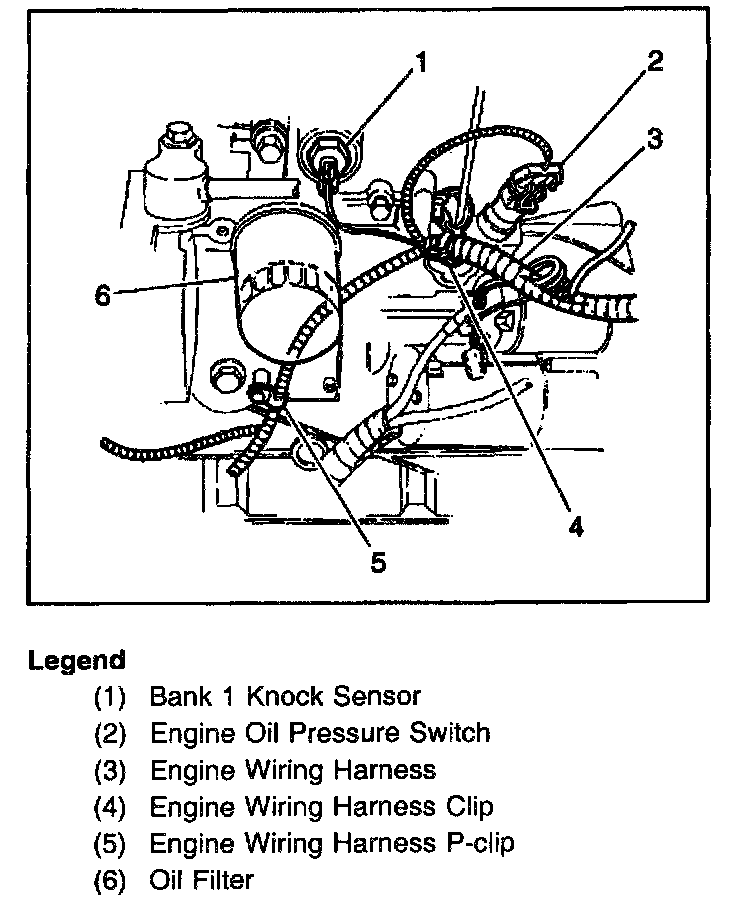

Lower Front Of Engine:
