Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Locations

Power Door Lock Control Module: Locations

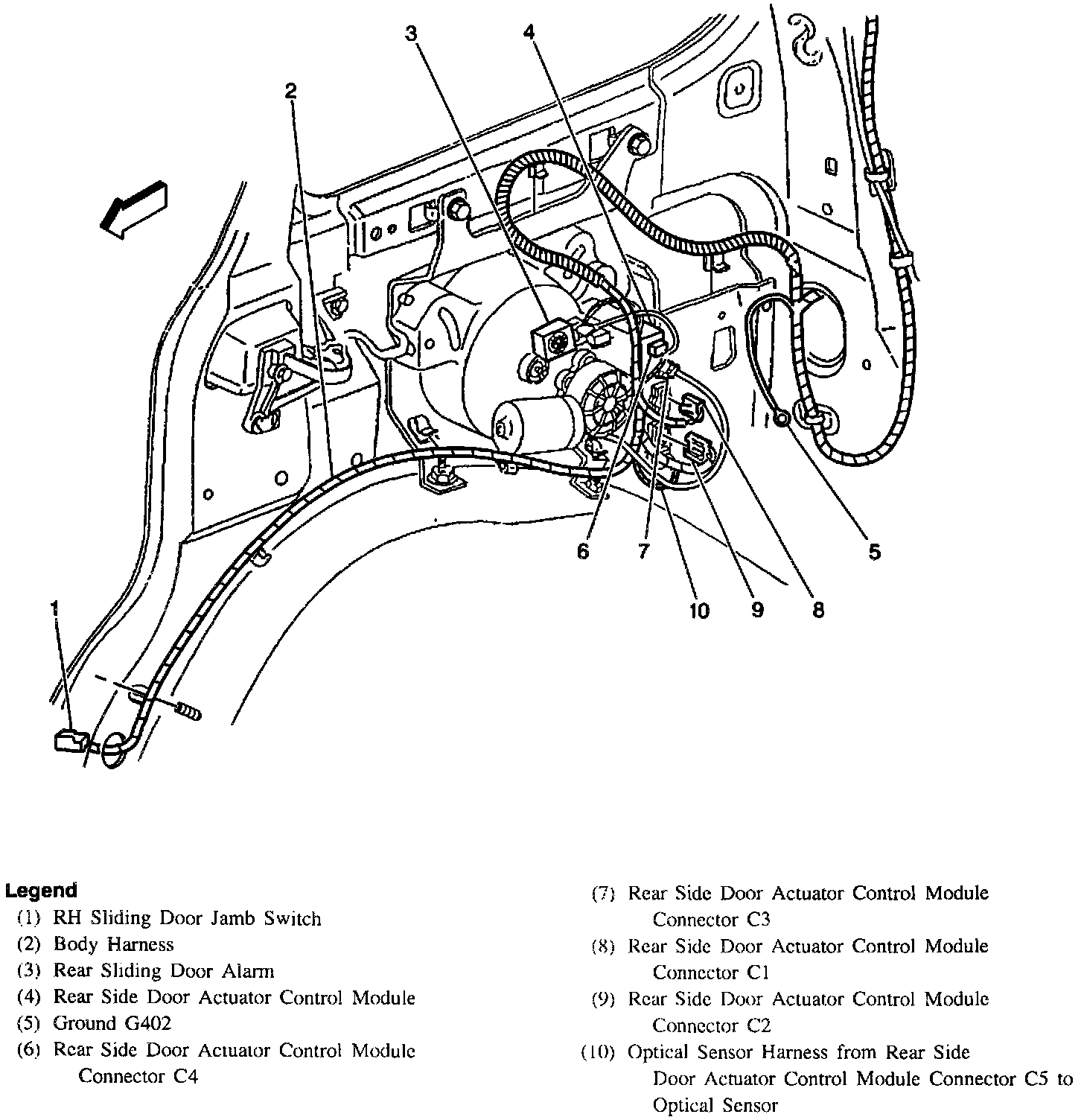

RH Quarter Panel:

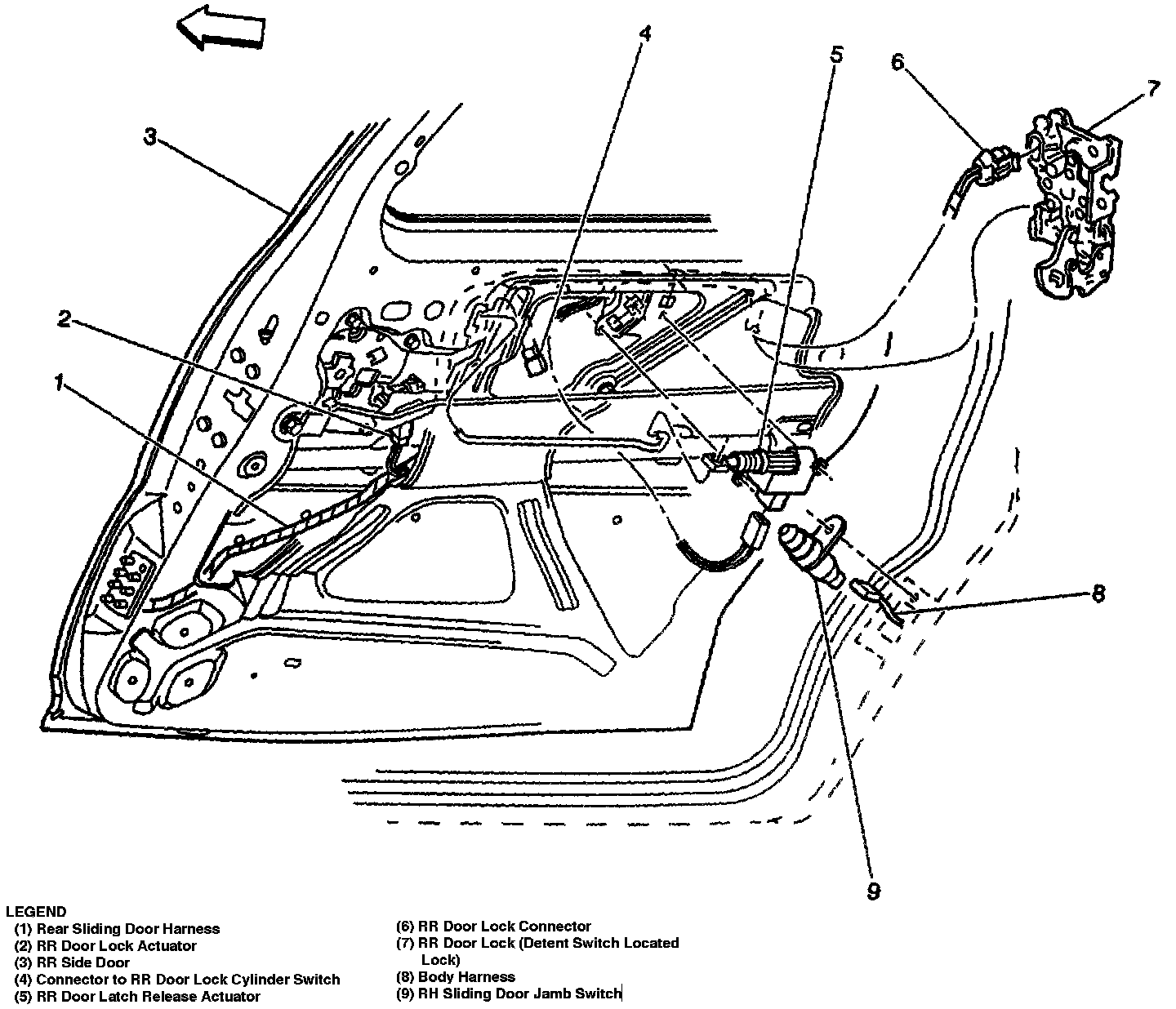

RH Rear Side Door (LH Side Similar):
