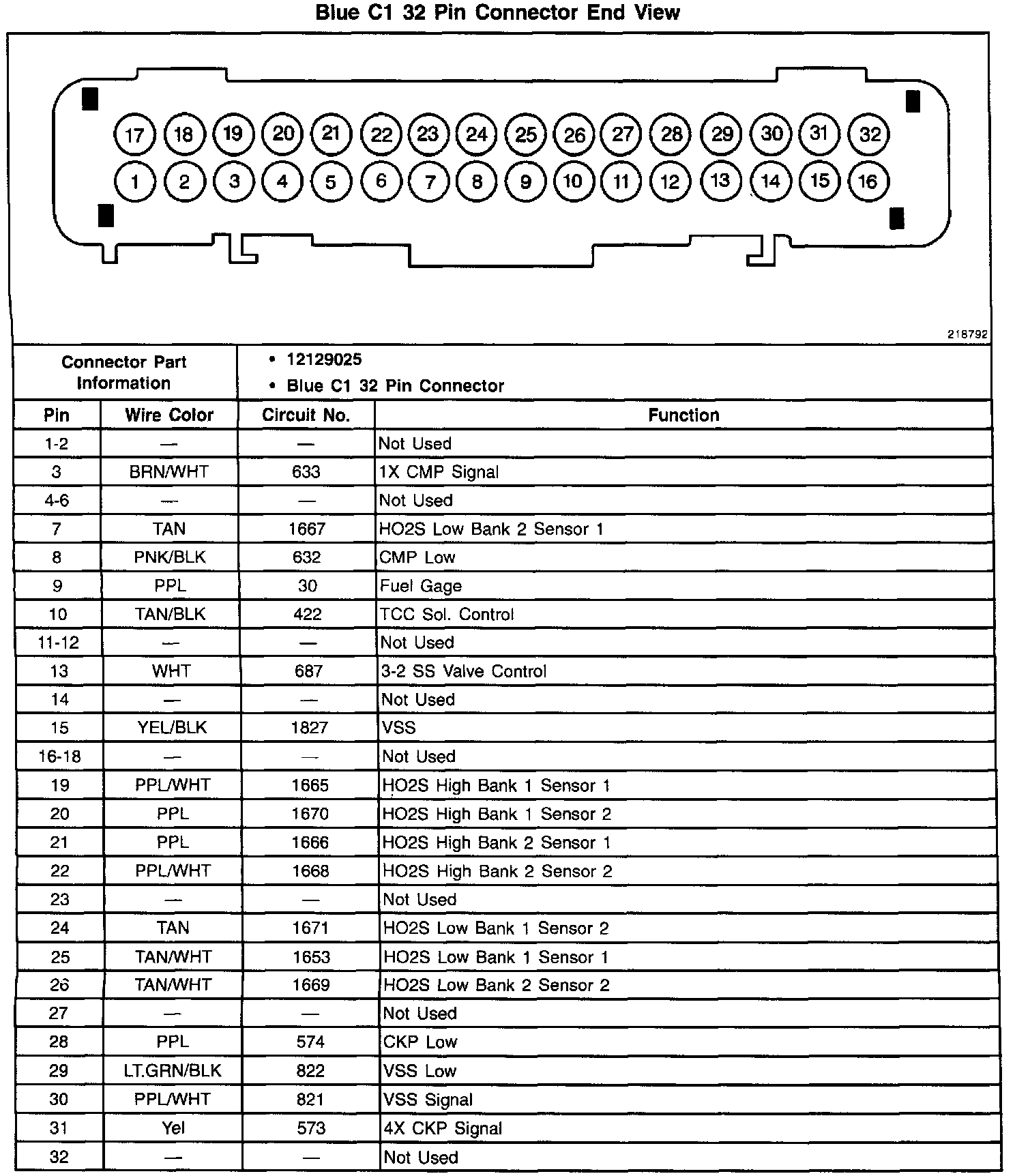

Home >> Chevrolet >> 1998 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Vehicle Control Module (VCM) >> C1 Blue-32 Pin
