Home >> Chevrolet >> 1998 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Specifications >> IP Fuse Block

IP Fuse Block

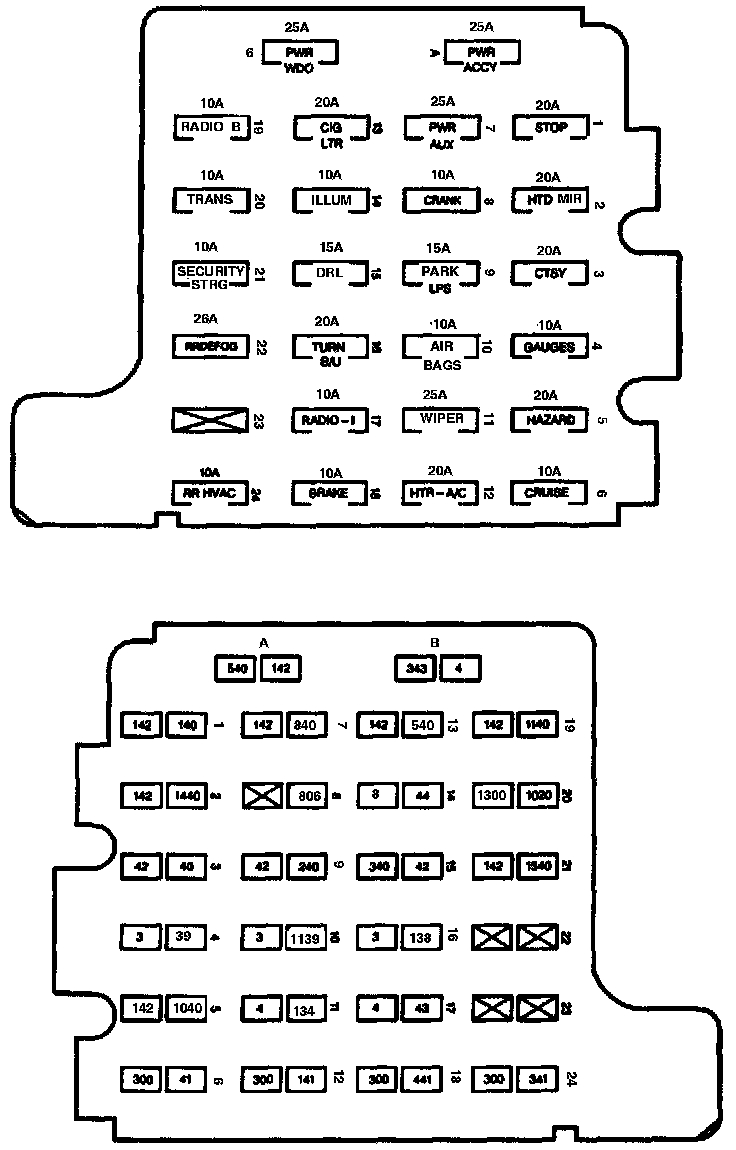

I/P Fuse Block:

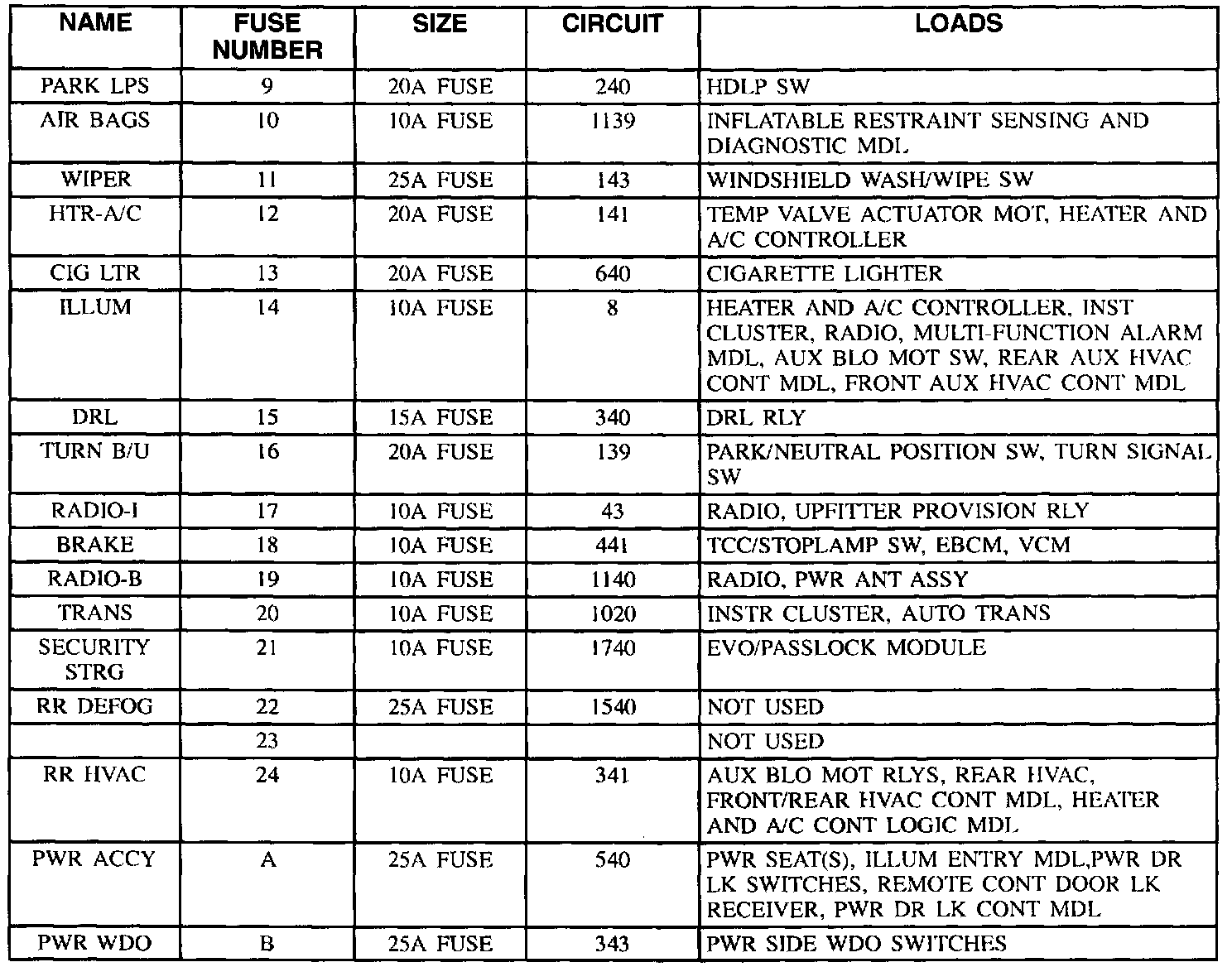

I/P Fuse Block (Part 1 Of 2):

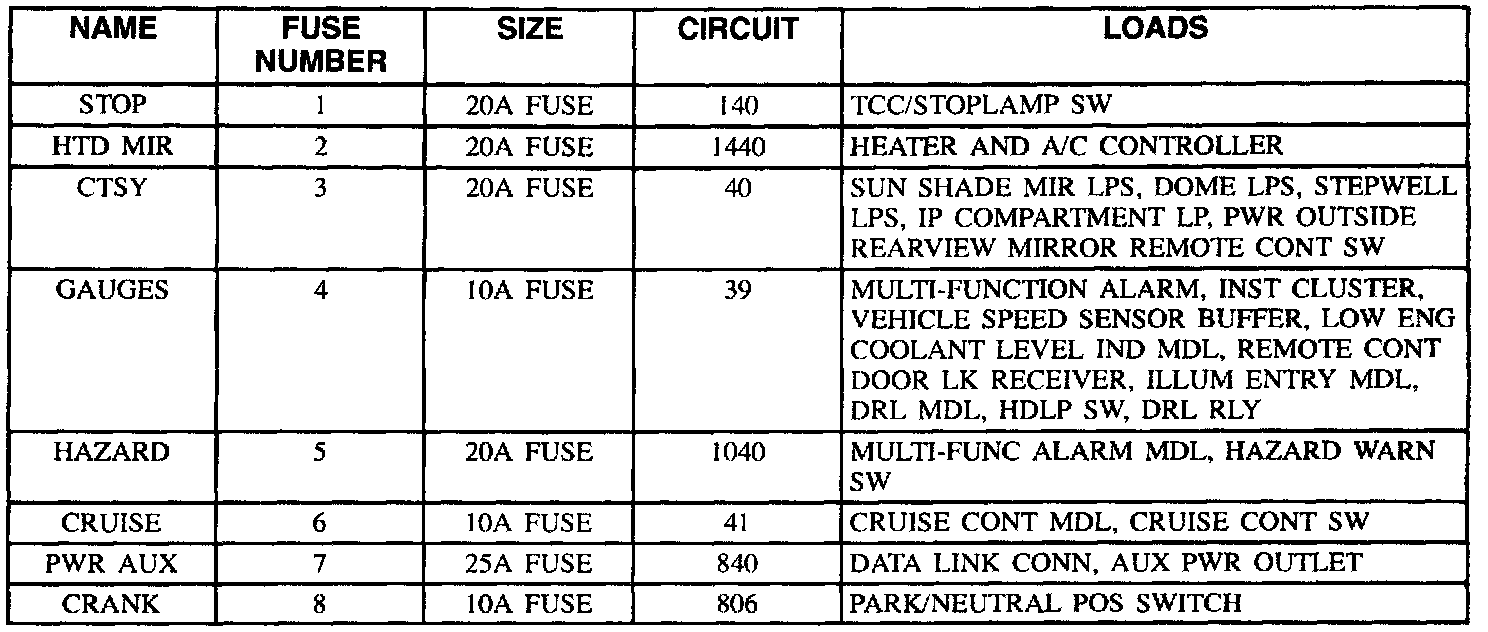

I/P Fuse Block (Part 2 Of 2):
