Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Control Valve Assembly >> Locations

Compressor Control Valve Assembly: Locations

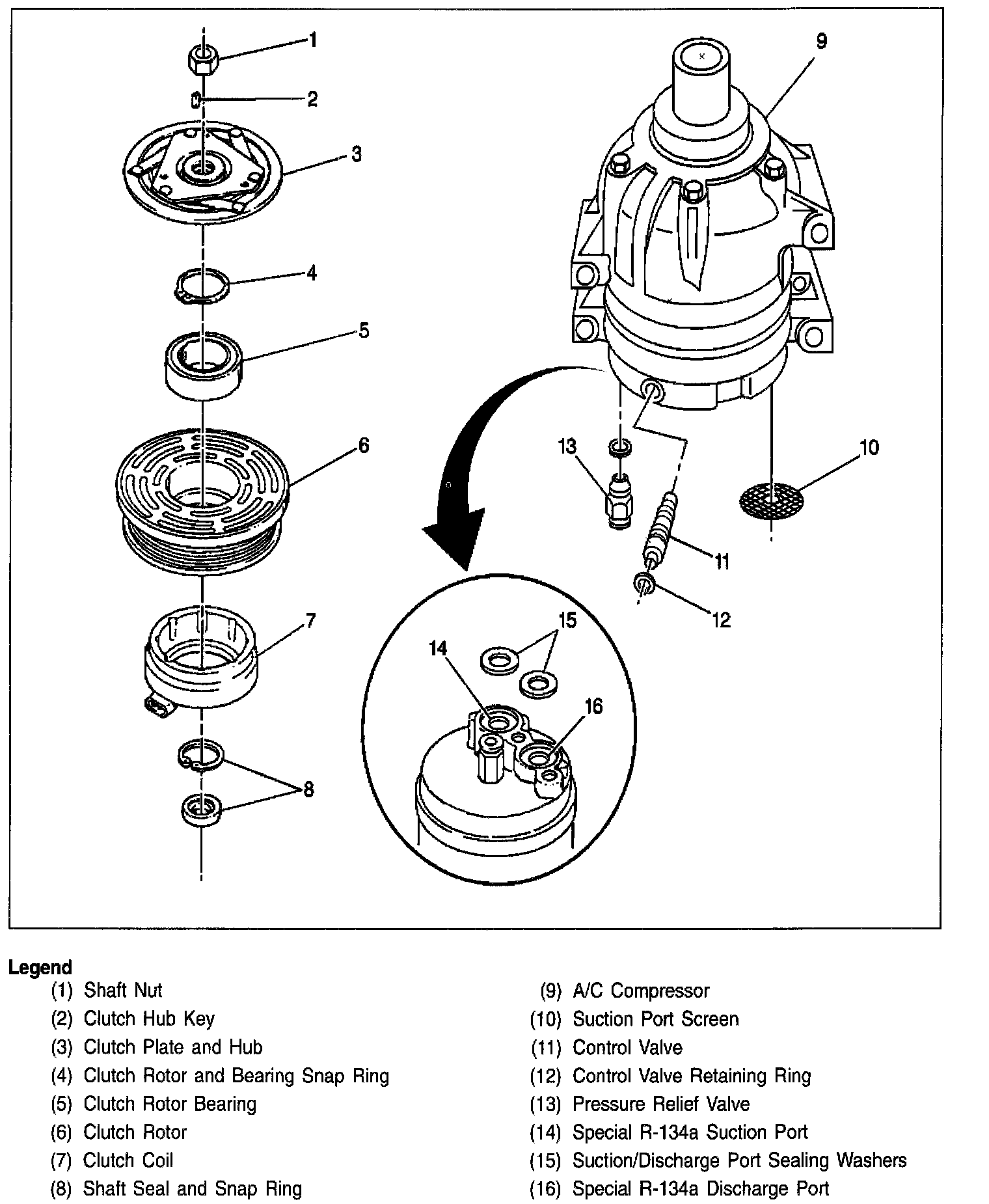

V7 A/C Compressor Components:
