Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Thread Repair Specifications >> Engine Block - Left Side

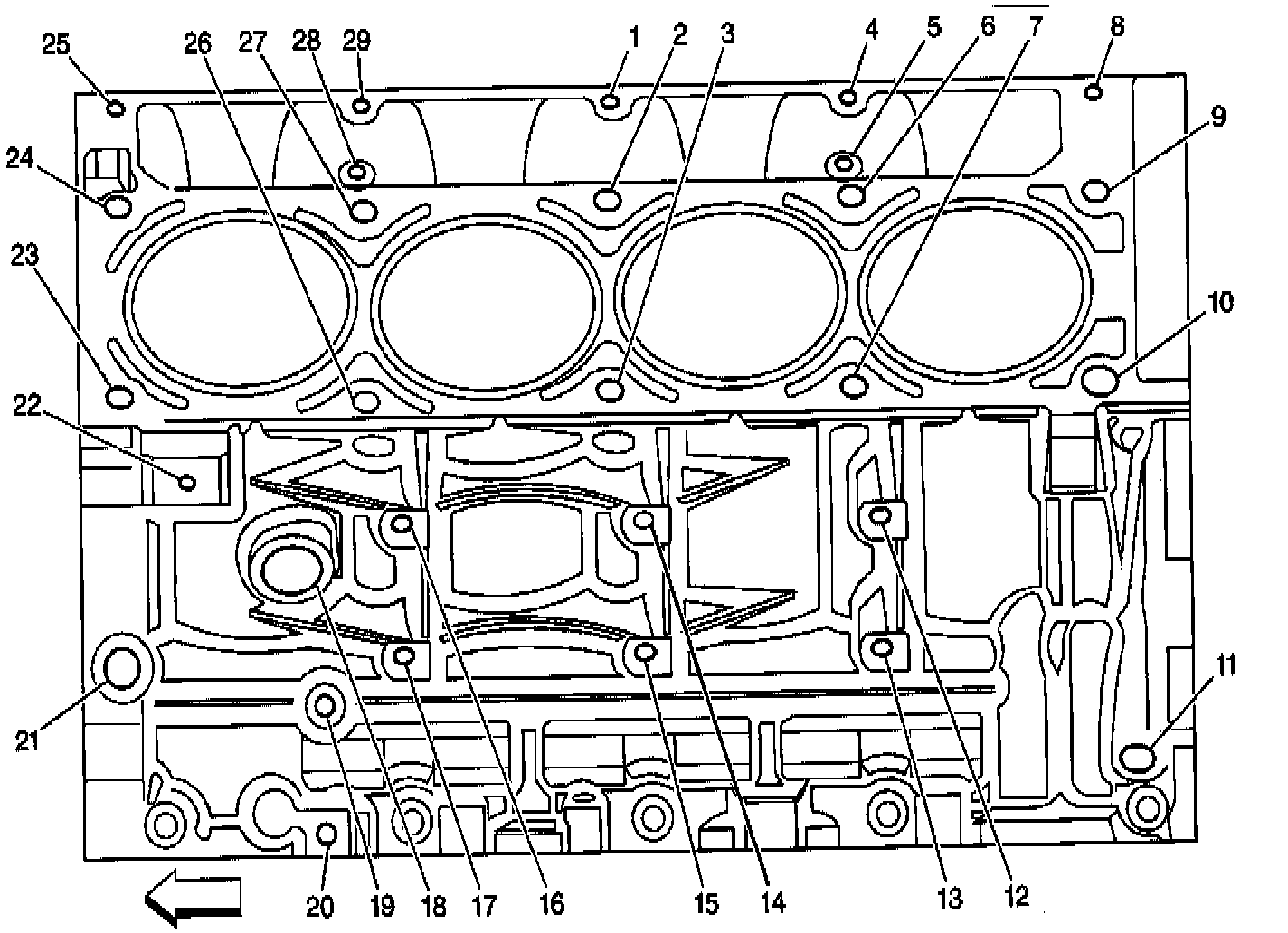

Engine Block - Left Side

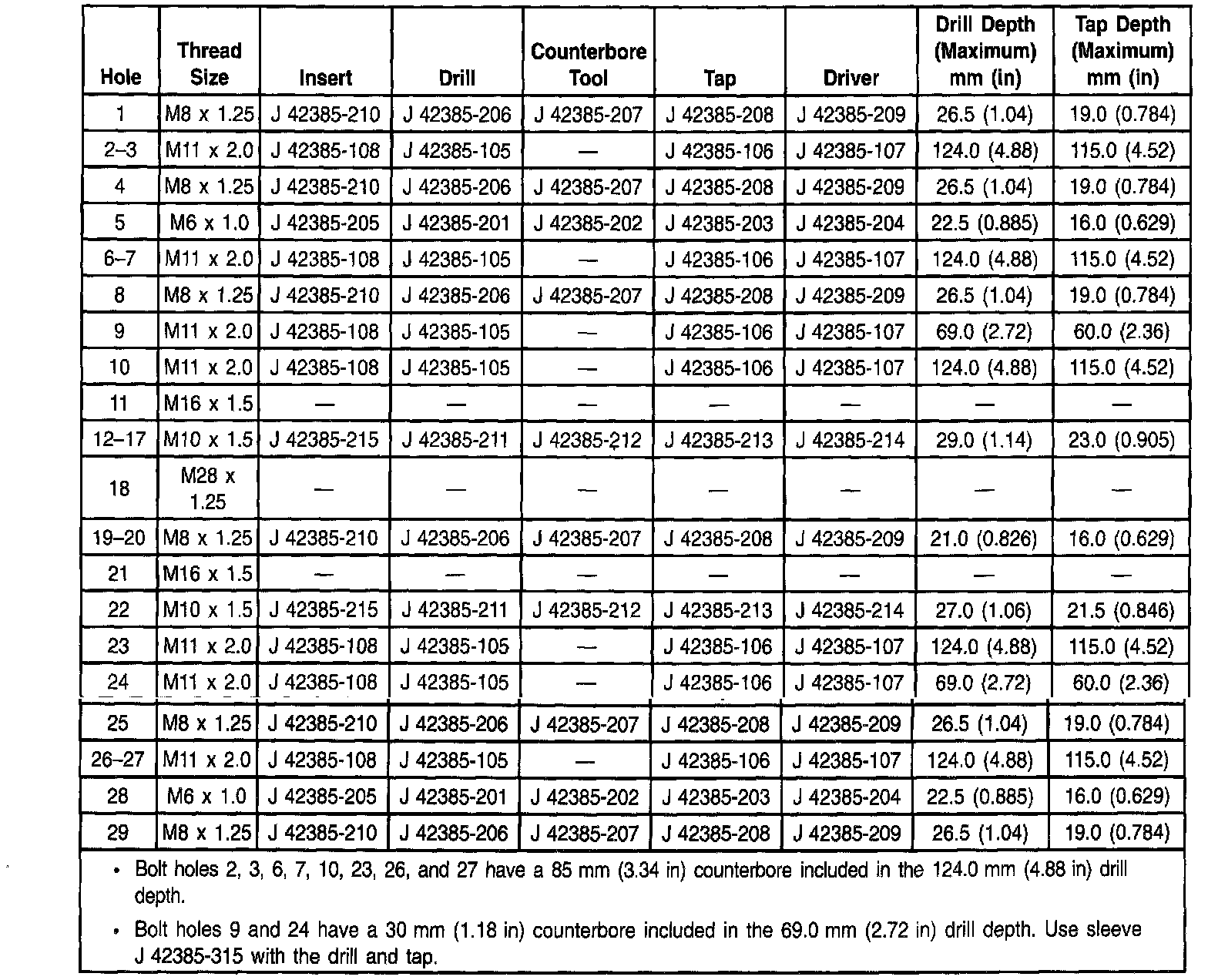

Engine Block - Left Side, Part 1 Of 2:



Engine Block - Left Side, Part 2 Of 2:
