Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Door Control Module, LH

Door Control Module, LH

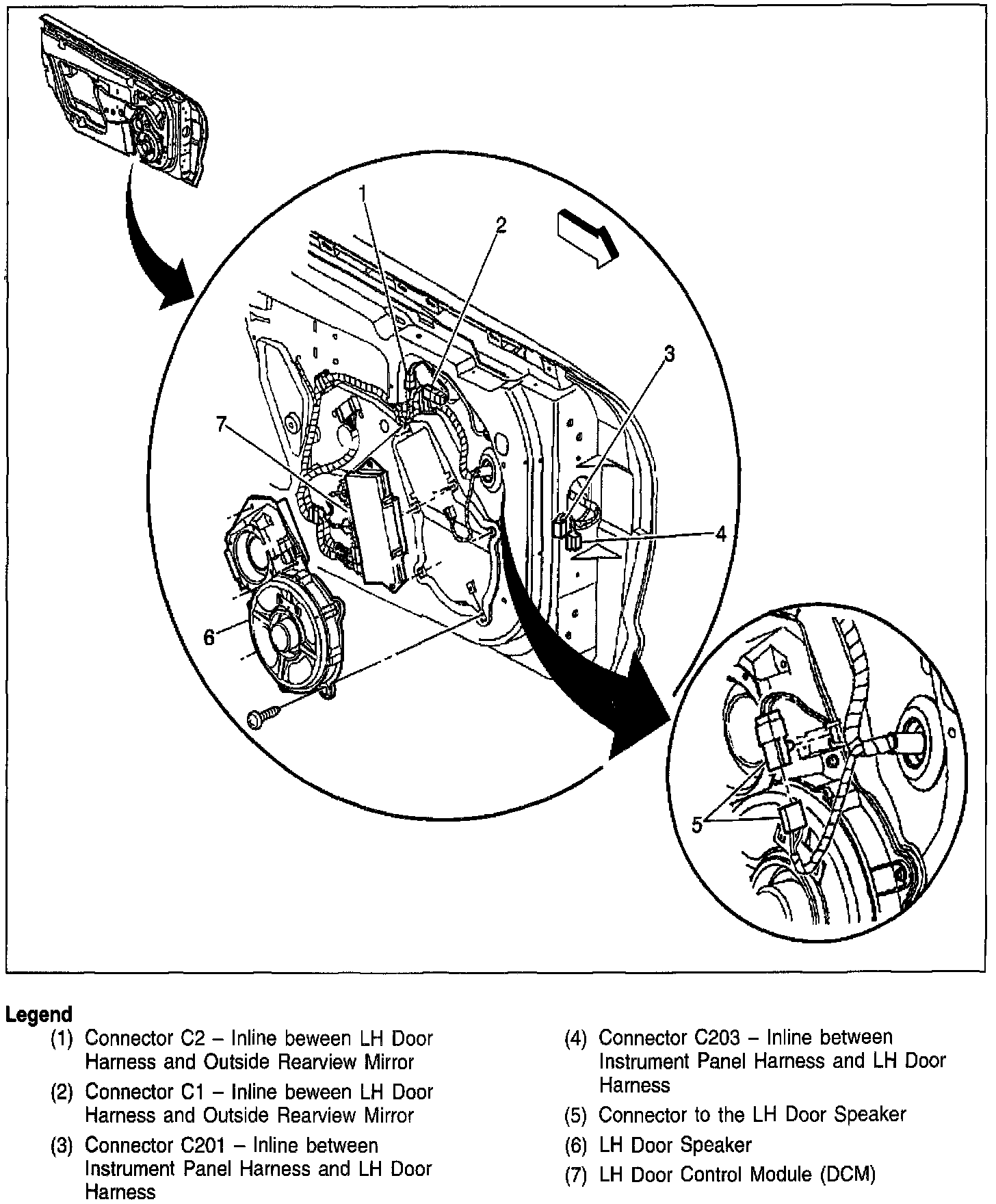

Inside LH Door:

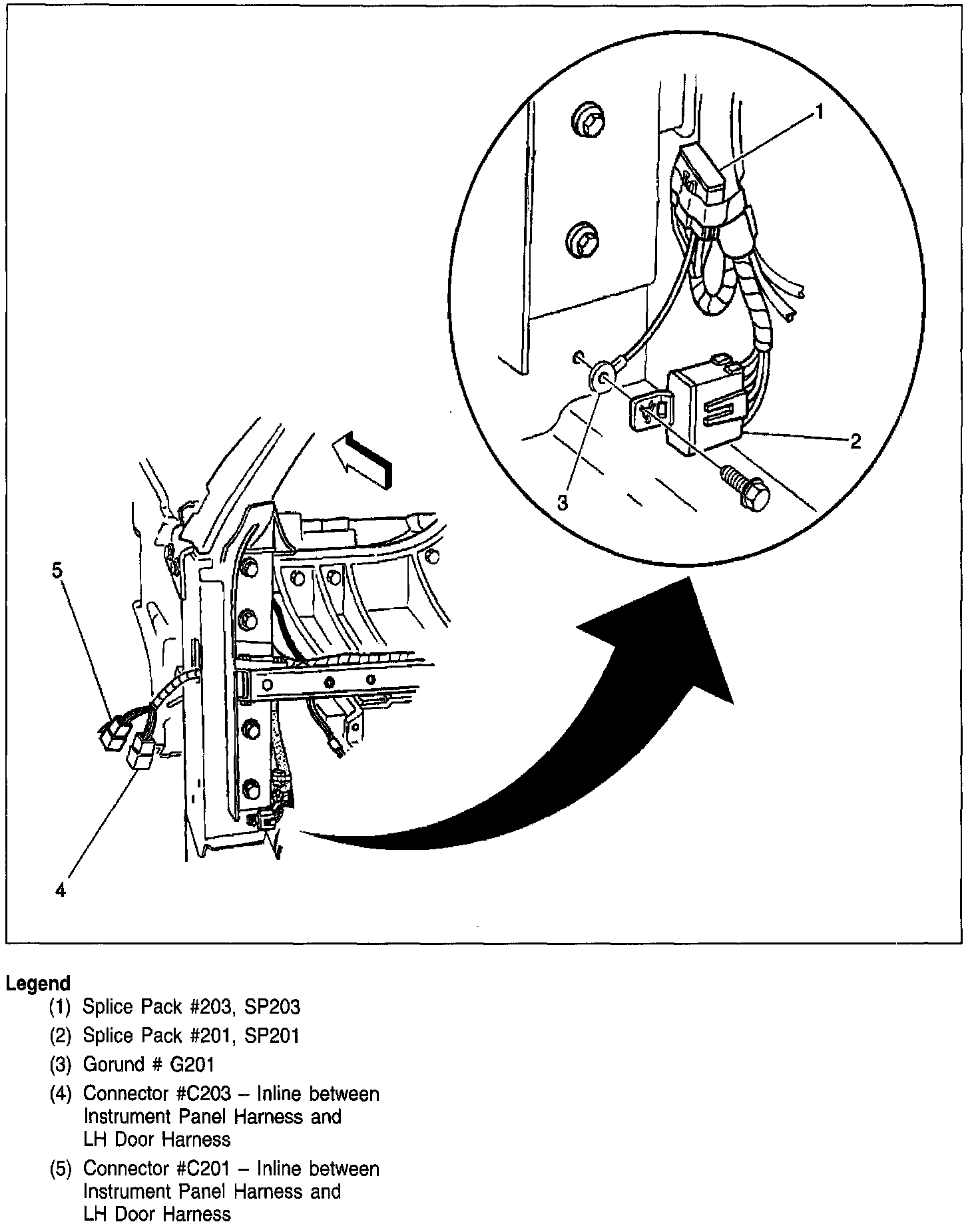

Bottom Of The LF A-Pillar:
