Installation Procedure

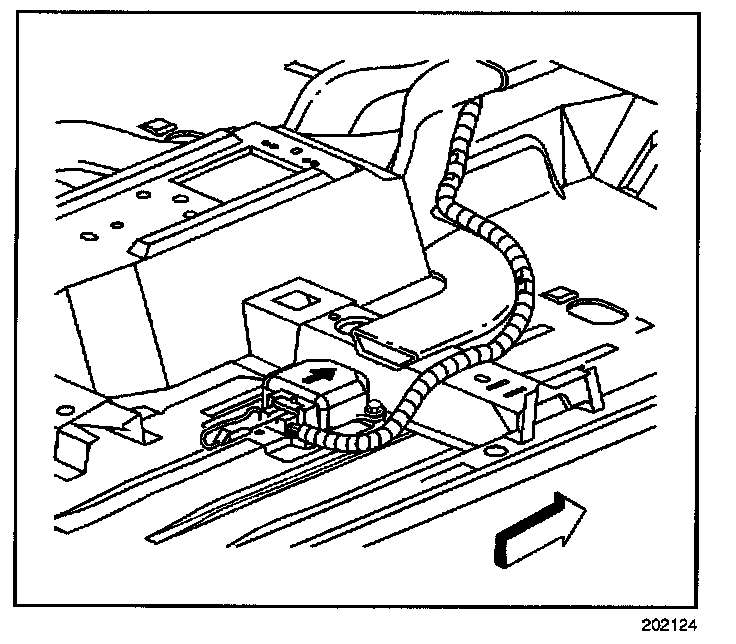

1. Install the SDM (1) to the floor pan (3).

NOTICE: Refer to Fastener Notice in Vehicle Damage Warnings.

2. Install the SDM mounting fasteners (2).

Tighten
Tighten fasteners to 14 N.m (124 lb. in).

Description:

3. Install the SDM harness connector to the SDM.






4. Install the Connector Position Assurance (CPA) to the SDM harness connector.
5. Install the carpet and the passenger front carpet retainer.
6. Install the passenger front seat.
7. Enable the SIR system. Refer to Enabling the SIR System.
