LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1998
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
Suspension

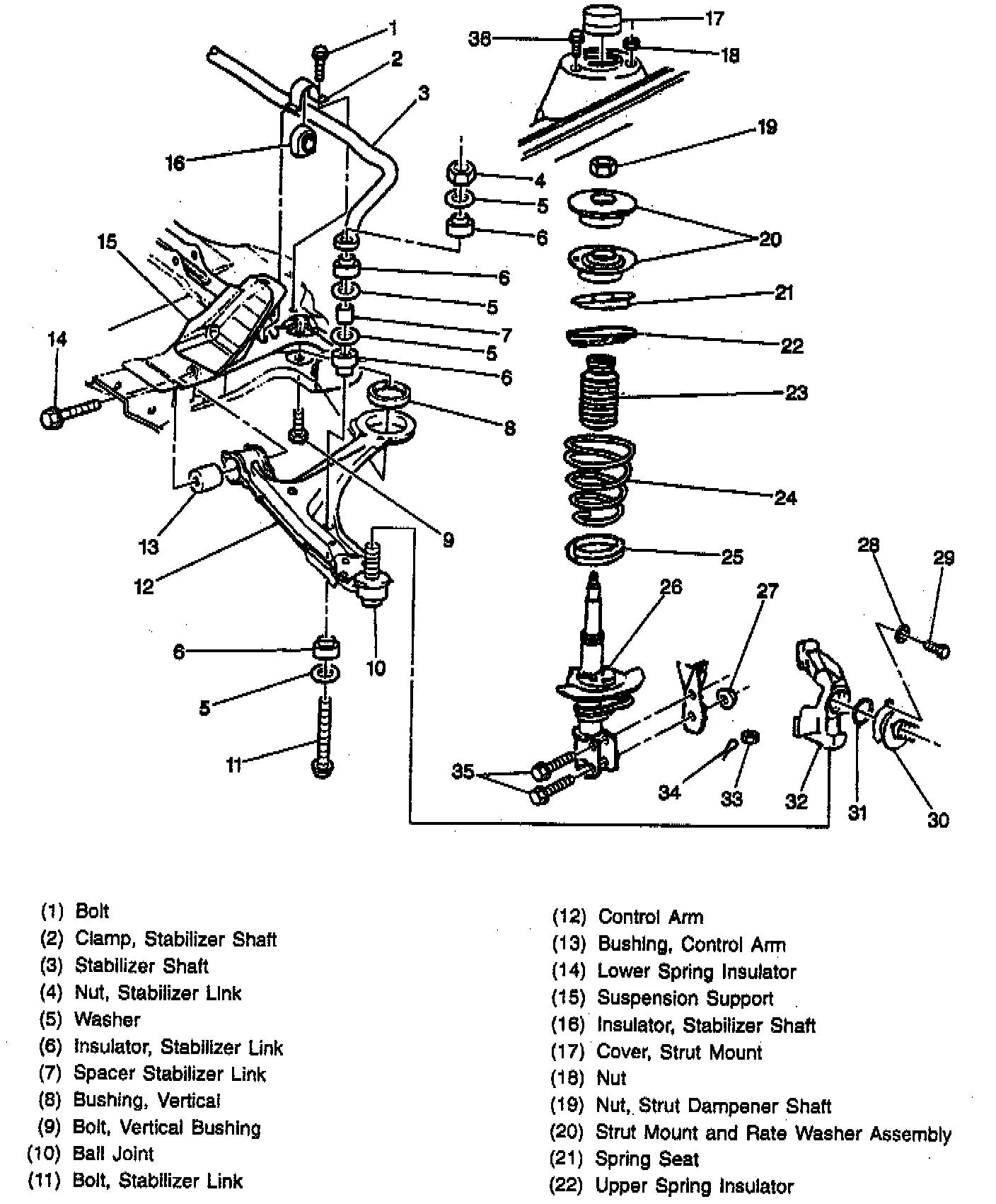

Front Suspension Assembly - Part 1 Of 2:

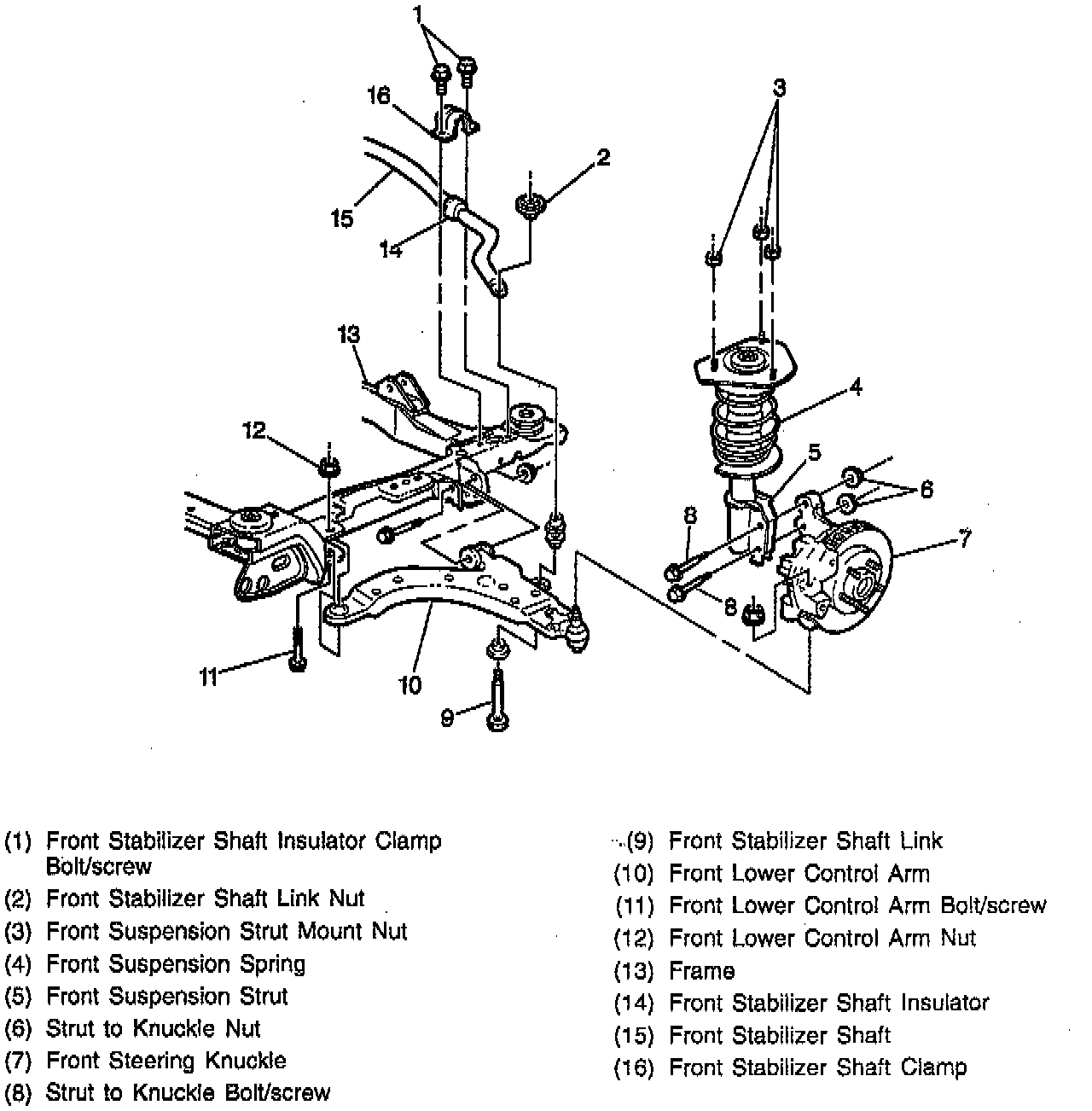

Front Suspension Assembly - Part 2 Of 2:

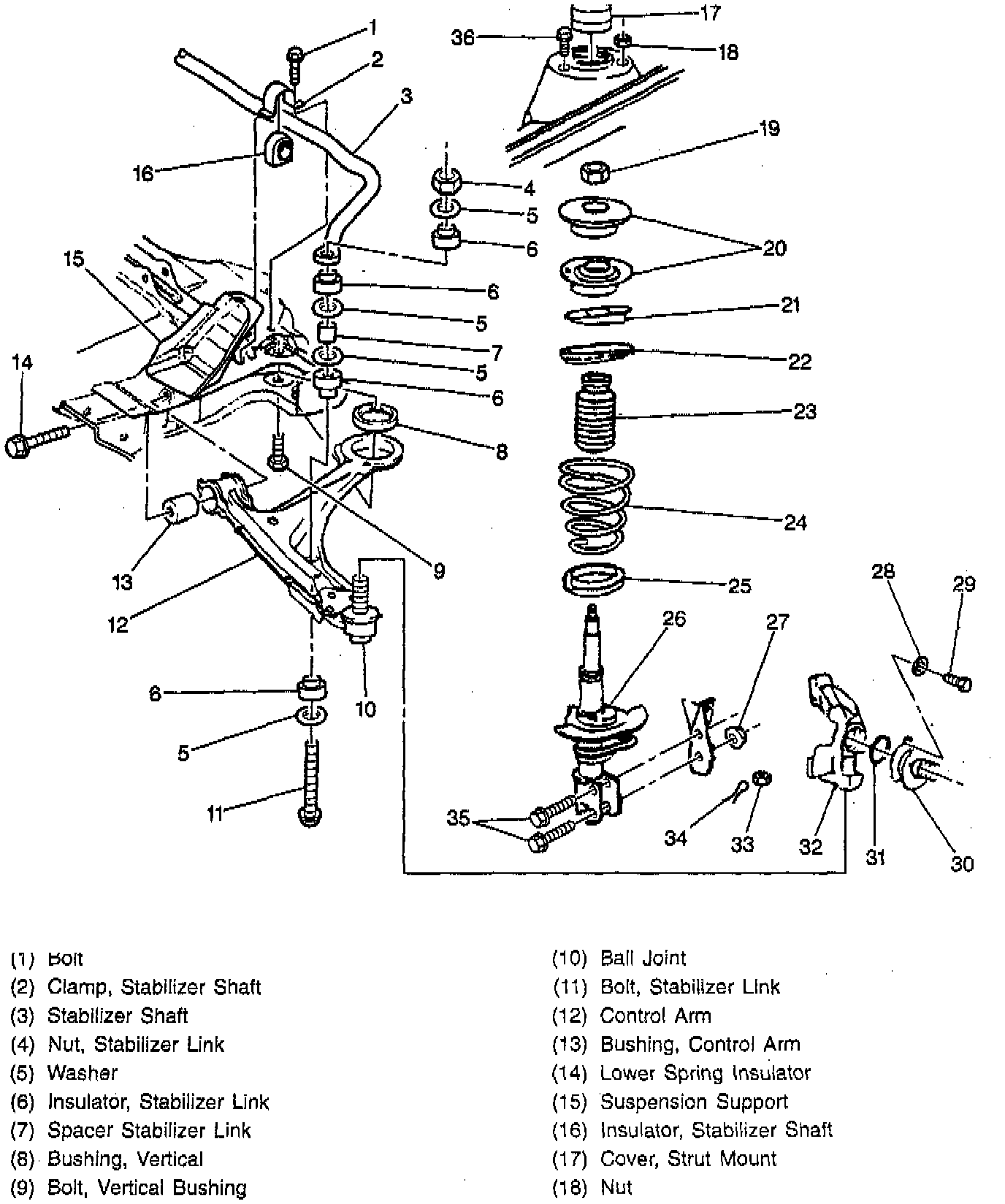

Front Suspension Assembly - Part 1 Of 2:
Front Suspension Assembly - Part 2 Of 2:
