LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1998
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Switch
Master Window Switch

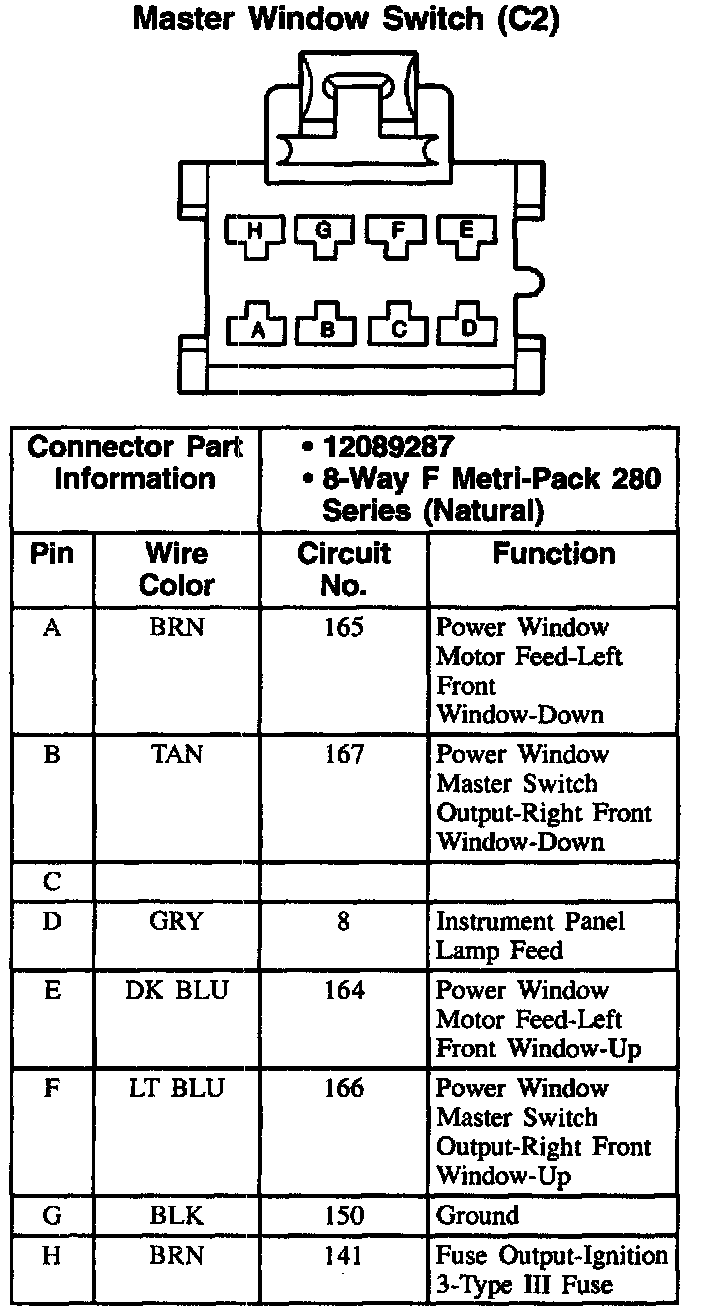

Master Window Switch (C2):
Master Window Switch (C1):
