Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> C1

C1

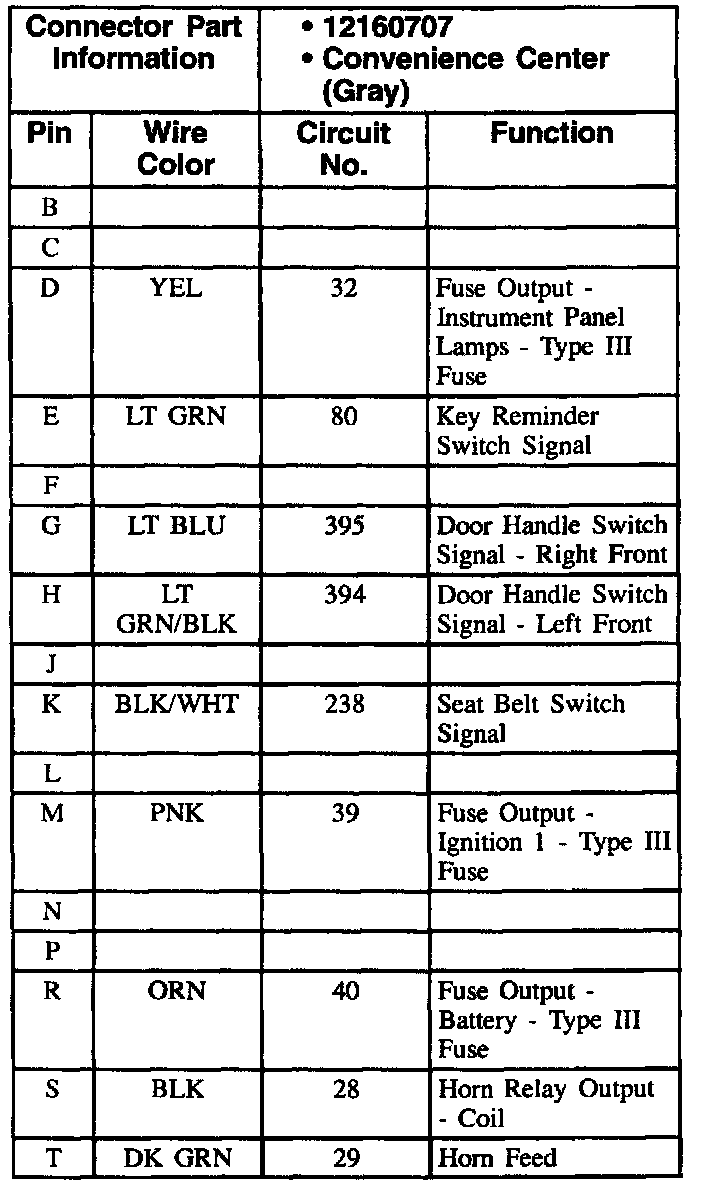

Convenience Center (C1) (Part 1 Of 2):



Convenience Center (C1) (Part 2 Of 2):
