Manual Transmission/Transaxle

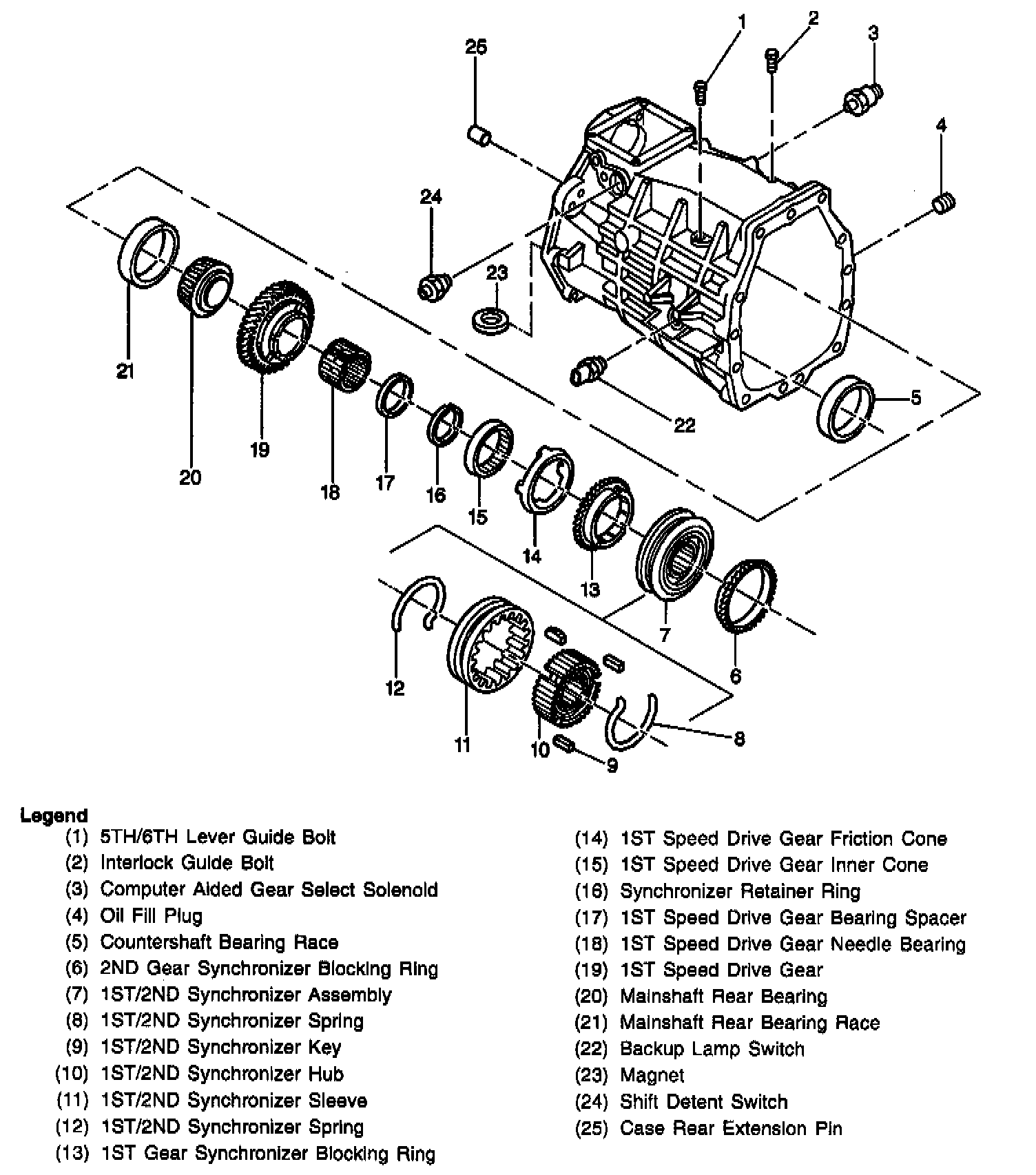

TRANSMISSION CASE (1 OF 2)

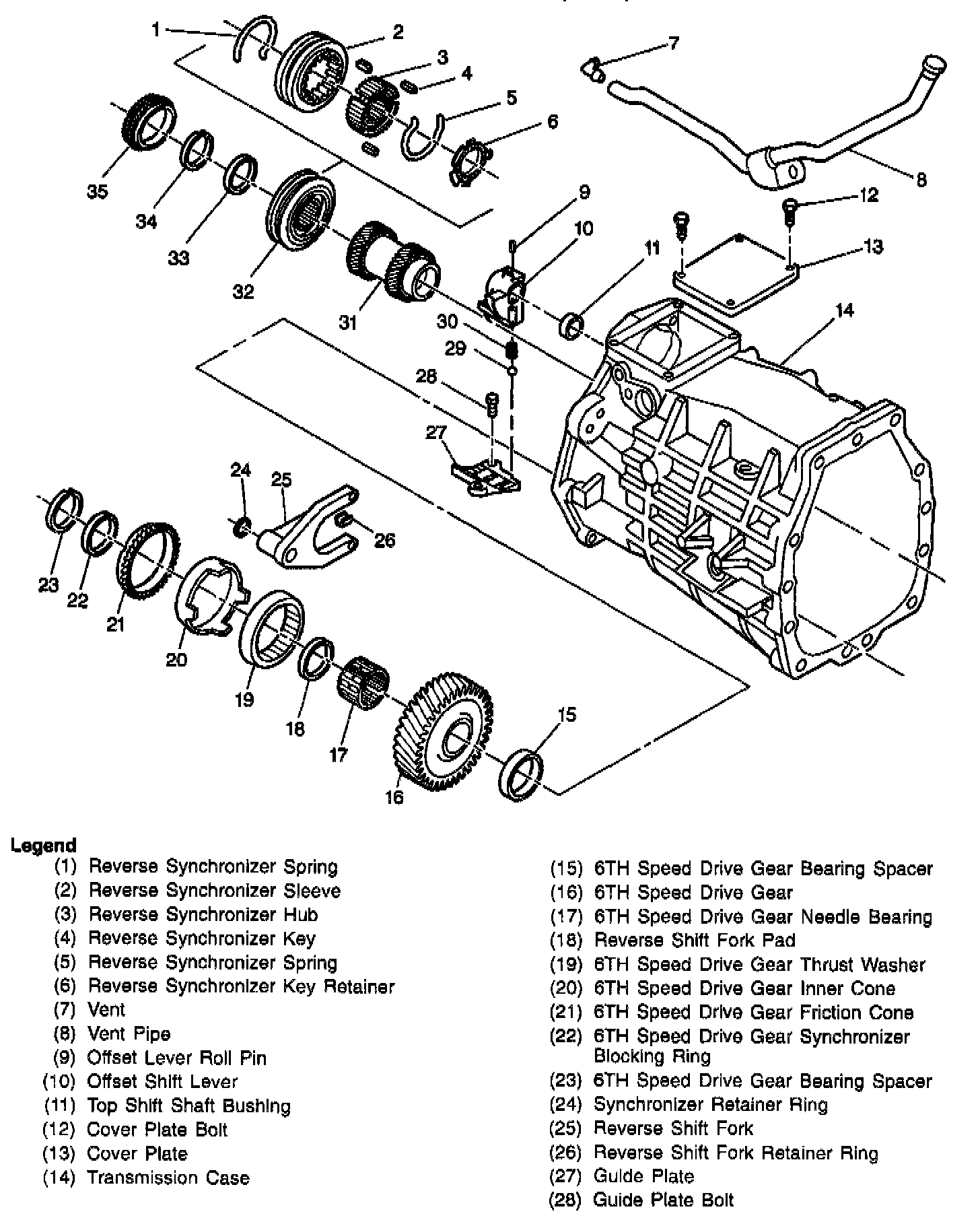

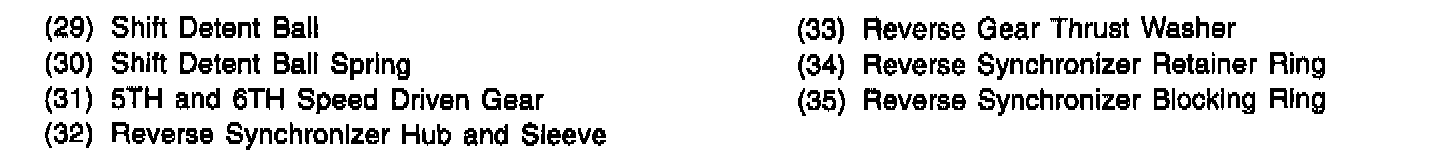

TRANSMISSION CASE (2 OF 2)

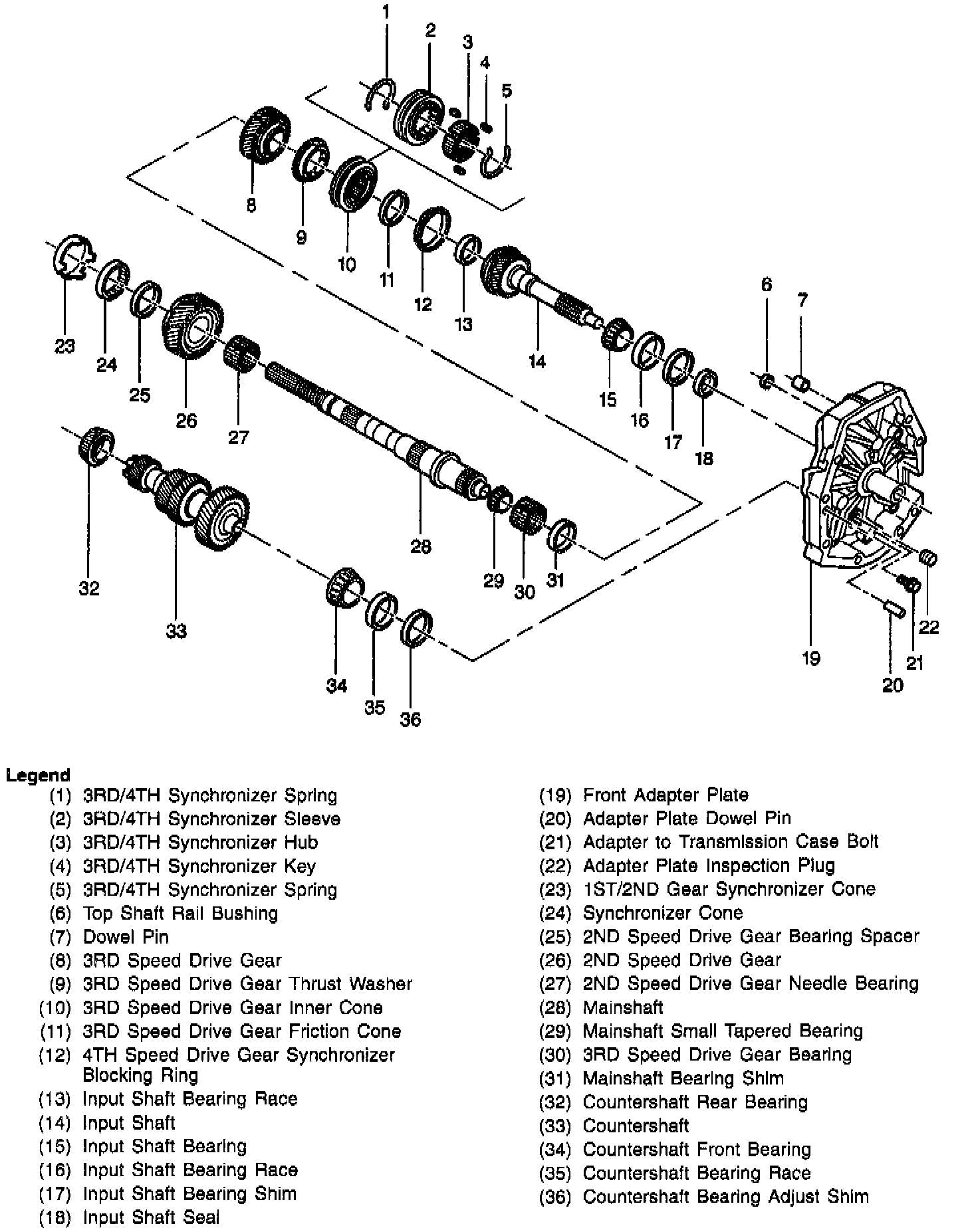

ADAPTER PLATE AND GEARS

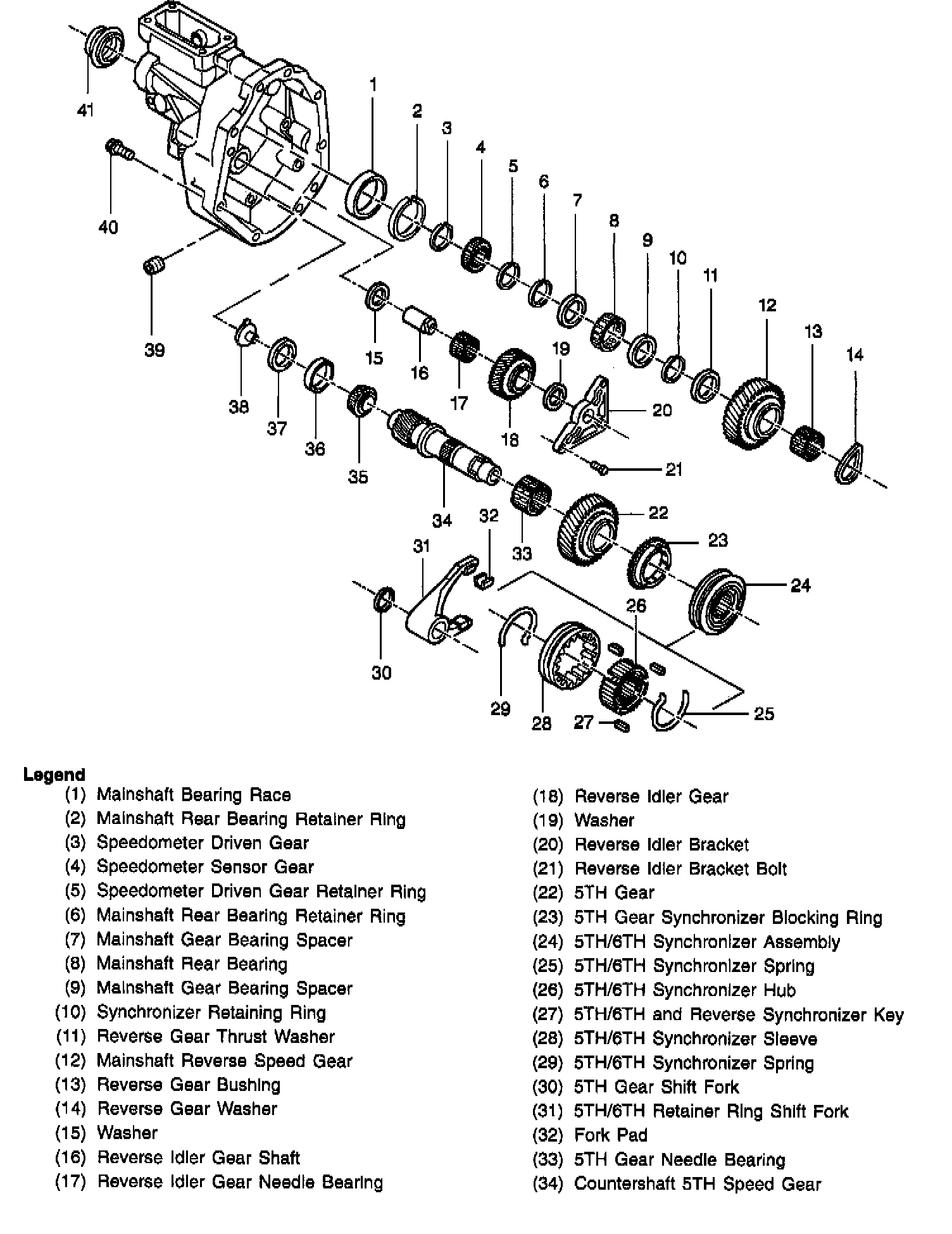

EXTENSION HOUSING

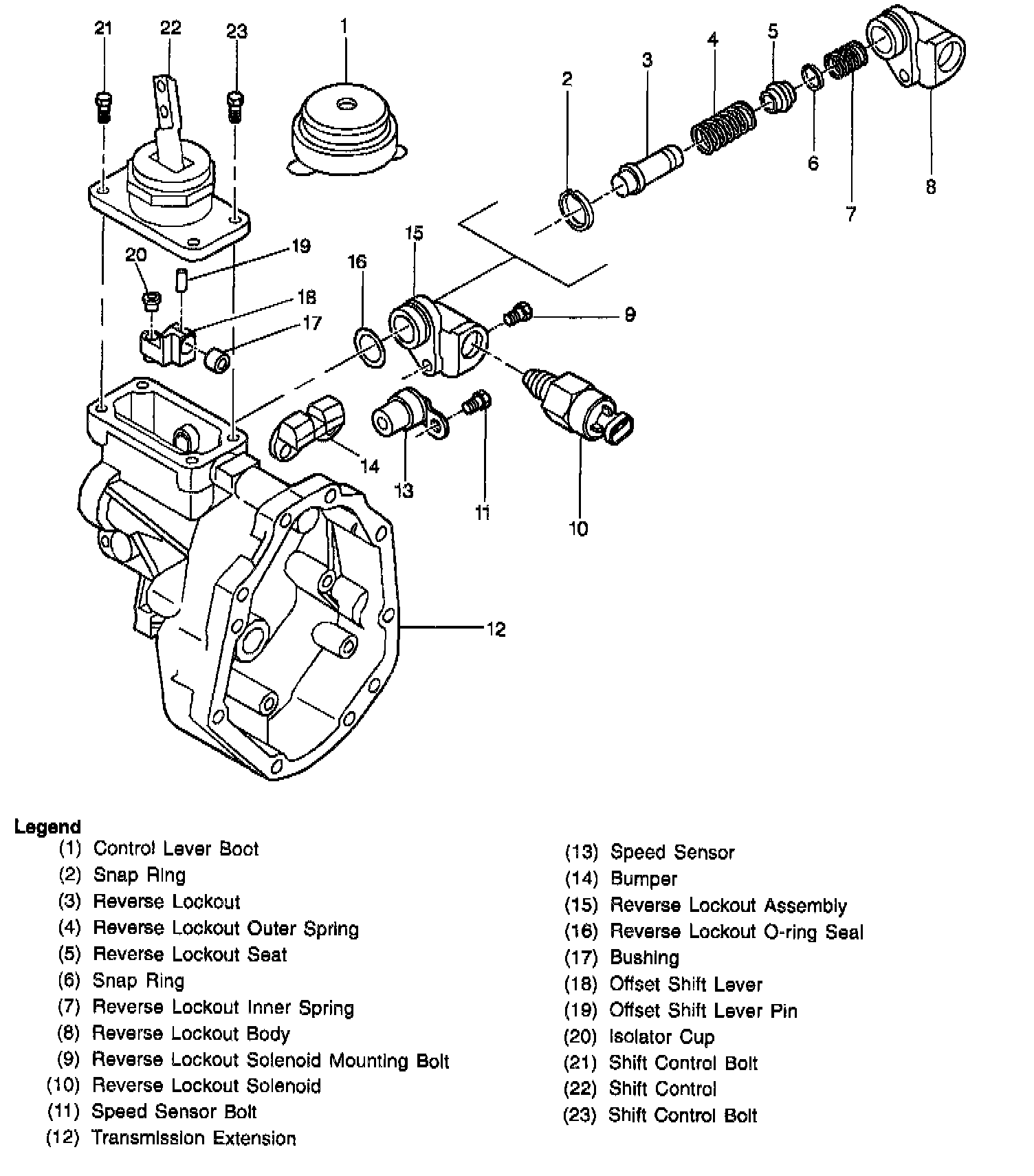

REVERSE LOCKOUT

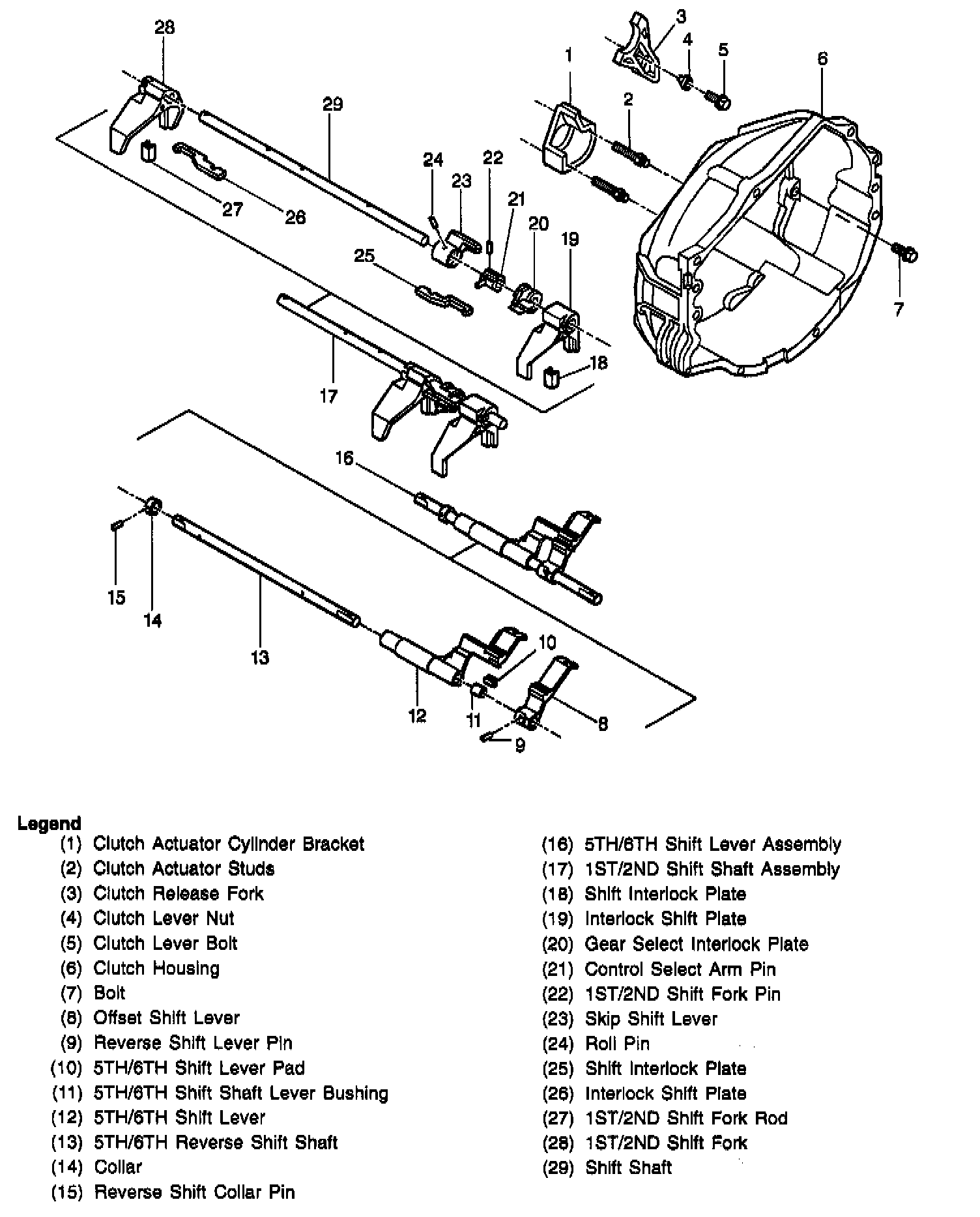

SHIFT SHAFTS
