Wiper Module, Rear

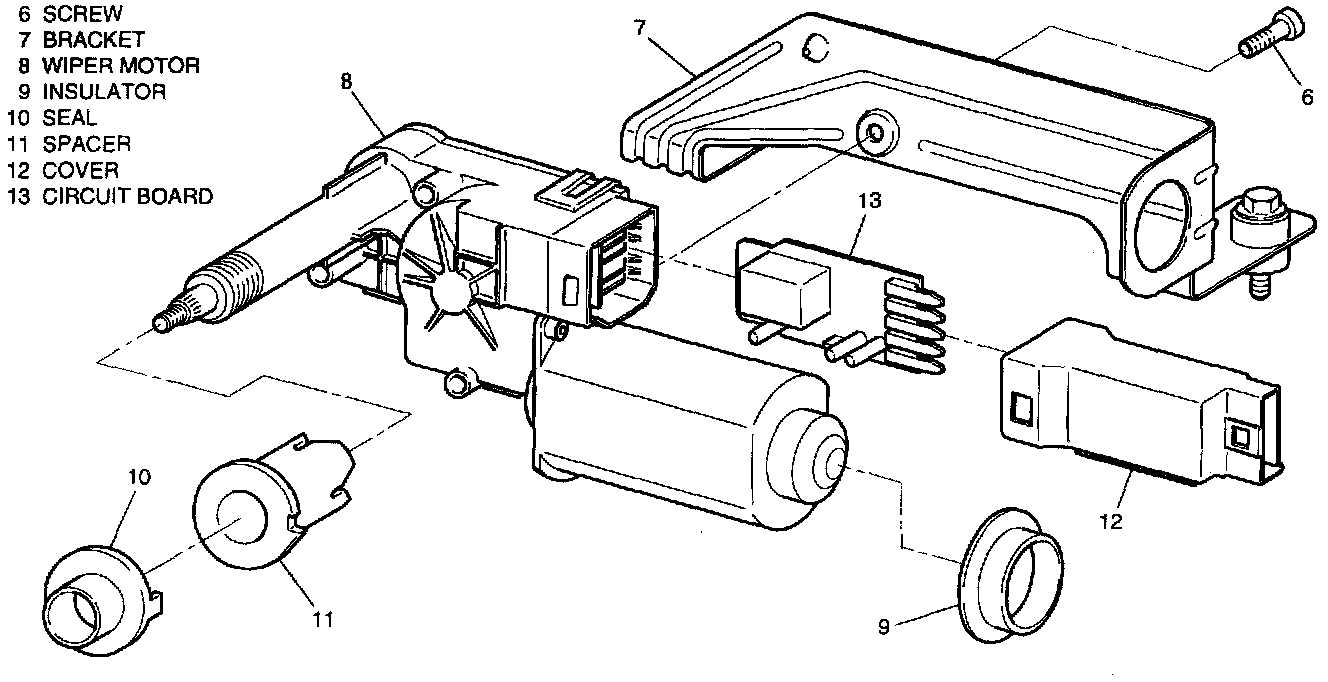

Description:





Remove or Disconnect
1. Wiper motor from endgate.
2. Cover (12) from wiper motor (8).
3. Circuit board (13) from wiper motor (8).

Install or Connect
1. Circuit board (13) on wiper motor (8).
2. Cover (12) on wiper motor (8).
3. Wiper motor on endgate.
