Home >> Chevrolet >> 1997 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

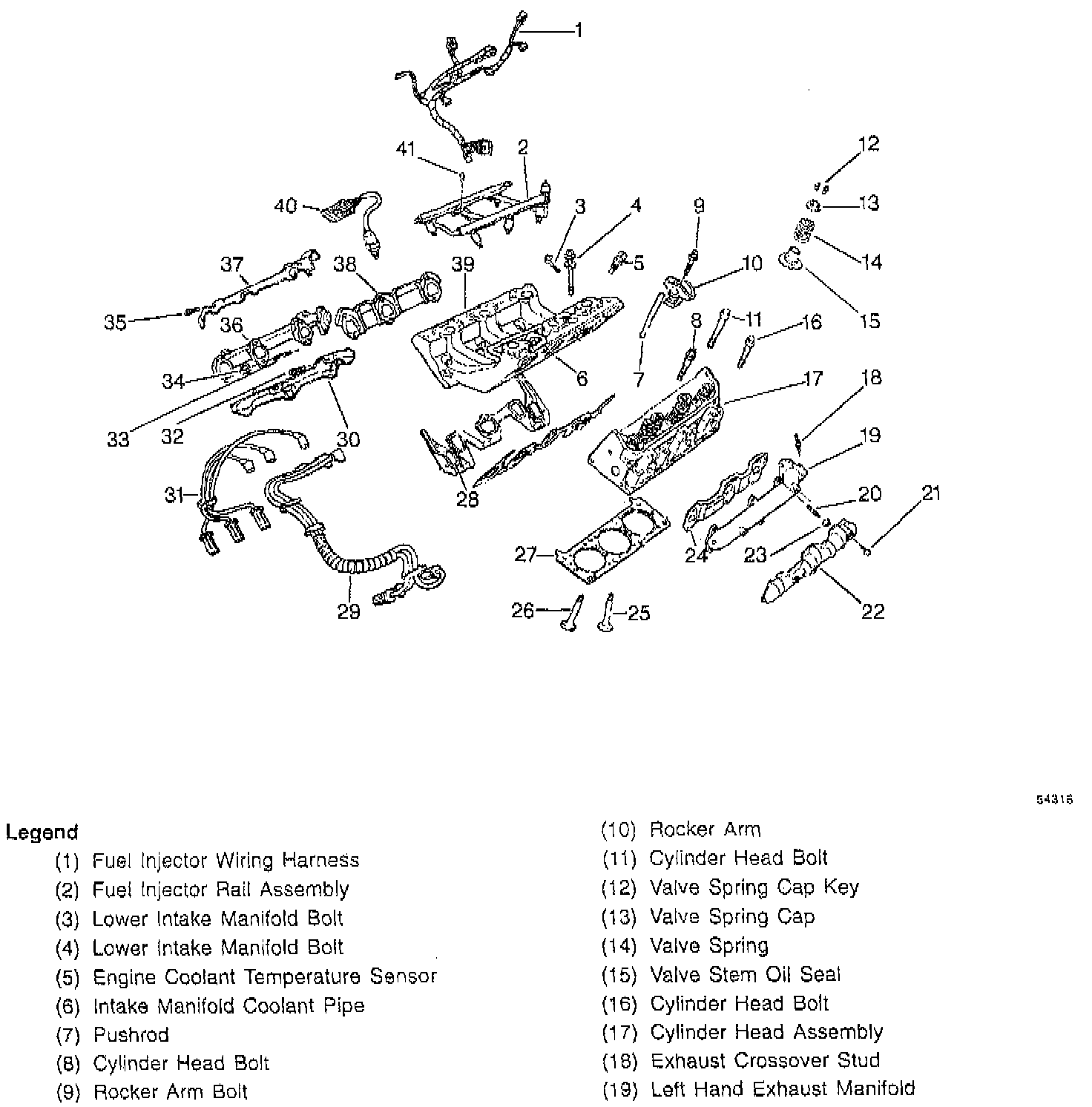

Part 1 Of 2:

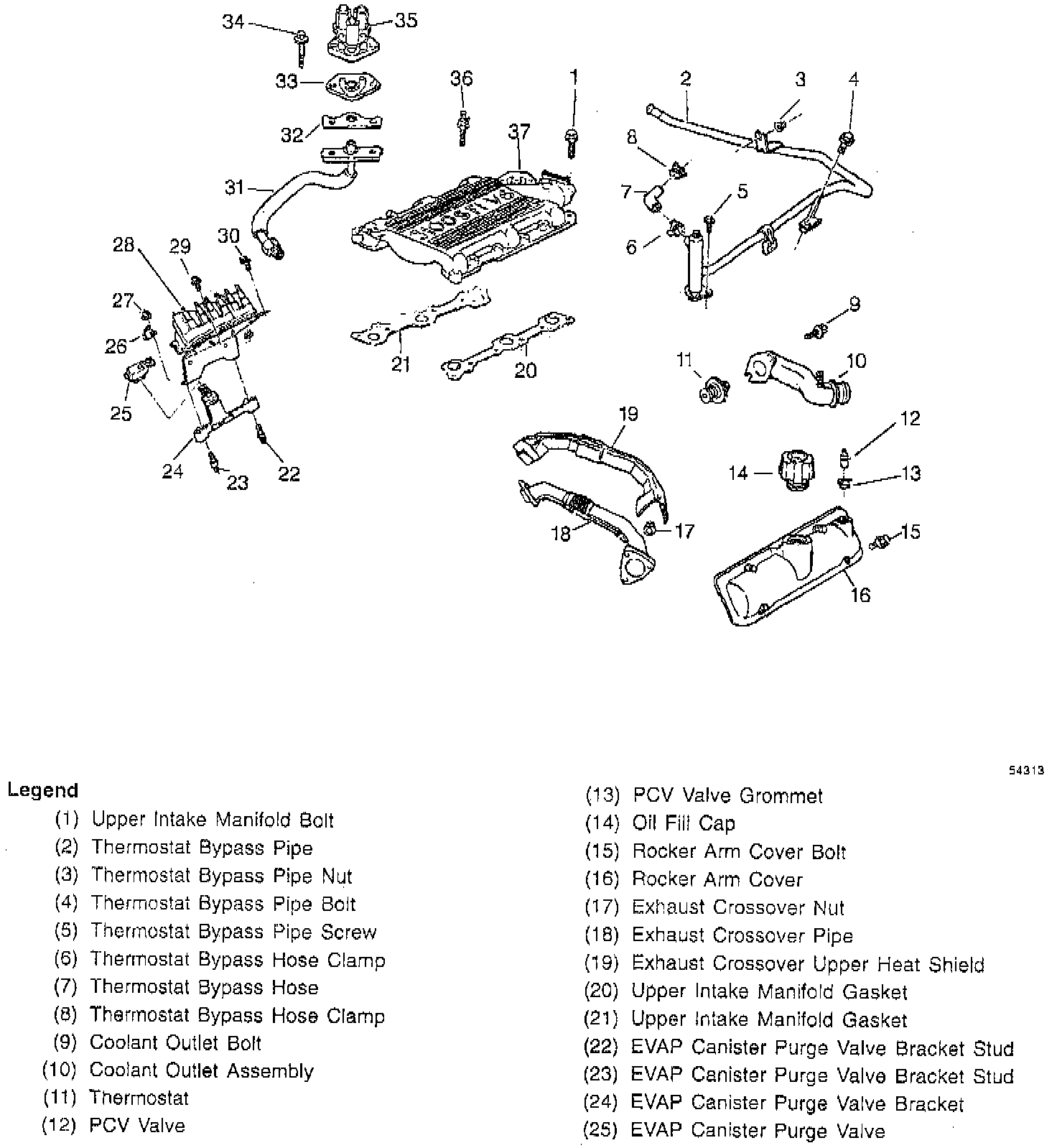

Part 2 Of 2:



Part 1 Of 2:



Part 2 Of 2:
