Home >> Chevrolet >> 1997 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Control Valve Assembly - B

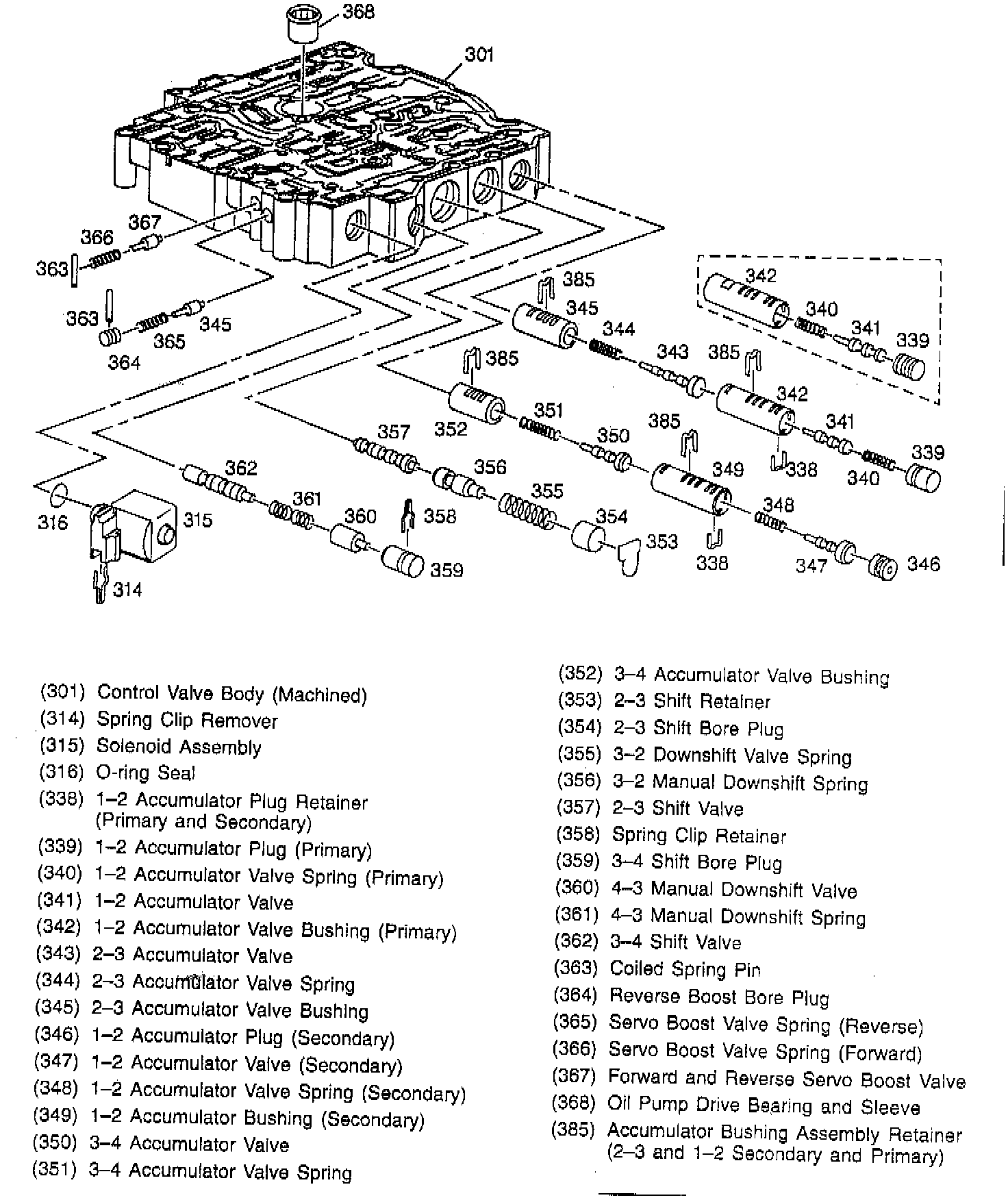

Control Valve Assembly - B
