Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Electronic Accessory Plug

Electronic Accessory Plug

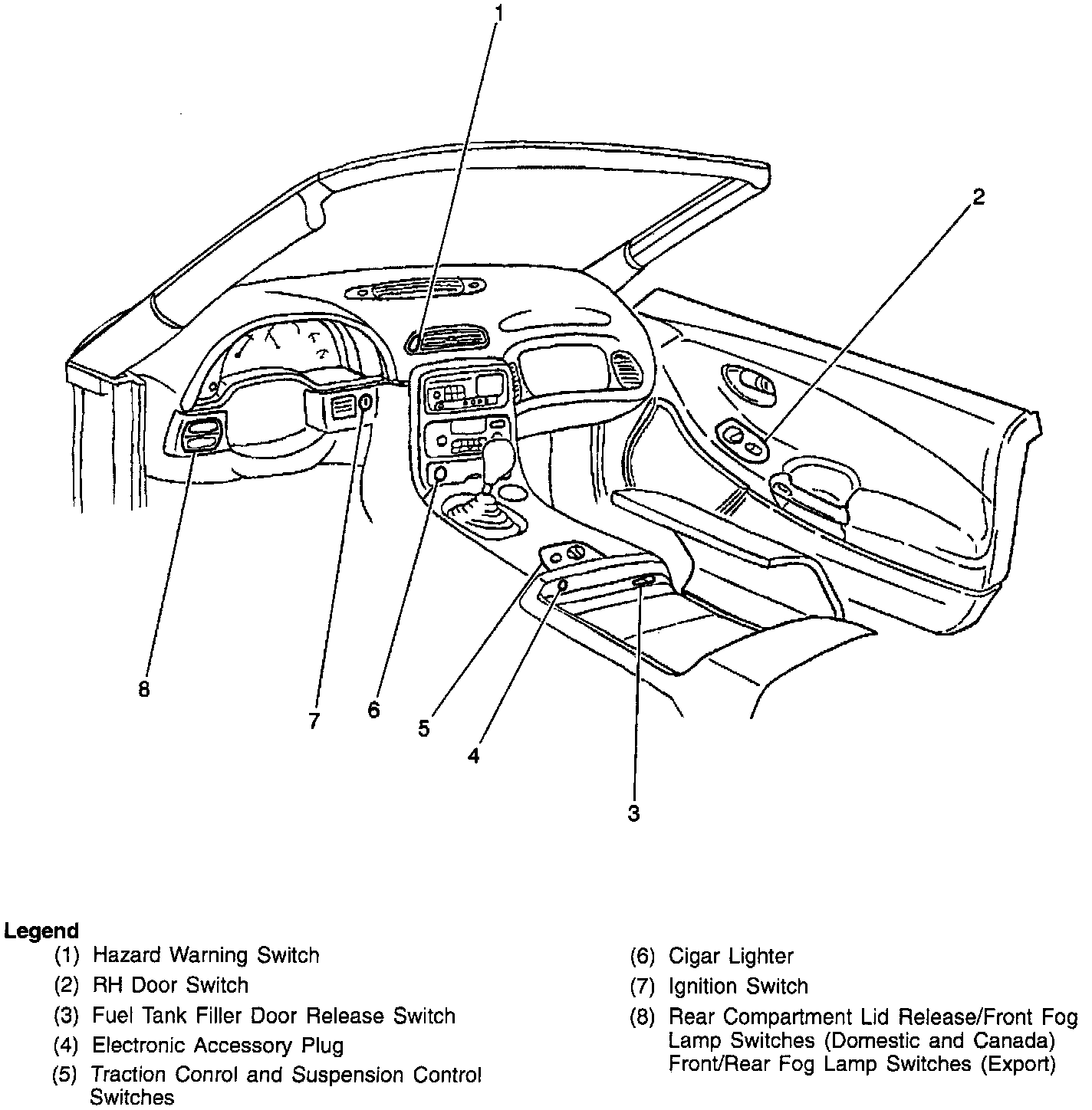

Inside The Vehicle, Instrument Panel, Center Console And RH Door:
