Turn Signal Lamp (LF - Export)
Turn Signal Lamp (LF - Export)

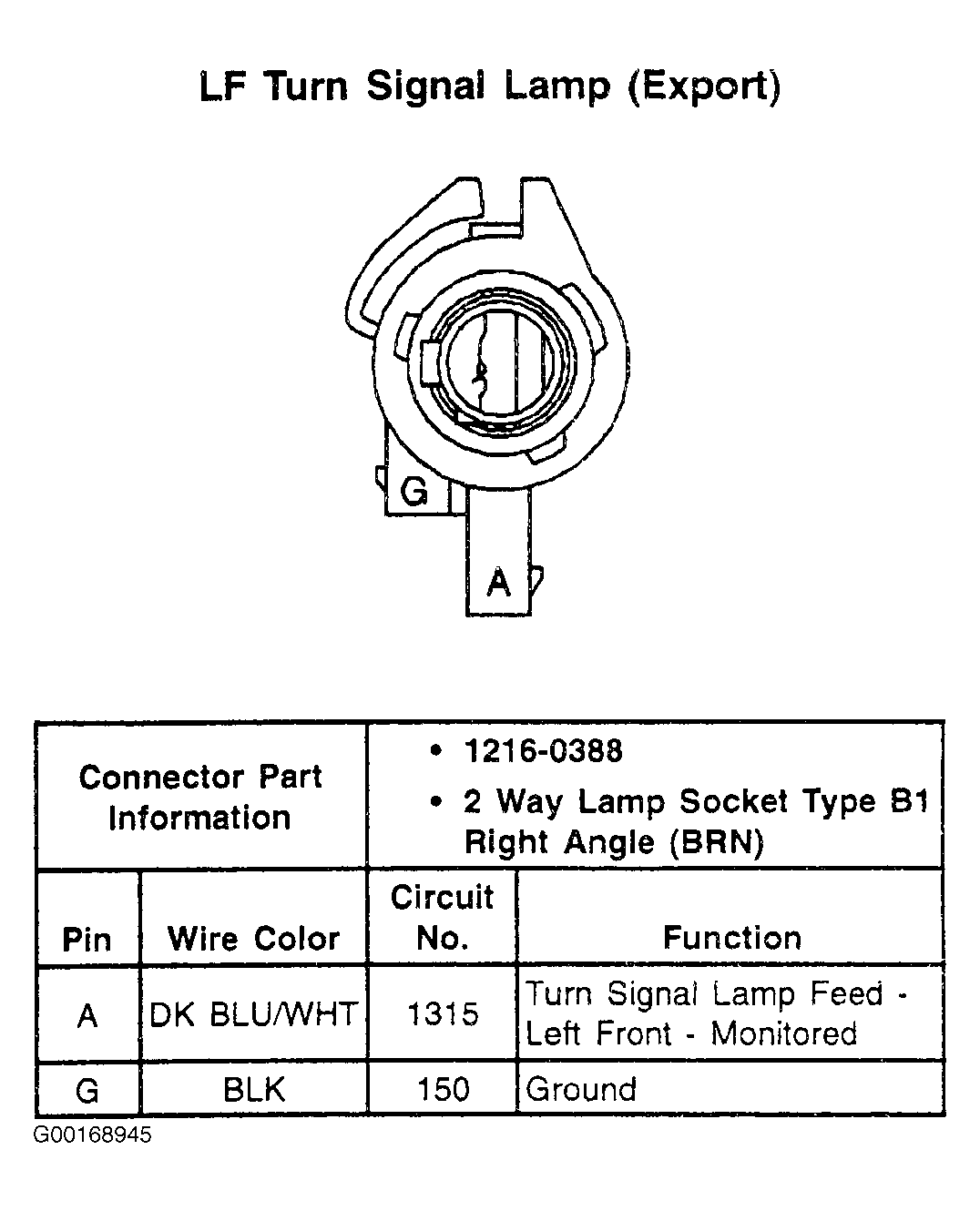

Fig 1: Turn Signal Lamp (LF - Export) - 2-Pin Connector (Brown)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
