Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Switch

Turn Signal Switch

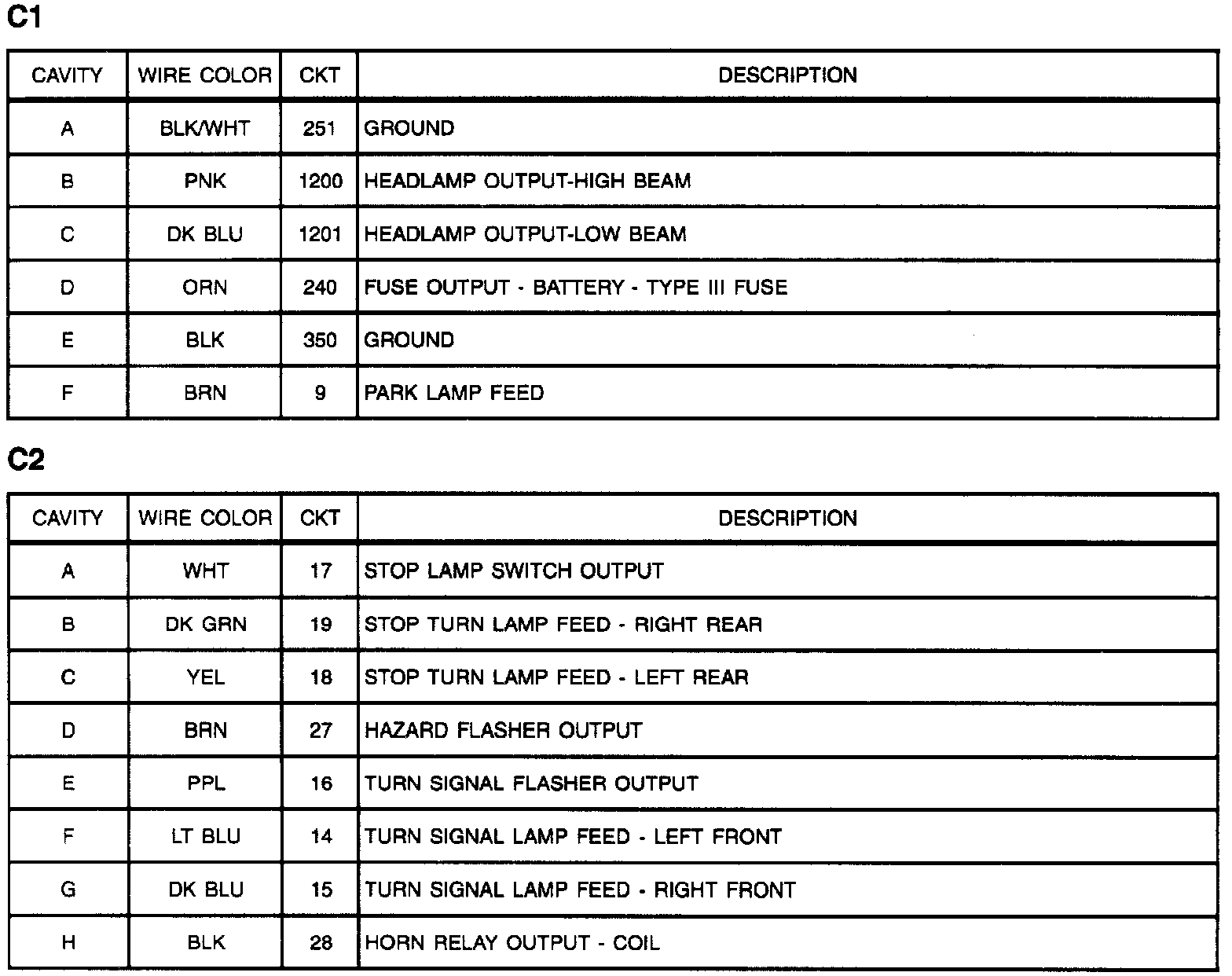

Turn/Hazard - Headlamp Switch Assembly: C1 And C2:



Turn/Hazard - Headlamp Switch Assembly: C1 And C2:
